Cisco ASA 5512-X, ASA 5515-X, ASA 5525-X, ASA 5545-X, and ASA 5555-X Quick Start Guide
4. Modify the Initial Configuration for the ASA FirePOWER Module (Optional)
Cisco ASA 5512-X, ASA 5515-X, ASA 5525-X, ASA 5545-X, and ASA 5555-X Quick Start Guide
7
a. Cable Management 0/0 (for the ASA FirePOWER module) directly to one of: GigabitEthernet 0/1 through GigabitEthernet
0/5 (through 0/7 for the ASA 5525-X, 5545-X, and 5555-X).
Note: You can connect inside and management on the same network because the management interface acts like a separate
device that belongs only to the ASA FirePOWER module.
b. Cable your computer to one of: GigabitEthernet 0/1 through GigabitEthernet 0/5 (through 0/7 for the ASA 5525-X, 5545-X,
and 5555-X).
c. Cable GigabitEthernet 0/0 (outside) to your WAN device, for example, your cable modem.
Note: If the cable modem supplies an outside IP address that is on 192.168.1.0/24 or 192.168.10.0/24, then you must change
the ASA configuration to use a different IP address. Interface IP addresses, HTTPS (ASDM) access, and DHCP server settings
can all be changed using the Startup Wizard. If you change the IP address to which you are connected to ASDM, you will be
disconnected when you finish the wizard. You must reconnect to the new IP address.
ASA 9.6 and Earlier

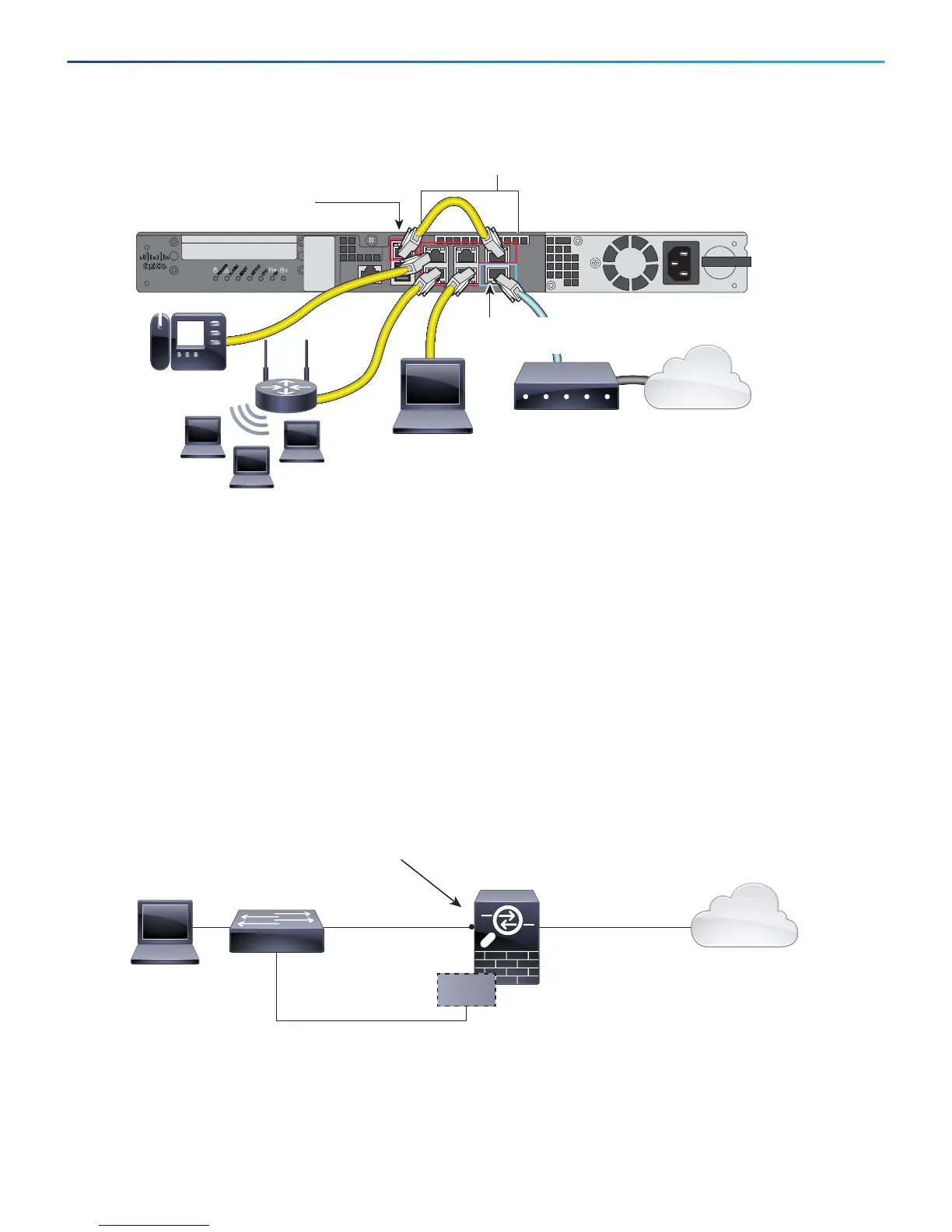

The following figure shows the suggested network deployment for the ASA 5500-X with the ASA FirePOWER module:
WAN Modem
GigabitEthernet 0/1-0/5 Bridge Group
inside, 192.168.1.1
Internet
Management Computer
DHCP from inside: 192.168.1.x
GigabitEthernet 0/0
outside, DHCP from Modem
Management 0/0
192.168.1.2
(FirePOWER management)
Management PC
Layer 2
Switch
ASA
inside
Management 0/0
No ASA IP address
Module IP address: 192.168.1.2
outside
Module Default Gateway
GigabitEthernet 0/1
192.168.1.1
GigabitEthernet 0/0
Module
Internet
