Step 4 Install your SIMs as shown in the following figure. Make note of the slot number and SIM orientation.

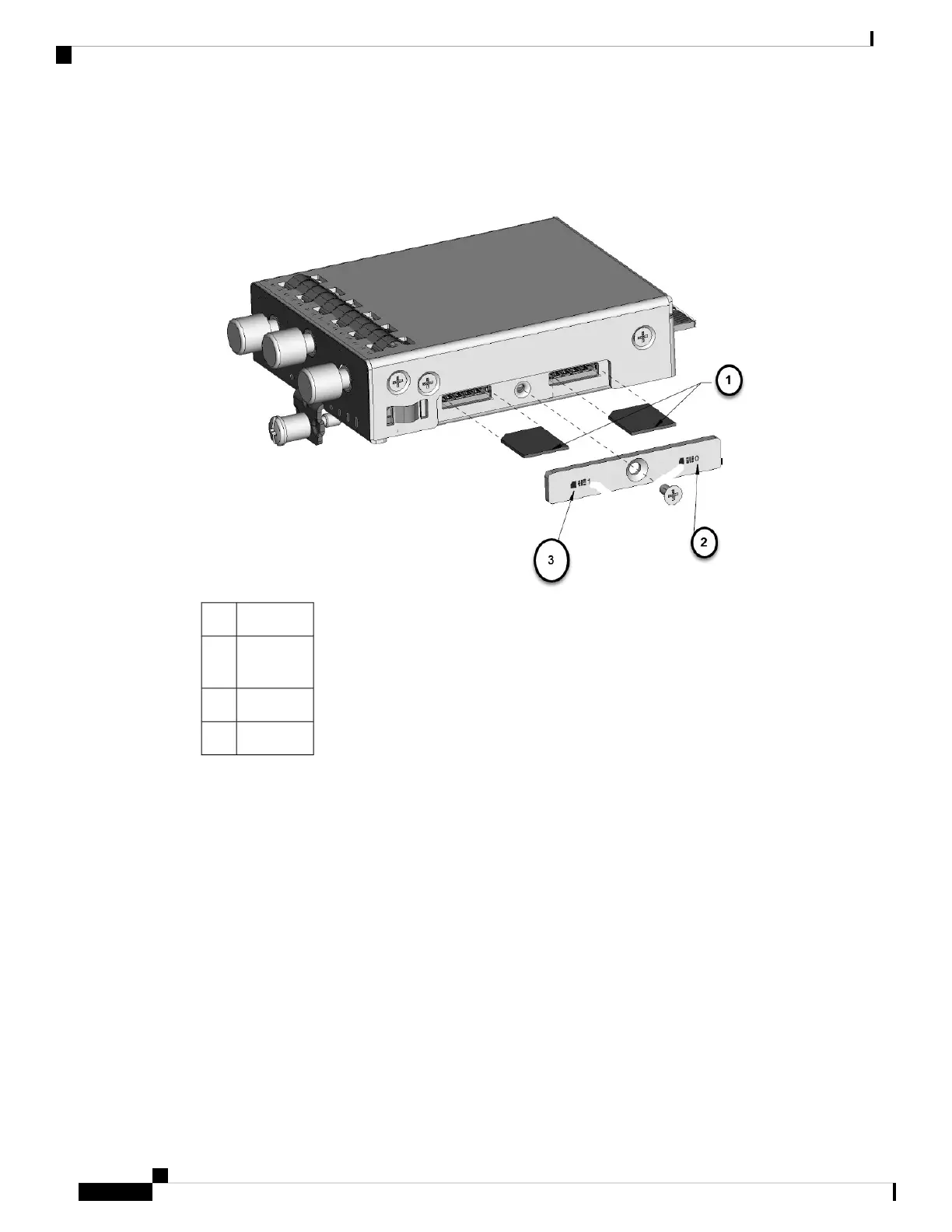

Figure 15: SIM Installation
DescriptionItem
Micro
SIMs
1
SIM 02
SIM 13
Step 5 Push each SIM until it clicks into place. After the SIMs are installed, reattach the access plate that you
previously removedearlier using a screwdriver. Torque to 2.8 to 3.8 inch-lbs (0.9-1.1 Newton meter).
Ensure that the cover is properly aligned with the screw hole.
Note
Step 6 If your pluggable module is the type that has a USB port, make sure that the USB cover is properly installed.
Place the USB cover (1) with the plug indentation against the USB port (2), as shown in the following figure.
The half circle of the USB cover fits behind the latch lock screw.
Cisco Catalyst IR1800 Rugged Series Router Hardware Installation Guide
48
