The following are the different types of OBD-II cables depending on the model of vehicle you are installing the
router in.
Table 13: OBD-II Cable Descriptions
OBD-II (J1962) Type A to Router cable with type 1 YOBD2-J1962YA-MF4
OBD-II (J1962) Type B to Router cable with type 2 YOBD2-J1962YB-MF4
OBD-II (J1939) Type 2 heavy duty diagnostic harness
for Volvo
OBD2-J1939Y2-MF4
OBD-II (J1939) Type 1 to Router cable with type 1 YOBD2-J1939Y1-MF4
OBD-II (J1708) to Router cable with type 1 y-splitOBD2-J1708Y-MF4
J1962-VM-Type B Volvo & MackOBD2-J1962VMB-MF4

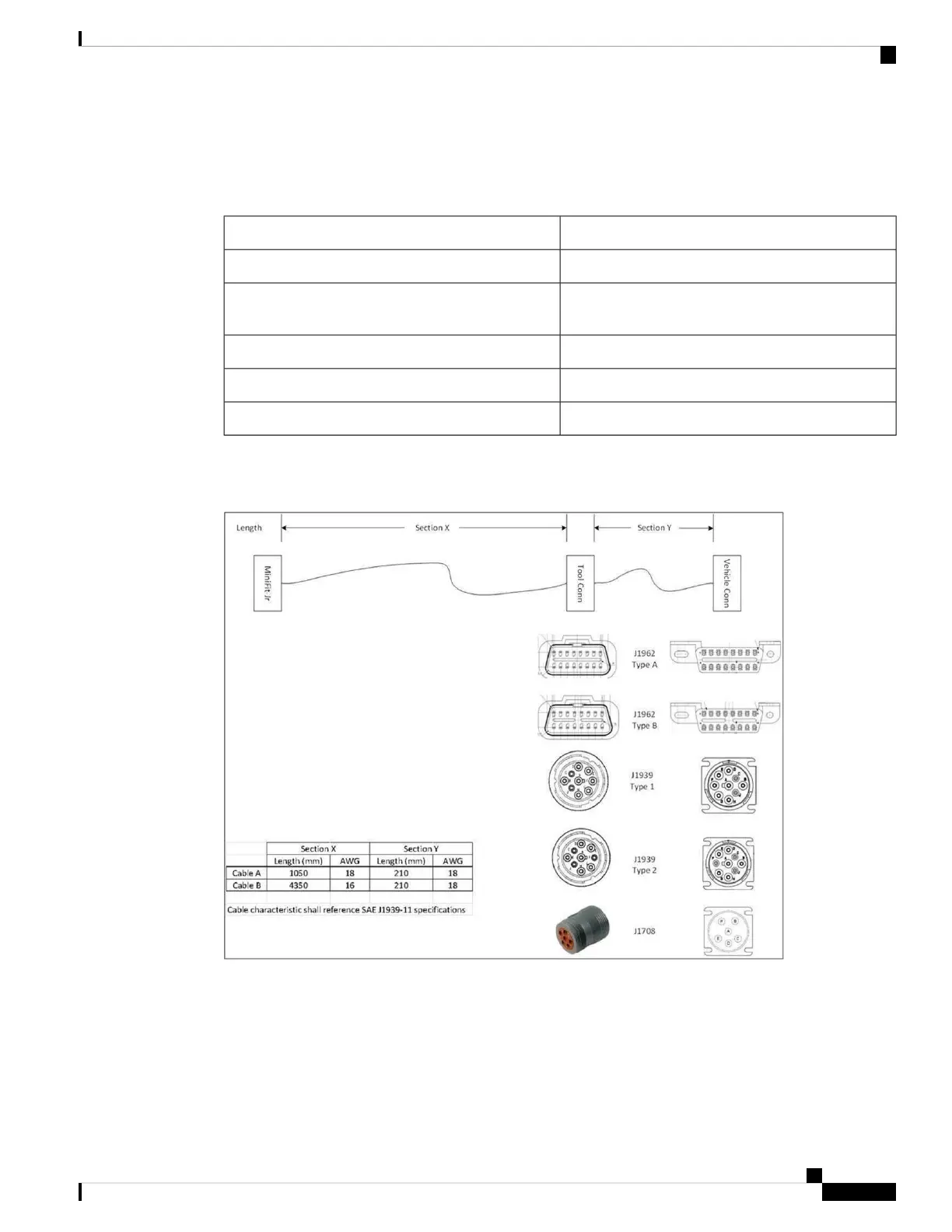

The list of cables is illustrated in the following figure. The box labeled Vehicle Conn is the connector that is
connected to a car or truck. The box labeled Tool Conn isfor attaching diagnostic tool. The box labeled MiniFit-Jr
is the connector that connects to the IR1800.
