Procedure

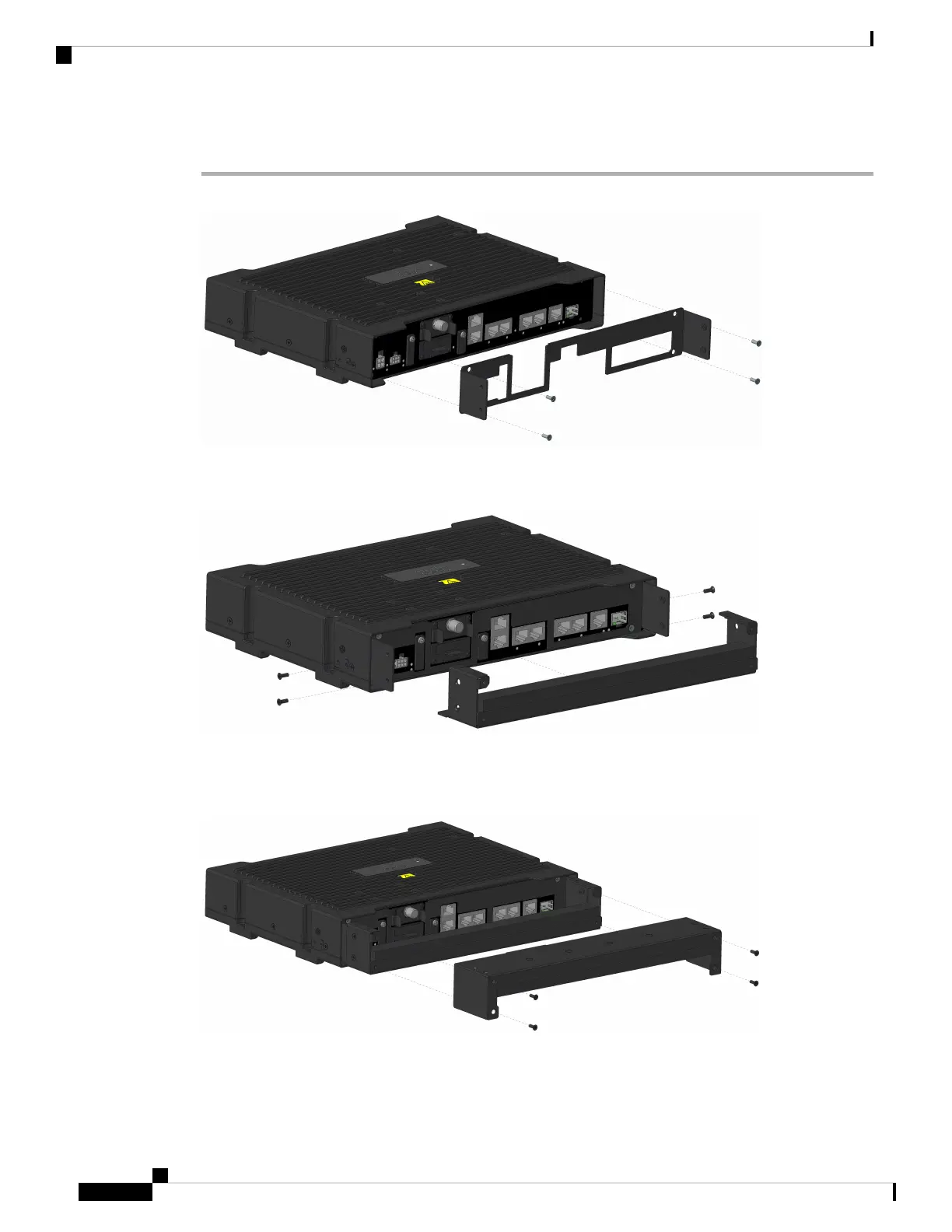

Step 1 Attach the mounting plate to the front of the chassis using four of the provided screws.
Step 2 Tighten the screws to a torque of 5 to 6 in-lbs.
Step 3 Attach the bottom cover to the mounting plate using four of the provided screws.
Step 4 Plug in the power and all other cables after the bottom cover is attached. Drape all the cables over the foam
seat.
Step 5 Attach the top cover to the bottom cover using four of the provided screws.
All the cables should be wedged between the top and bottom foam pieces.
Note
Cisco Catalyst IR1800 Rugged Series Router Hardware Installation Guide
72
Installing the IP54 Kit
Installing the Front Cover
