Solution Overview
All contents are Copyright © 1992–2007 Cisco Systems, Inc. All rights reserved. This document is Cisco Public Information. Page 9 of 18
Product
Number
Primary
Application
Ports,
Connector,
Maximum
Distance,
and Cable
Type
PoE
Support
Maximum
Frame Size
(jumbo
frame)
Support
Queues per
Port (Tx=
Transmit,
Rx =
Receive)
3
Buffer Size
per Port
WS-X6548-
GE-45AF
Premier
wiring closet
48, RJ-45,
100m,
Category 5
cable
Yes (both
IEEE
802.3af and
Cisco
Prestandard)
Up to 1518
bytes per
frame
Tx-1p2q2t
(per 8 ports)
Rx-1p2t (per
port)
1.4 MB per 8
ports
WS-
X6548V-
GE-TX
Premier
wiring closet
48, RJ-45,
100m,
Category 5
cable
Yes, only
Cisco
Prestandard
Up to 1518
bytes per
frame
Tx-1p2q2t
(per 8 ports)
Rx-1p2t (per
port)
1.4 MB per 8
ports
WS-X6516-
GE-TX
Data center
and server
farm
16, RJ-45,
100m,
Category 5
cable
No Up to 9216
bytes per
frame
Tx-1p2q2t
Rx-1p1q4t
512 KB
WS-X6548-
RJ-45
Server Farm 48, RJ-45,
100m,
Category 5
cable
No Up to 9216
bytes per
frame
Tx-1p3q1t
Rx-1p1q
1116KB
WS-X6548-
RJ-21
Server Farm 48, RJ-21,
100m,
Category 5
cable
No Up to 8092
bytes per
frame
Tx-1p3q1t
Rx-1p1q
1116KB

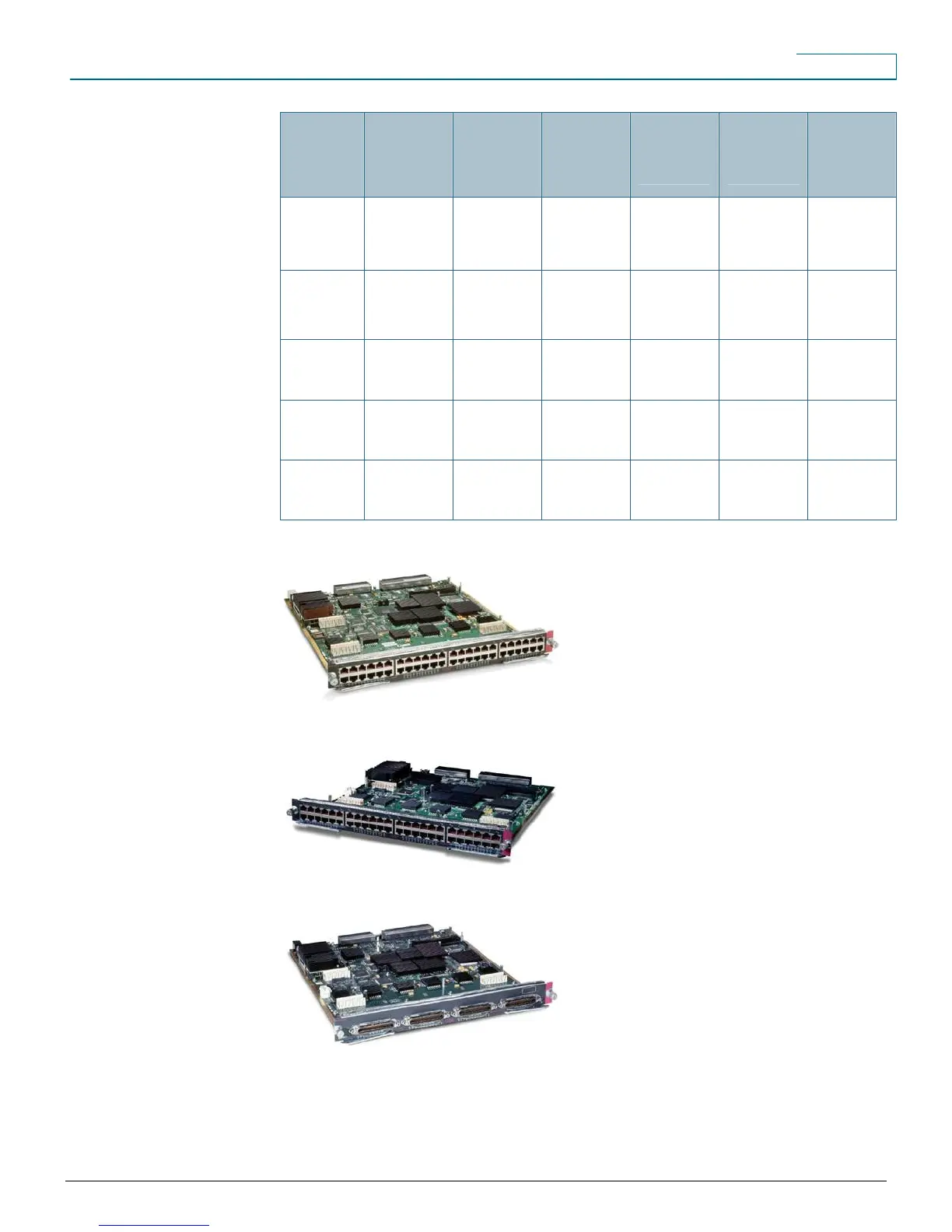

Figure 2. Cisco Express Forwarding 256 10100/1000 Interface Module (part number WS-X6548-GE-TX)
Figure 3. Cisco Express Forwarding 256 Copper 10/100 Interface Module (part number WS-X6548-RJ-45)
Figure 4. Cisco Express Forwarding 256 Copper 10/100 Interface Module (part number WS-X6548-RJ-21)
