Cisco CHS 335HDC - Connecting to an HDTV with a DVI Connector

15

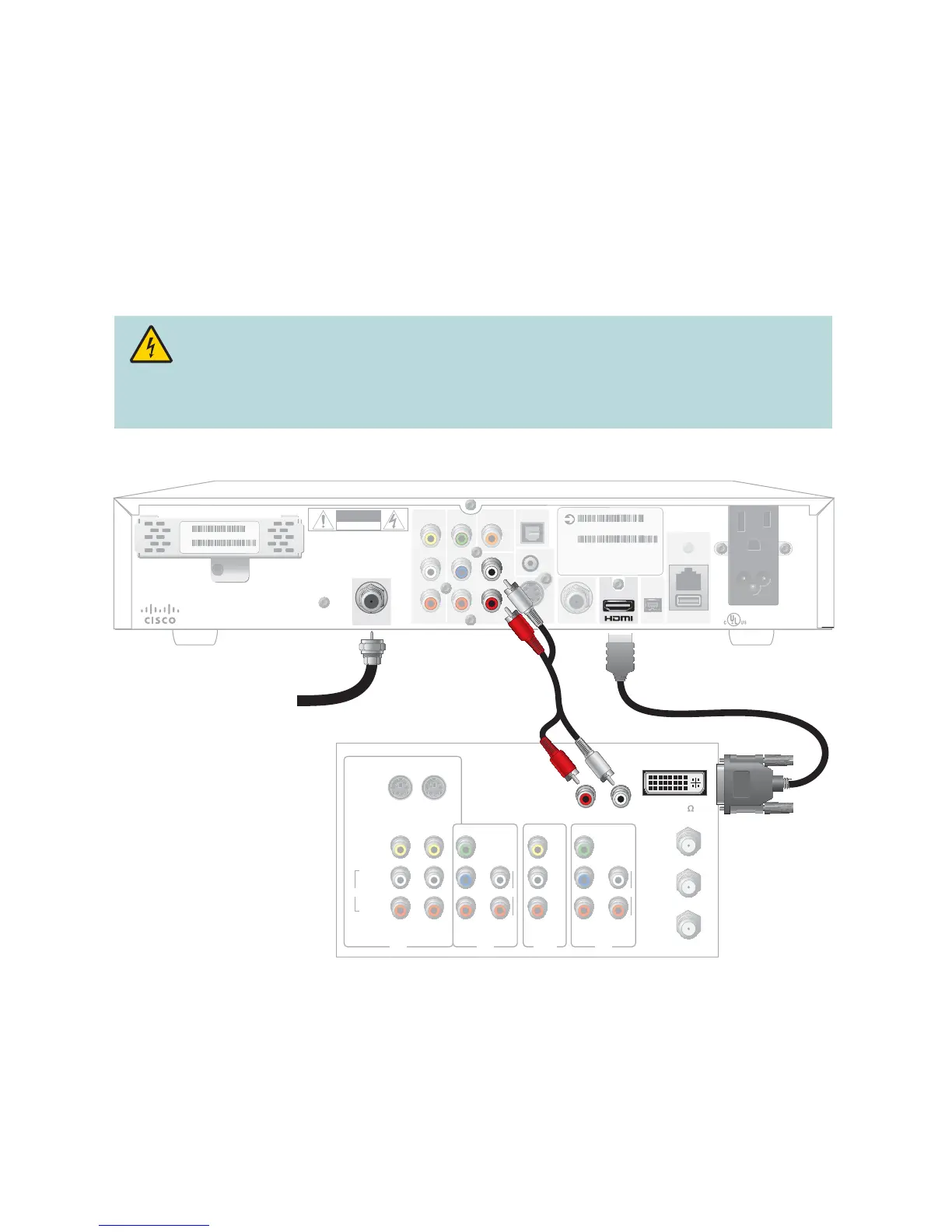

Connecting to an HDTV with a DVI Connector
Cables Used in this Confi guration
• 1 Coaxial Cable
• 1 HDMI-to-DVI Cable or 1 HDMI Cable and 1 HDMI-to-DVI Adapter
• 1 Audio Left/Right Cable
Notes:
• The DVI port on the TV must support high-bandwidth digital content protection (HDCP).
• When you connect the HDMI connector to the DVI connector on your HDTV, you need an
HDMI-to-DVI adapter and a separate audio connection.
WARNING:
Electric shock hazard! Unplug all electronic devices before connecting or
disconnecting any device cables to the set-top.
Back of
HDTV
ANT (75 )
INOUT
LR
ANT-1
HD 2
Y
OUT
ANT-2
PB
PR
L
R
VIDEO
L/
MONO
R
L/
MONO
R
AUDIO
IN
ON OFF
S-VIDEO
VIDEO
AUDIO
IN
HD 2
Y
Pb
Pr
L
R
AUDIO
AUDIO CENTER
CHANNEL IN
AUDIO IN
DVI/HDCP
DVI/HDCP
IN
T14412
RF TV Out
Optical
Audio
Pr R
Pb
L
Y
HDTV
Audio
R
L
Video
SD
Audio
S-Video
1394
Firewire
CHS 335HDC
This device is intended to be attached
to a receiver that is not used to receive
over-the-air-broadcast signals.
Connections of this device in any other
fashion may cause harmful interference
to radio communications and is in
violation of the FCC rules, part 15.
120V~
60Hz 40W
120 V ~
60Hz 4.2A
500W
CATV Converter
Made in Mexico
LISTED 36MW
VIDEO PRODUCT
FiOS TV In
MCARD SN: PXCPRPSLV
MCARD MAC: 00 1BD73E17D9
CableCARD
STB RF MAC: 001CEA0B782C
S T B S N : S A B Q T MN WW
1394
Firewire
RF TV Out
Optical
Audio
IR Remote Input
Digital
Audio
Pr R
Pb
L
Y
HDTV
Audio
R
L
Video
SD
Audio
S-Video
Ethernet
USB
CUIDADO: RIESGO DE DESCARGA ELÉCTRICA
NO ABRIR
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
R
L
HDTV
Audio
FiOS TV
Input
