Installing the CTX2500 Card in the Cisco ONS 15310-MA
78-17333-01
Install the CTX2500 Cards
Note If protective clips are installed on the backplane connectors of the cards, remove the clips before
installing the cards.
Step 1 Install a CTX2500 card in Slot 3 or 4 (Figure 2):
a. Open the card ejector.
b. Use the ejector at the top of the card and firmly slide the card along the guide rails until the card
plugs into the receptacle at the back of the slot.
c. Verify that the card is inserted correctly and close the ejector on the card.
Note The CTX2500 cards are hot-pluggable, so they can be inserted or removed without turning off
the power to the ONS 15310-MA.

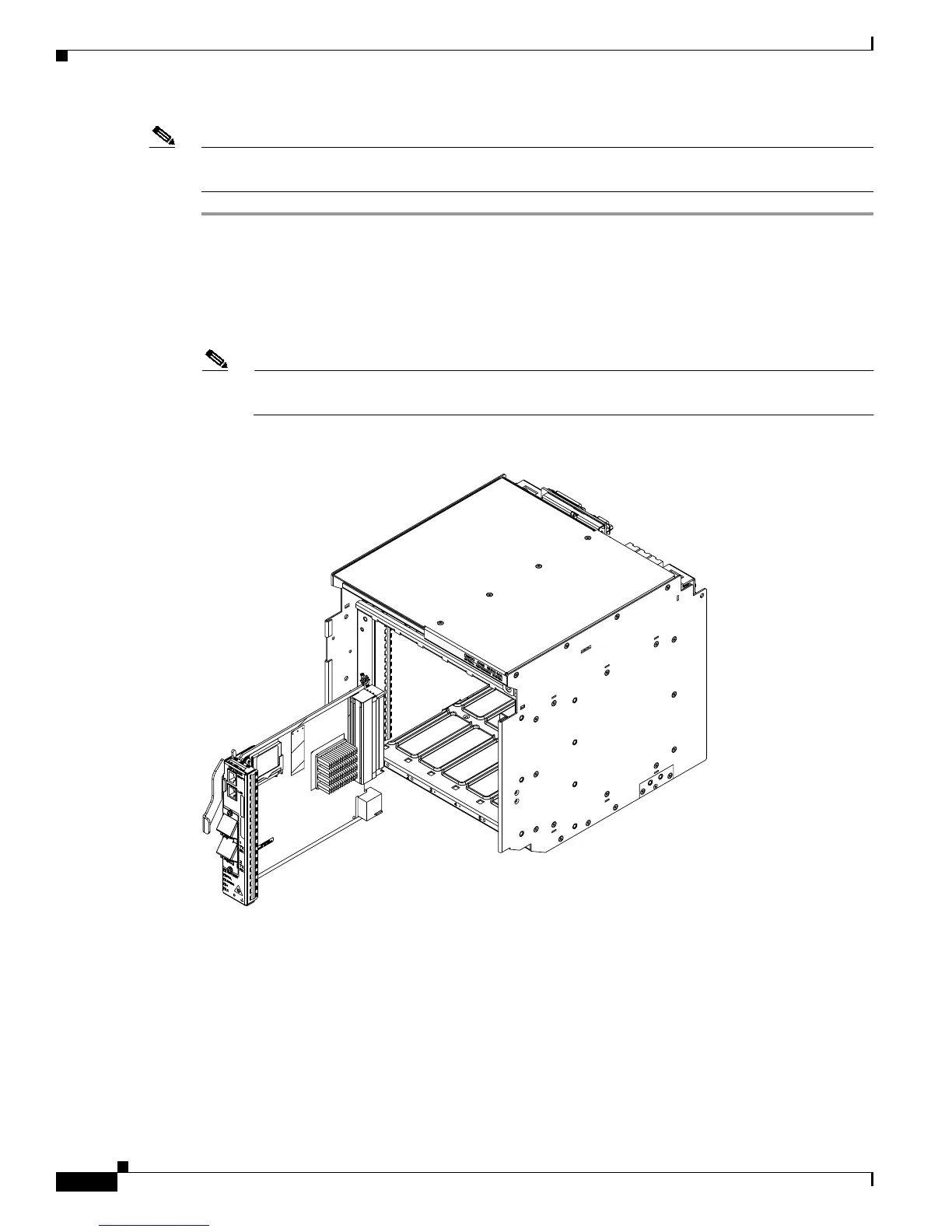

Figure 2 Installing a CTX2500 Card in ONS 15310-MA
Step 2 Verify the CTX2500 card LED activity:
a. The red FAIL LED turns on for 30 to 45 seconds. It then turns off for 5 seconds, and turns back on
for 30 seconds.
b. The red FAIL LED blinks for 20 seconds, and turns off for 5 seconds.
c. All LEDs turn on for 2 seconds.
144703
