4

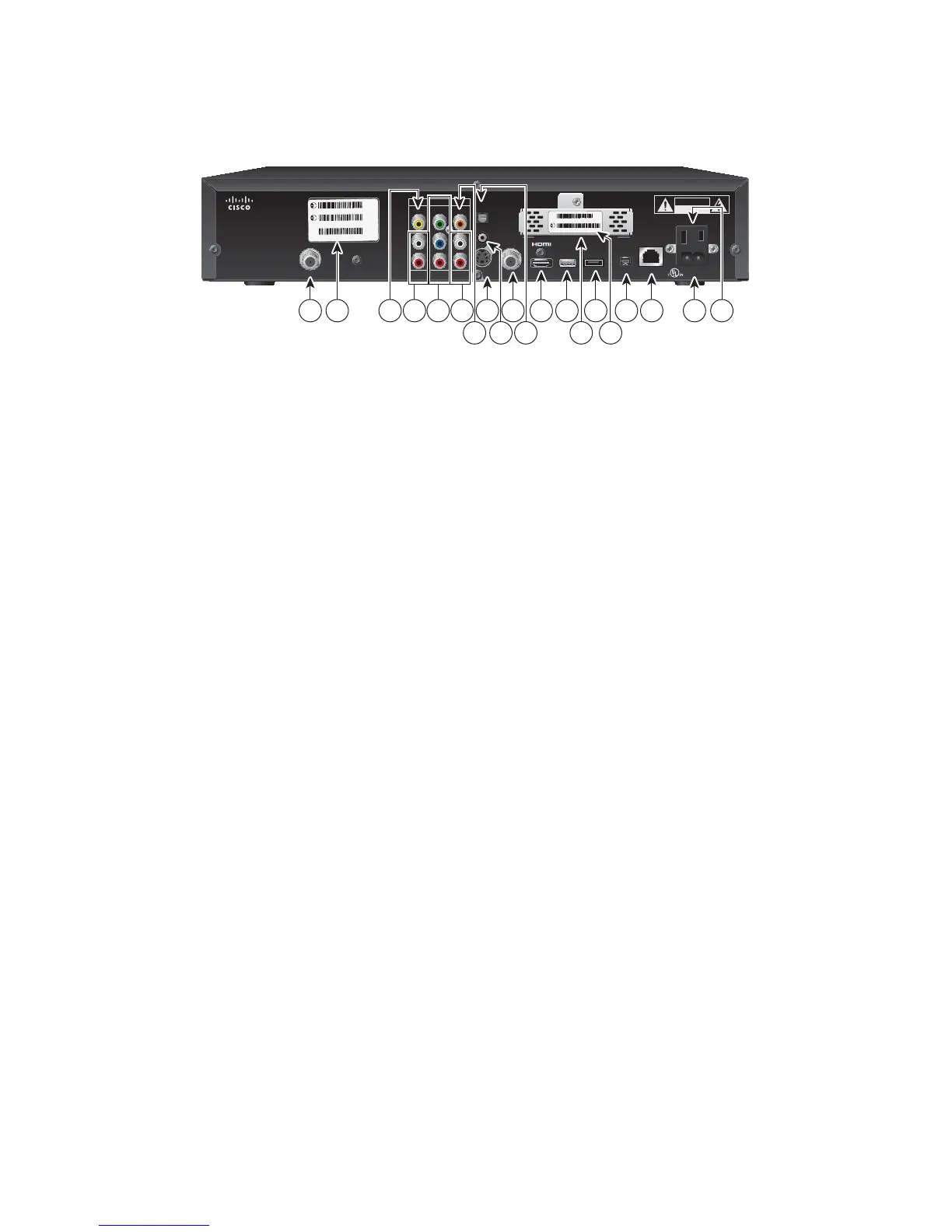

Back Panel
1 Cable In Connects to a coaxial cable that delivers the signal from your service provider
2 Bar Code Label Contains set-top serial number and MAC address
3 Video Out Connects to the composite input on your TV
4 Audio Out Connects to RCA cables that send analog audio signals (left and right) to the stereo inputs
on a TV
5 HDTV (YPbPr) Connects to the component input (YPbPr) on the HDTV
6 Audio Out Connects to RCA cables that send analog audio signals (left and right) to the stereo inputs
on a TV
7 Digital Audio Connects to an RCA cable that sends a digital audio signal to a surround-sound receiver or
Out other digital audio device input
8 S-Video Out Connects to an S-Video cable that sends an S-Video signal to your TV or VCR. This signal
is standard-de nition, but higher quality than other SDTV connections
9 IR Remote Input Available to be connected to an approved remote IR receiver (purchased separately)
10 Cable Out Connects to a coaxial cable that sends analog audio and video signals to a TV or VCR
11 Optical Audio Connects to an optical cable that sends a digital audio signal to a surround-sound receiver
Out or other digital audio device input
12 HDMI Connects an HDMI™ cable to the HDMI input of an HDTV. HDMI supports both digital audio
and video. May be used to connect to a DVI interface using an HDMI-to-DVI adapter for
video and separate audio connections. Any of the following audio connections may be
used: Audio Out (4 or 6); Digital Audio Out (7); or Optical Audio Out (11)
13 USB 2.0 Connects to external USB equipment approved by your service provider, software
controlled
14 Multi-Stream Slot for M-Card module, which decrypts subscription digital channels. This set-top will not
CableCARD operate correctly without an M-Card module which is installed by your service provider
15 eSATA Connects to an external Serial ATA (eSATA) hard disk drive for expanded drive space. A
connected eSATA drive is not an archival device. Ask your service provider for a list of
approved hard drive models for use with the DVR
16 M-Card Label Contains M-Card serial number and MAC address
17 1394 Connects to display devices that are equipped with a 1394 input
18 Ethernet Connects to external Ethernet equipment approved by your service provider
19 AC Power Input Connects to the power cord to deliver power to the set-top
20 AC Outlet Connects to the AC power cord from another device, such as a TV
Note: This illustration may vary from the actual product.
MCARD SN: PXCPRPSLV
MCARD MAC: 00 1BD73E17D9
MULTI-STREAM CABLE CARD
CATV CONVERTER
MADE IN MEXICO
LISTED 14H1
VIDEO PRODUCT
AVI S: RISQUE DE CHOC ÉLECTRIQUE
NE PAS OUVRIR
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
S-VIDEO
OUT
OPTICAL
AUDIO
OUT
IR
DIGITAL
AUDIO
OUTPUT
RPr R
LPb L
YVIDEO
CABLE IN
120V~
60Hz 80W
120 VAC
60Hz 4.2A
500W
CABLE OUT
USB 2.0 eSATA
THIS DEVICE IS INTENDED TO BE ATTACHED
TO A RECEIVER THAT IS NOT USED TO
RECEIVE OVER-THE-AIR BROADCAST
SIGNALS. CONNECTION OF THIS DEVICE
IN ANY OTHER FASHION MAY CAUSE
HARMFUL INTERFERENCE TO RADIO
COMMUNICATIONS AND IS IN VIOLATION
OF THE FCC RULES, PART 15.
SCIENTIFIC-ATLANTA, INC.
eCM MAC: 001AC3F4F757
STB RF MAC: 001AC3F$F756
STB SN: SABPQBQGD
ETHERNET1394
MULTI-STREAM CABLE CARD
MCARD SN: PXCPRPSLV
MCARD MAC: 00 1BD73E17D9
T15394
1 2 4 5
9 16
12 13 15 17 18 193 6
7 11 14
208 10
