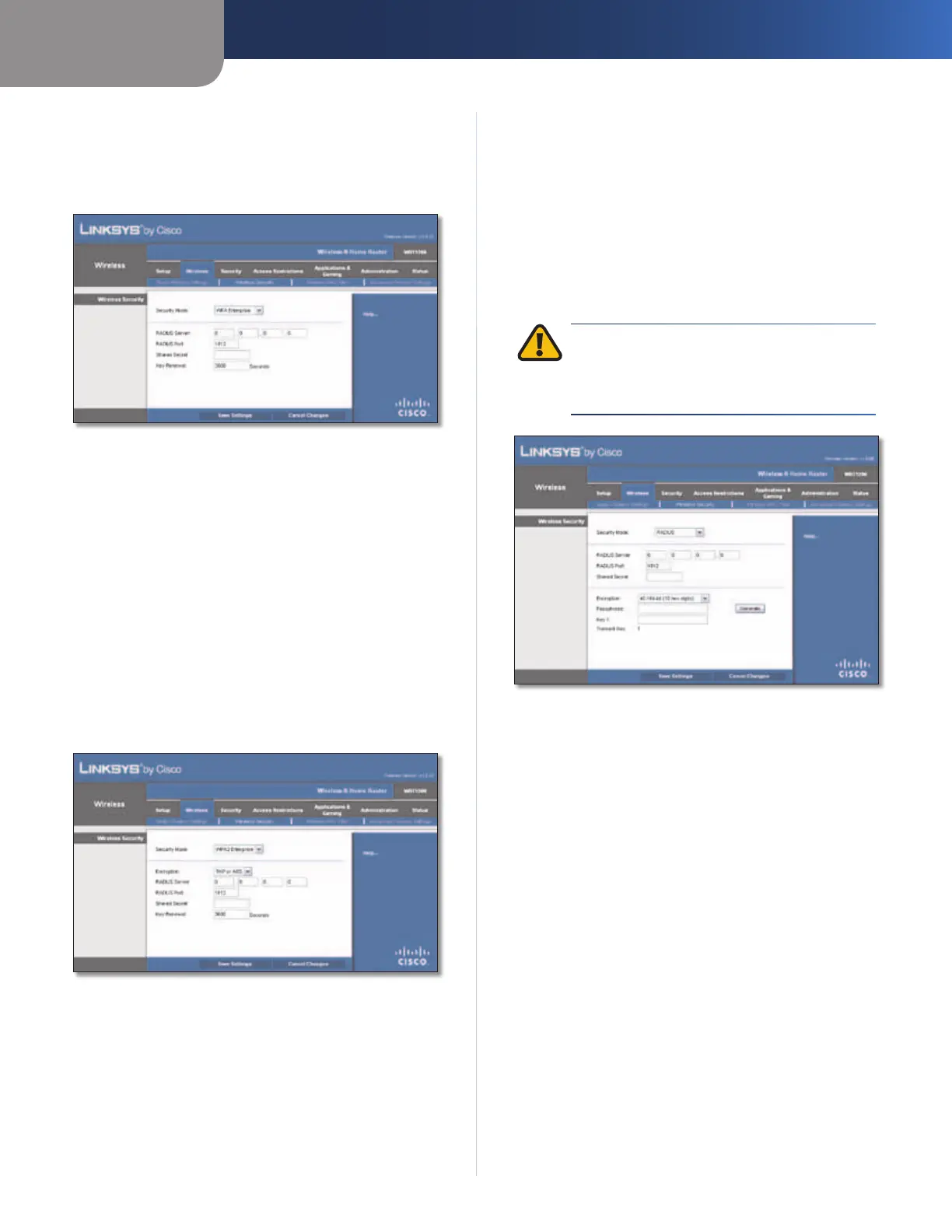

Cisco Linksys WRT120N User Manual

Chapter 3
Advanced Configuration
13
Wireless-N Home Router
WPA Enterprise
This option features WPA used with a RADIUS server. (This
should only be used when a RADIUS server is connected
to the Router.)
Security Mode > WPA Enterprise
RADIUS Server Enter the IP address of the server.
RADIUS Port Enter the port number of the server. The
default is 1812.
Shared Secret Enter the key shared between the Router
and the server.
Key Renewal Enter a Key Renewal period, which instructs
the Router how often it should change the encryption
keys. The default is 3600 seconds.
WPA2 Enterprise
This option features WPA2 used with a RADIUS server. (This
should only be used when a RADIUS server is connected
to the Router.)
Security Mode > WPA2 Enterprise
Encryption WPA2 supports two encryption methods,
TKIP and AES, with dynamic encryption keys. Select the
type of algorithm, AES or TKIP or AES. The default is TKIP
or AES.
RADIUS Server Enter the IP address of the server.
RADIUS Port Enter the port number of the server. The
default is 1812.
Shared Secret Enter the key shared between the Router
and the server.
Key Renewal Enter a Key Renewal period, which instructs
the Router how often it should change the encryption
keys. The default is 3600 seconds.
RADIUS
This option features WEP used with a RADIUS server. (This
should only be used when a RADIUS server is connected
to the Router.)
IMPORTANT: If you are using WEP, then each
device in your wireless network MUST use the
same WEP encryption method and key, or else
the network will not function properly.
Security Mode > RADIUS
RADIUS Server Enter the IP address of the server.
RADIUS Port Enter the port number of the server. The
default is 1812.
Shared Secret Enter the key shared between the Router
and the server.
Encryption Select a level of WEP encryption,
40/64 bits (10 hex digits) or 104/128 bits (26 hex digits).
The default is 40/64 bits (10 hex digits).
Passphrase Enter a Passphrase to automatically generate
WEP keys. Then click Generate.
Key 1 If you did not enter a Passphrase, enter the WEP
key manually.
TX Key TX (Transmit) Key 1 is used.

Cisco Linksys WRT120N Specifications

General

Wireless Standard	802.11b/g/n
Frequency Band	2.4 GHz
LAN Ports	4 x 10/100 Mbps
WAN Ports	1 x 10/100 Mbps
Antenna Type	Internal
Wireless Speed	Up to 150 Mbps
Wireless Data Rates	Up to 150 Mbps
Security Features	WPA, WPA2, WEP
Weight	0.6 lbs (272 g)
Antennas	2 internal antennas
