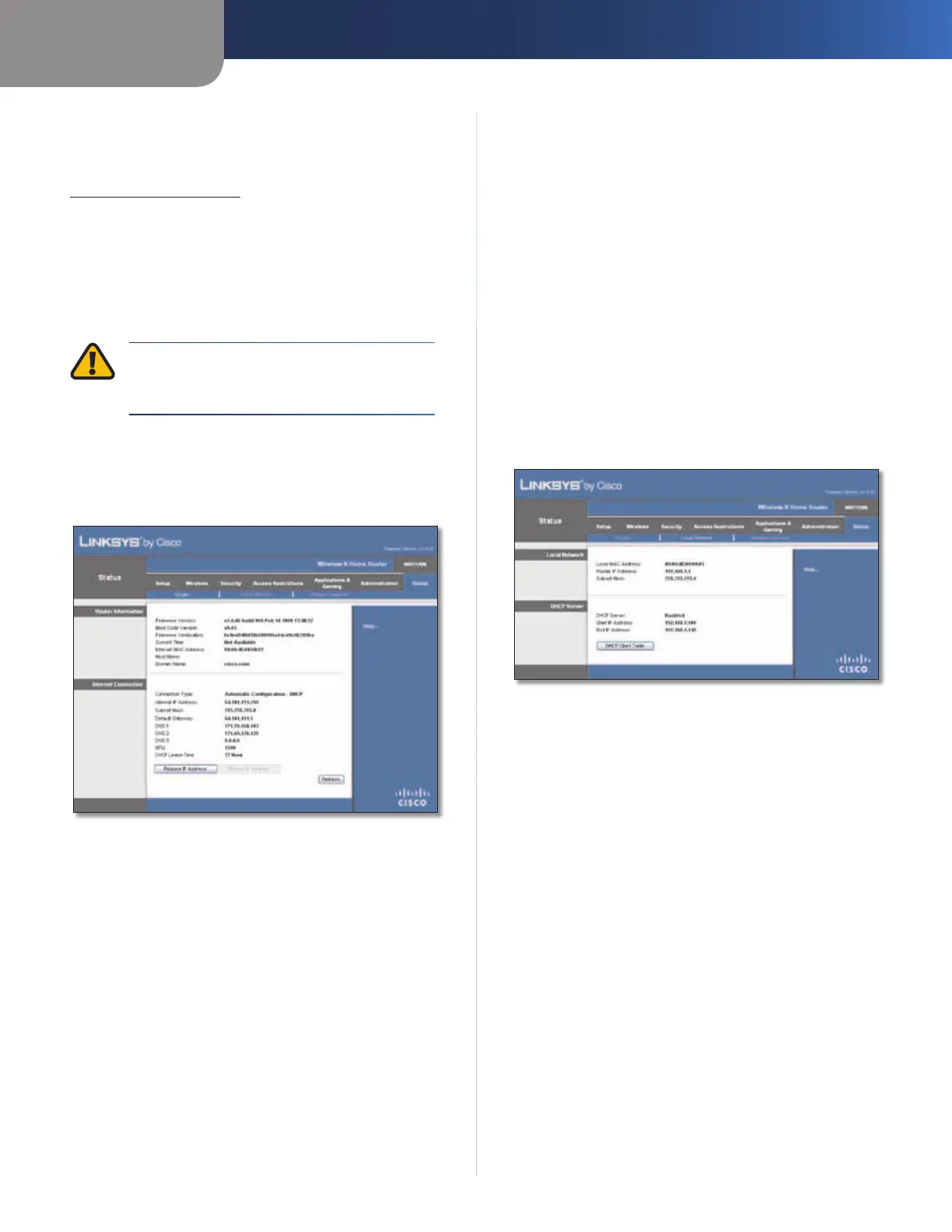

Page #30 background imageLoading...
Page #30 background image
Chapter 3
Advanced Configuration
26
Wireless-N Home Router
Firmware Upgrade
Before upgrading the firmware, download the Router’s
firmware upgrade file from the Linksys website,
www.linksysbycisco.com.
Please select a file to upgrade To select the firmware
upgrade file, click Browse and follow the on-screen
instructions.
Start to Upgrade After you have selected the
appropriate file, click this button, and f
ollow the on-screen
instructions.
WARNING: The firmware upgrade must not
be interrupted; do not reboot or power off the
Router during the firmware upgrade.
Status > Router
The Router screen displays information about the Router
and its current settings.
Status > Router
Router Information
Firmware Version The version number of the Router’s
current firmware is displayed.
Boot Code Version The version number of the Routers
boot code is displayed.
Firmware Verification The unique identifier of the
firmware is displayed.
Current Time The time set on the Router is displayed.
Internet MAC Address The Routers MAC Address, as
seen by your ISP, is displayed.
Host Name The Host Name of the Router is displayed (if it
was entered on the Setup > Basic Setup screen).
Domain Name The Domain Name of the Router is
displayed (if it was entered on the Setup > Basic Setup
screen).
Internet Connection
This section shows the current network information
stored in the Router. The information varies depending on
the Internet connection type selected on the Setup > Basic
Setup screen.
Select Release IP Address or Renew IP Address as
appropriate to release or renew a DHCP lease.
Click Refresh to update the on-screen information.
Status > Local Network
The Local Network screen displays information about the
local, wired network.
Status > Local Network
Local Network
Local MAC Address The MAC address of the Routers
local, wired interface is displayed.
Router IP Address The Routers IP address, as it appears
on your local network, is displayed.
Subnet Mask The Subnet Mask of the Router is
displayed.
DHCP Server
DHCP Server The status of the Routers DHCP server
function is displayed.
Start IP Address For the range of IP addresses that can
be used by devices on your local network, the starting IP
address is displayed.
End IP Address For the range of IP addresses that can
be used by devices on your local network, the ending IP
address is displayed.
DHCP Clients Table Click this button to view a list of
computers or other devices that are using the Router as
a DHCP server.
