74
Appendix C: Configuring IPSec between a Windows 2000 PC and the Router
How to Establish a Secure IPSec Tunnel
Wireless-G VPN Boradband Router
Step 3: Configure Individual Tunnel Rules
Tunnel 1: win->router

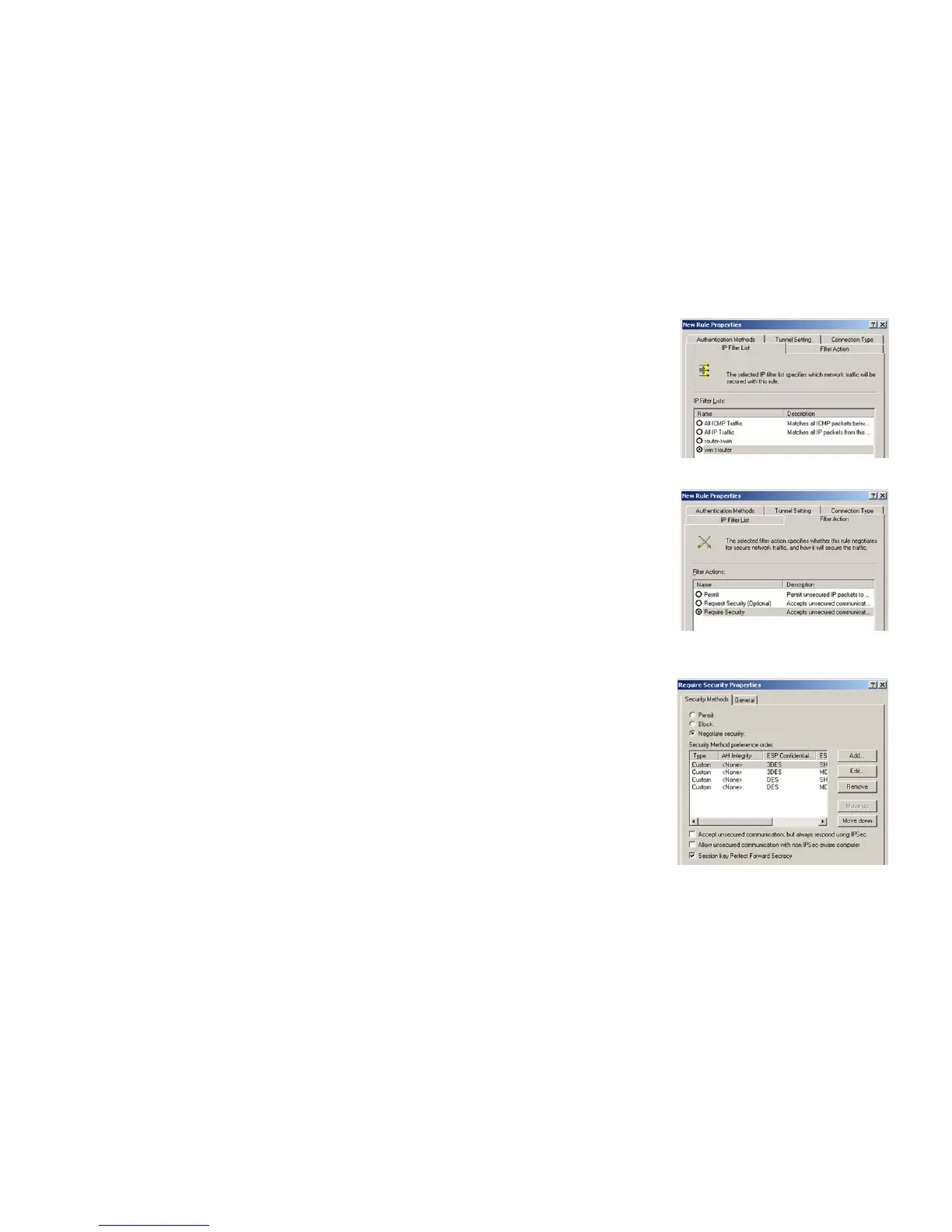

1. From the IP Filter List tab, shown in Figure C-10, click the filter list win->router.
2. Click the Filter Action tab (as in Figure C-11), and click the filter action Require Security radio button. Then,
click the Edit button.
3. From the Security Methods tab, shown in Figure C-12, verify that the Negotiate security option is enabled, and
deselect the Accept unsecured communication, but always respond using IPSec check box. Select
Session key Perfect Forward Secrecy, and click the OK button.
Figure C-12: Security Methods Tab
Figure C-11: Filter Action Tab
Figure C-10: IP Filter List Tab
