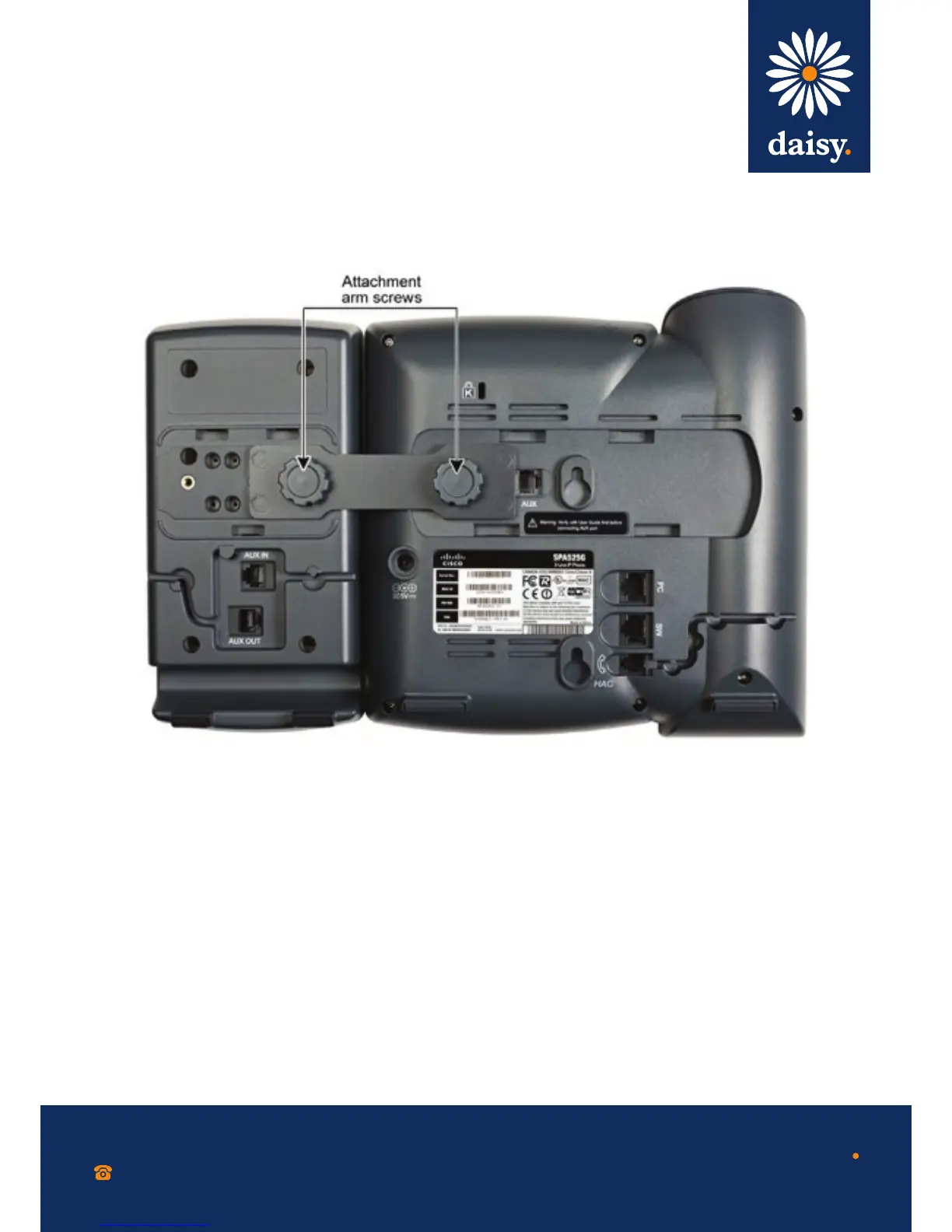

Step 7 Using an attachment arm screw, secure the attachment arm to the Cisco SPA 500S.
Step 8 Locate the ‘AUX IN’ port on the back of the
Cisco SPA 500S. Connect one end of the
auxiliary cable into this port.
Step 9 Locate the ‘AUX’ port on the back of the
Cisco SPA 500 Series IP Phone. Connect
the other end of the auxiliary cable to
this port. The Cisco SPA 500S is powered
by the auxiliary cable with the Cisco SPA
500 Series IP Phone; no additional
power source is required.
CAUTION Do not plug a telephone line cord into the ‘AUX’ port. Use only the auxiliary cable
provided with the Cisco SPA 500S.
