Cisco TelePresence IX5200 Installation Guide

Installing the Lower and Upper Display Frames
© 2015 Cisco Systems, Inc. All rights reserved.
Page 13
7

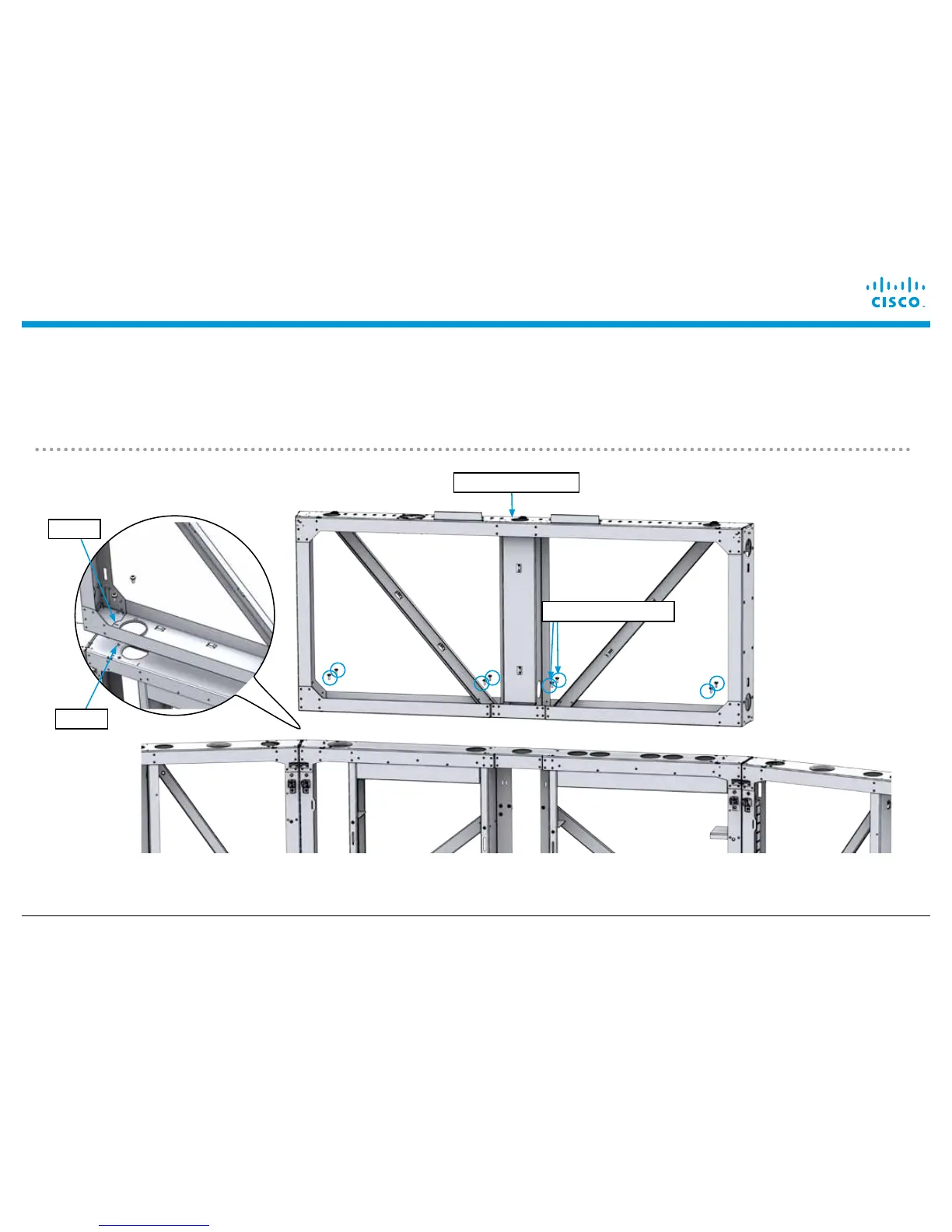

Assemble the upper center frame 800-40948-xx to the lower center frame 800-40920-xx. Align the
pins on the lower frame with the slot and hole on the upper frame (a slot on the left side of the upper
frame, a hole on the right). Install 8x black M8 X 16mm screws 69-2792-xx and tighten with a #3 Phillips
driver.
8x 69-2792-x x
Slot
Pin
800-40948-x x
