Cisco TelePresence IX5200 Installation Guide

Installing the Lower and Upper Display Frames
Page 14
© 2015 Cisco Systems, Inc. All rights reserved.
8a

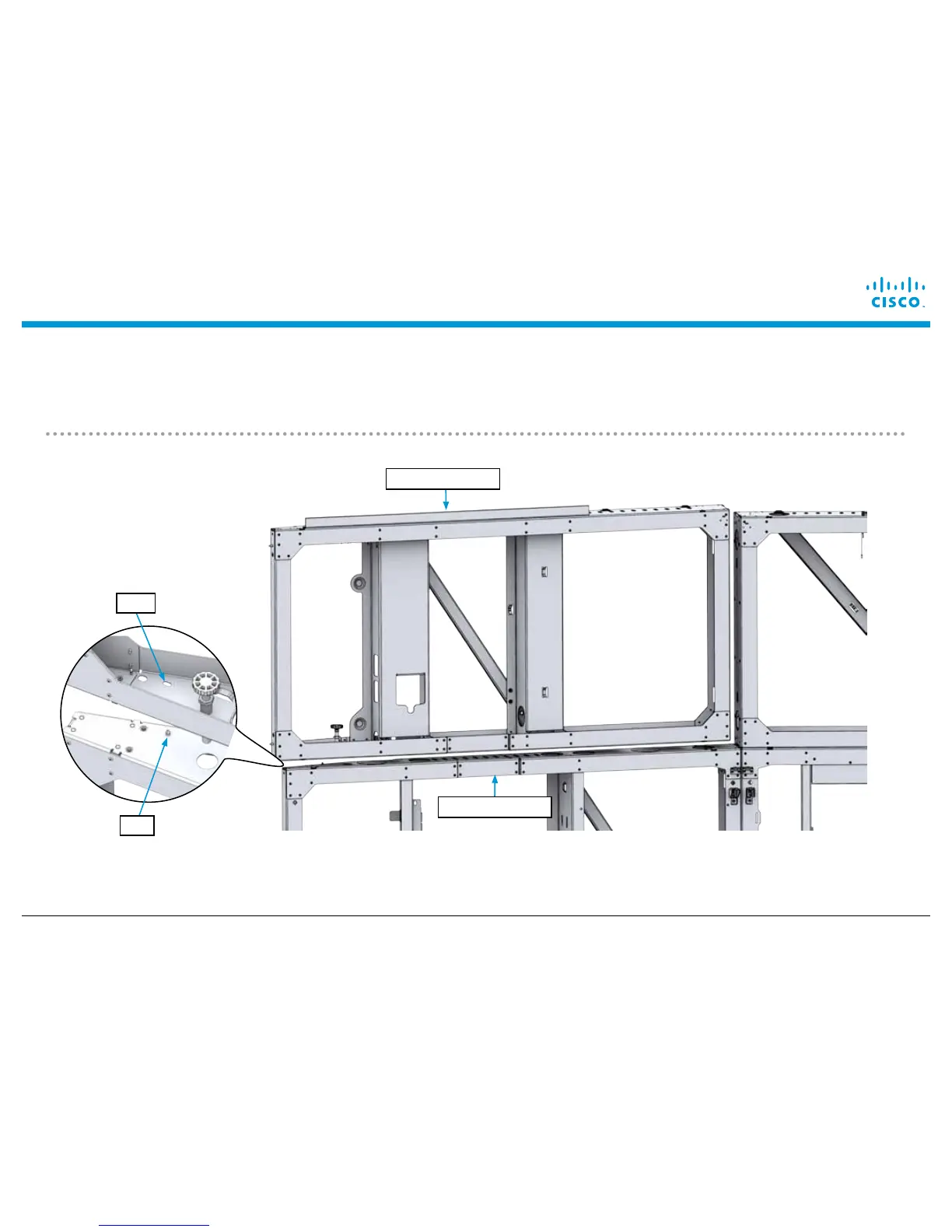

Assemble the upper left frame 800-40934-xx to the display structure. Align the slots and pins in
the vertical beams, then place the upper frame on the lower frame and align the pin and slot in the
horizontal beams.
Pin
Slot
800-40934-xx
800-40923-x x
