7

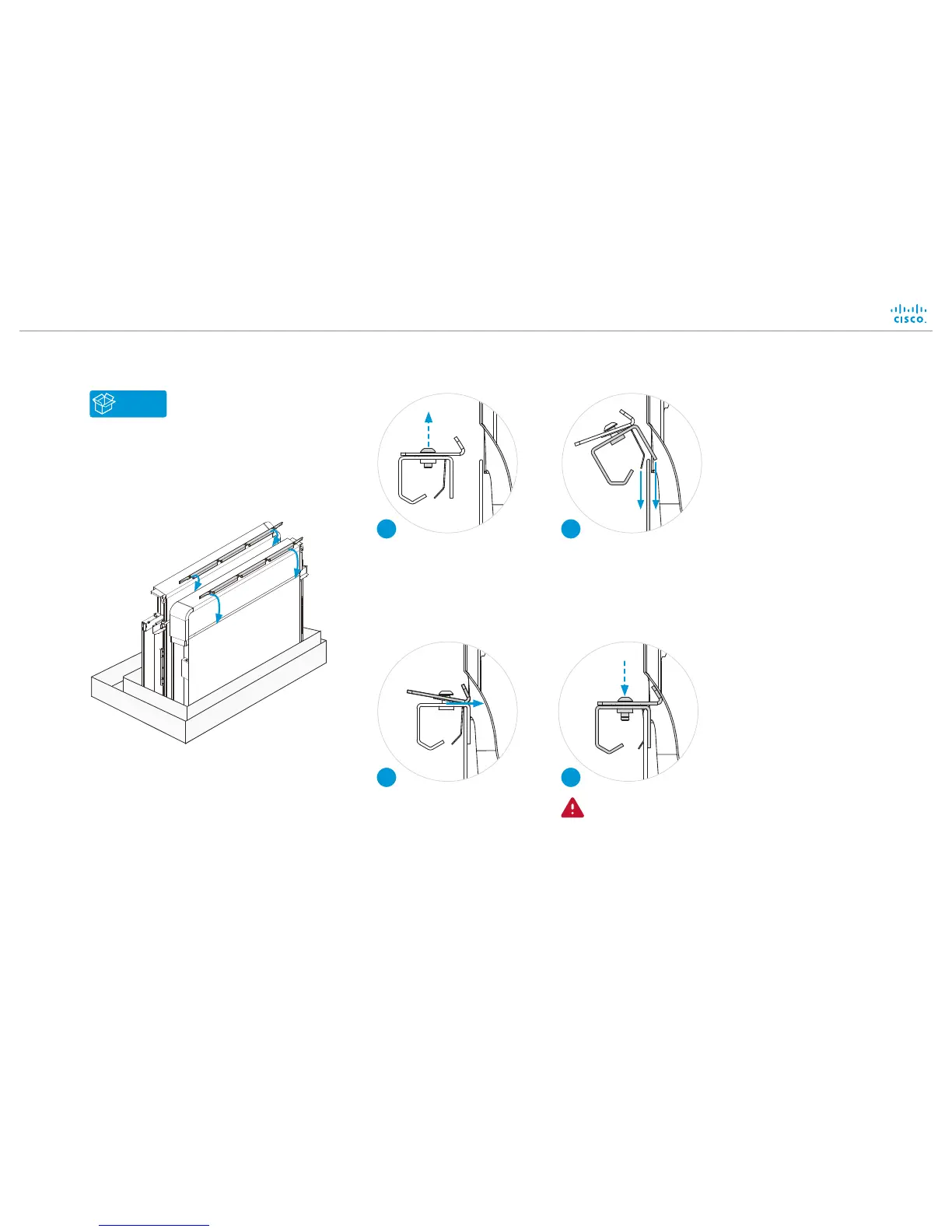

Fasten clamps on monitors
A, D
78-100254-03A0 | 2016 JUNE | © 2016 Cisco Systems, Inc. All rights reserved.
Pag e 11
While the monitors are still in the package,
mount the clamps on the rear side of both
monitors.
Use the Allen key 2.5 mm
and loosen, but do not
remove, the premounted
screws.
1
Push the support bracket
tight against the back plate
of the monitor.
3
Tighten the screws and
check that the clamp is
properly fastened.
4
Slide the clamp in place on
the monitor and make sure
that all the small clamps are
properly fitted.
2
