Mount spacers and top wall brackets
A
78-100254-03A0 | 2016 JUNE | © 2016 Cisco Systems, Inc. All rights reserved.
Installation guide for Cisco TelePresence MX700 Single camera - Wall mount
Page 9

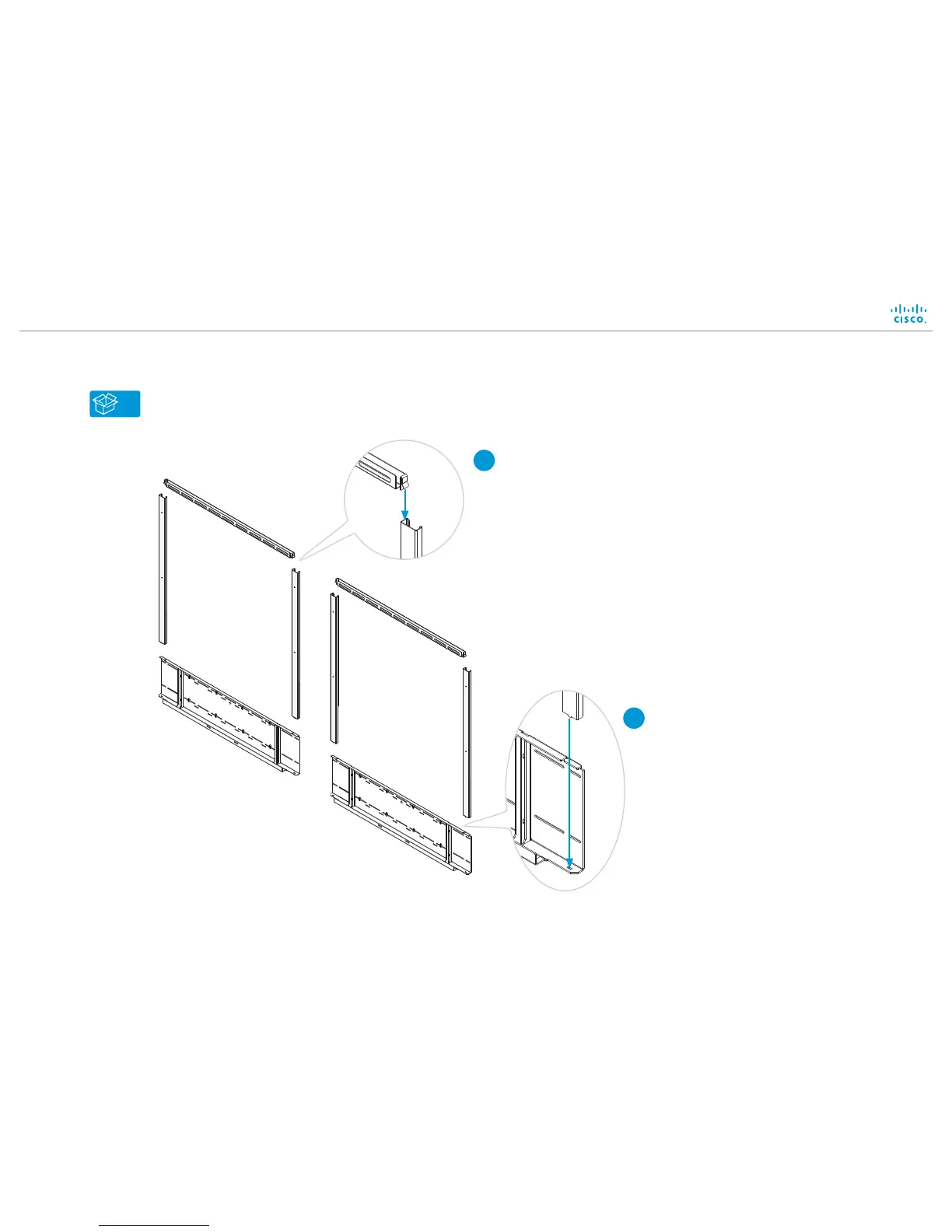

Snap the top wall brackets onto
the spacers. Face the narrow slots
against the wall.
Fasten the top wall brackets in a secure
manner ensuring that the wall’s structure
is sufficient to support the system
(screws and mounting hardware not
provided; not shown in illustration).
2
1
Mount spacers onto the
wall brackets.
Fasten each spacer with
two screws (not provided;
not shown in illustration).
