78-20385-01 SX20 Quick Set Installation Sheet | 2011 DECEMBER | © 2011 Cisco Systems, Inc. All rights reserved.
Installing Cisco TelePresence SX20 Quick Set

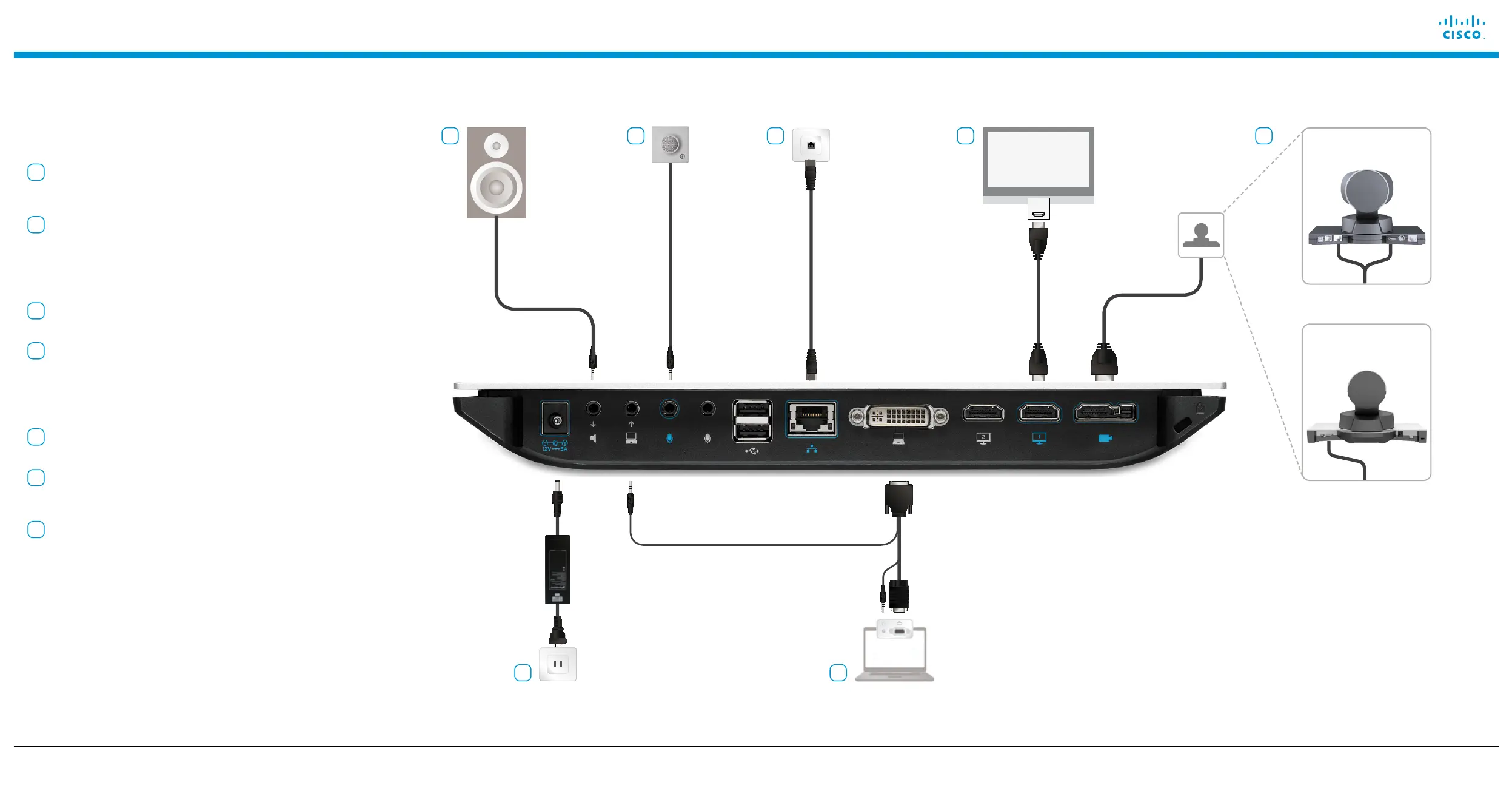

Connecting the cables
Connect all cables as illustrated.
Caution: Make sure all units are switched off when connecting
or disconnecting devices.
If connecting an external loudspeaker, please take care
to use an active speaker (built-in amplifier).
Connect one or two Cisco Table Mic 20 microphones to
your codec.
Caution: Do not connect any other devices to the
microphone inputs.
Connect the codec to LAN/Ethernet.
Connect your primary display to the blue colored HDMI
socket.
With the dual display option, connect the second display
to the other HDMI output.
Connect your camera (option A or B) to the codec.
Connect a PC (video and audio) to be able to share
presentations (either locally or with remote participants).
Always use the provided Lite-On PA-1600-2A-LF
power supply (Input: 2 A, 100-240 V, 50-60 Hz;
Output: 5.0 A, 12.0 V).
2
4
1
3
5
Starting to use the system
Before you can make a call, you must configure the system as
described in the Getting Started Guide available on our web
site. See overleaf where to find the user guides online.
If the codec is not starting automatically, press the touch
button to switch it on. When the button lights steadily (this
may take a few minutes) the system is ready for configuration.
