Cisco Telepresence System EX60

4

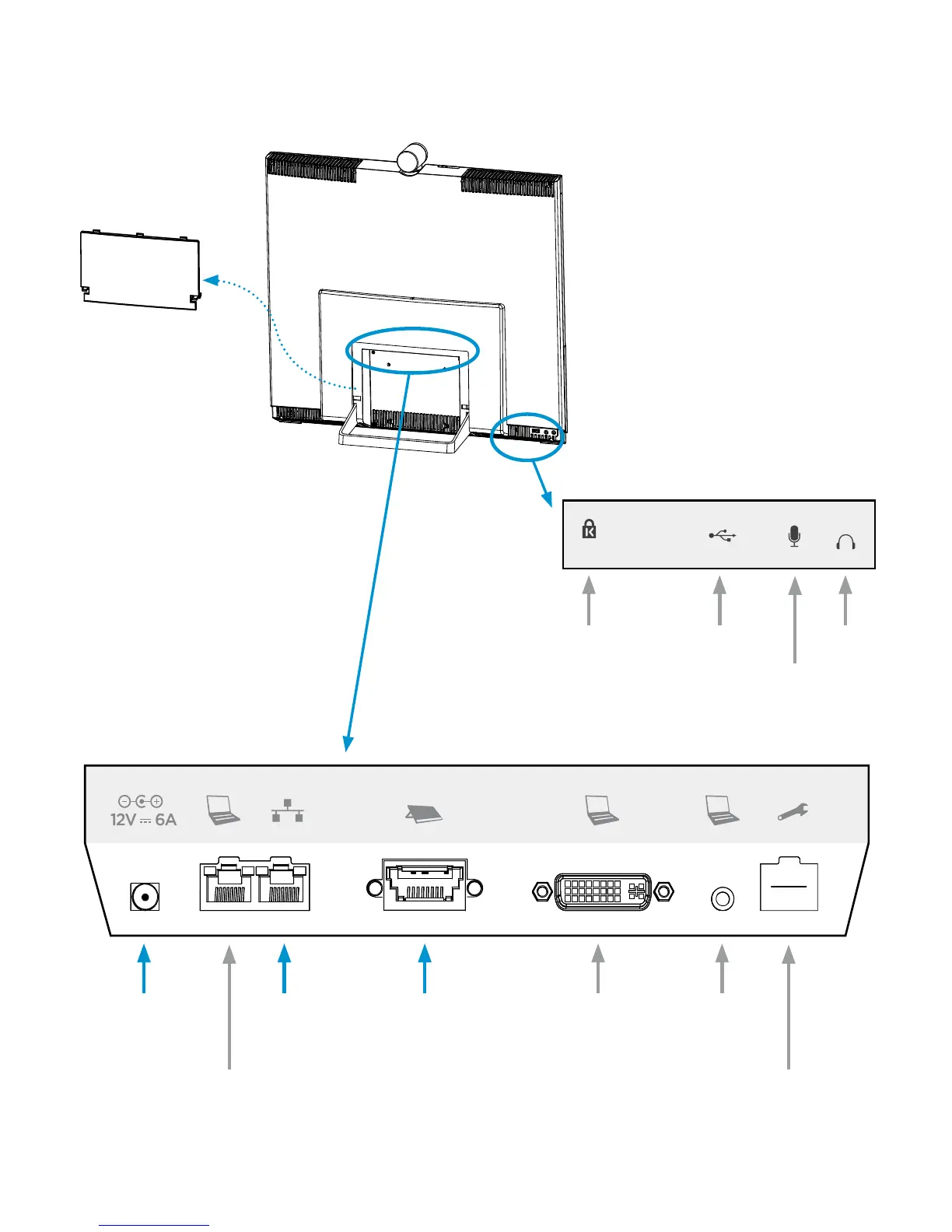

System overview and basic setup
Kensington
lock
USB
Micro-
phone
Remove the cover
to get access to the
connectors at the
rear side.
Local area
network (LAN)
Touch screen
Power supply
(use the supplied
AC adapter)
Optional PC
video input
Optional PC
audio input
For maintenance only
(requires purpose-built
cable)
Optional LAN
connection
for PC
Headset
Connect the touch screen,
LAN and power as illustrated.
To connect a PC, see more
details in step 5.
You may connect an
external microphone and
a headset to your system
(not provided).
