Cisco TelePresence Touch 10 Installation Guide

Direct pairing
Connect Touch 10
Connect the Touch 10 to the network socket on the codec or endpoint.
Option C: Note that the SX Series do not provide Power over Ethernet (PoE), so you need
a mid-span PoE injector to power Touch 10.
Option D: The MX Series (MX200G2, MX300G2, MX700, MX800) provides Power over
Ethernet (PoE).
Touch 10 set-up
Once Touch 10 is connected to power, the set-up procedure begins. Follow the
instructions on screen.
If Touch 10 needs software upgrade, new software will be downloaded from the codec
and installed on the unit automatically as part of the set-up procedure. Touch 10 restarts
after the upgrade.
You can verify that Touch 10 is successfully connected to the codec by checking that the
codec address is displayed in the top banner.

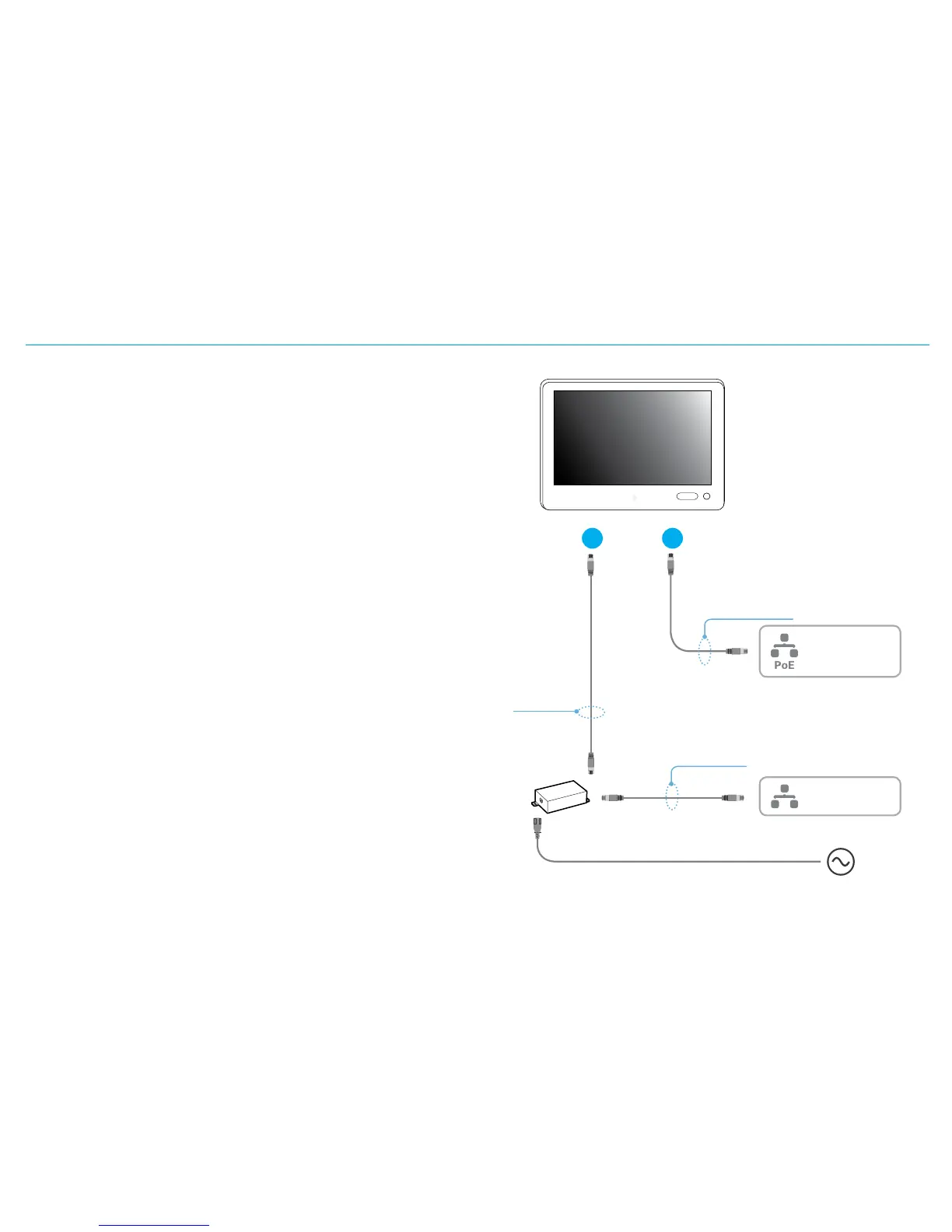

C D
PoE rated
Ethernet cable
The endpoint
(MX Series)
Standard
Ethernet cable
PoE rated
Ethernet cable
The codec
(SX80)

Cisco TelePresence Touch 10 Specifications

General

Resolution	1280 x 800
Touch Technology	Capacitive
Compatibility	Cisco TelePresence Systems
Power	Power over Ethernet (PoE)
Operating Temperature	0°C to 40°C (32°F to 104°F)
Relative Humidity	10% to 90% (non-condensing)
Display Size	10.1 inches
Connectivity	Ethernet
Mounting	Tabletop
Weight	0.9 kg (1.98 lbs)
Storage Temperature	-20° to 60°C (-4° to 140°F)
