Chapter 2 Supervisor Engines
Supervisor Engine 32
Supervisor Engine 32
Table 2-5 lists the four available versions of Supervisor Engine 32 and provides a brief description of
each. Figure 2-2 shows the faceplate of Supervisor Engine 32 (WS-SUP32-GE-3B) with the major
features identified. Figure 2-3 shows the faceplate of Supervisor Engine 32 (WS-SUP32-10GE-3B) with
the major features identified.

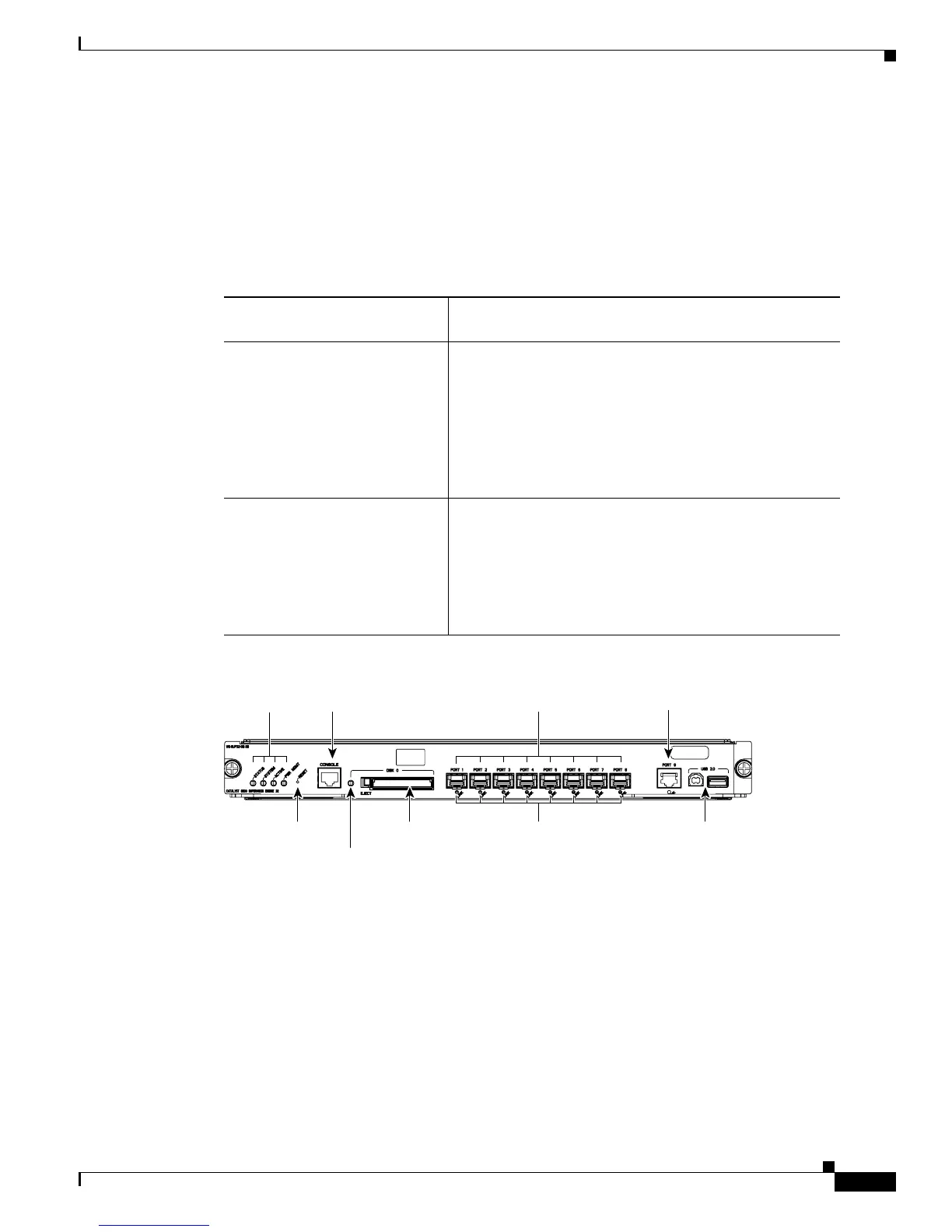

Figure 2-2 Supervisor Engine 32 (WS-SUP32-GE-3B) Front Panel Features
Ta b l e 2-5 Supervisor Engine 32 Product Numbers and Descriptions
Supervisor Engine 32 Product
Number
Description
WS-SUP32-GE-3B Supervisor Engine 32 (WS-SUP32-GE-3B) is shipped with
a factory-installed PFC3B daughter card
(WS-F6K-PFC3B) and an MSFC2A daughter card
(WS-F6K-MSFC2A). Supervisor Engine
32 has nine
uplink ports: eight 1000BASE-X Ethernet uplink ports that
require the installation of Small Form-Factor Pluggable
(SFP) transceivers and one 10/100/100 port with an RJ-45
connector.
WS-SUP32-10GE-3B Supervisor Engine 32 (WS-SUP32-GE-3B) is shipped with
a factory-installed PFC3B daughter card
(WS-F6K-PFC3B) and an MSFC2A daughter card
(WS-F6K-MSFC2A). Supervisor Engine
32 has three
uplink ports: two 10-Gigabit Ethernet uplink ports that
require the installation of XENPAK transceivers and one
10/100/1000 port with an RJ-45 connector.
120690
CONSOLE port
CompactFlash
Type II slot
Status LEDs
RESET button
Uplink ports
USB ports
Link Status LEDs
Disk LED
Uplink port
