5-2. Labels with black marks
If you are using black-mark label stock that has the printer's maximum feed width, the printer may
not recognise the black marks because they are outside the sensor range. When using label stock
with black marks, you should therefore observe the following restrictions:

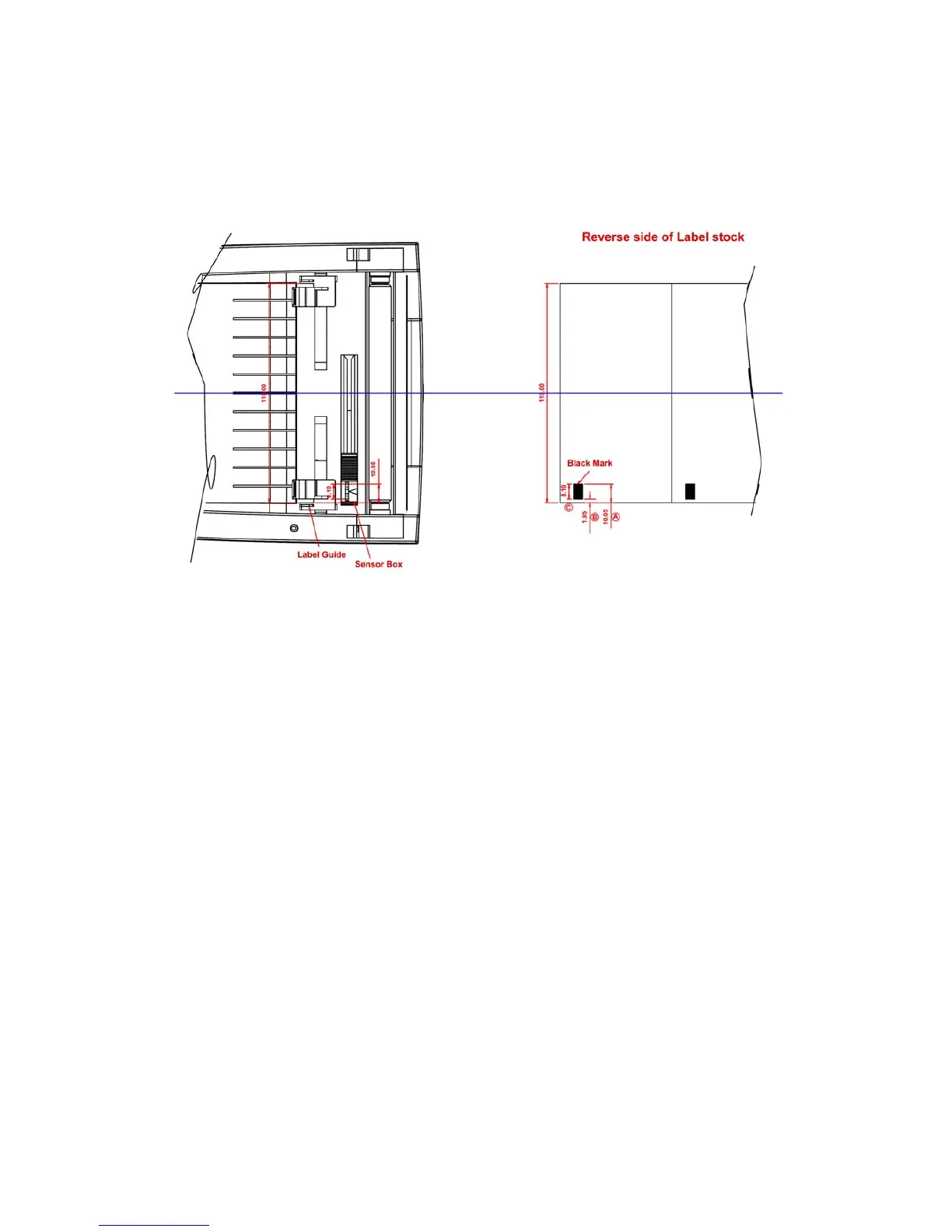

For 118 mm wide label stock, the black marks should have the following positions and sizes:
z A > 10.05 mm high
z B < 1.95 mm high
z C > 8.1 mm high
25
