2. When removing the setting stem from the movement
• Pressing the base of the unlocking lever for setting stem (“PUSH →” position), pull out the set-
ting stem.
<Note>
When the movement has been removed from the case, do not press the end of the unlocking
lever for setting stem. If it is pressed in this case, it may be pressed too much to deform
itself, circuit unit supporter, etc. since there is not a stopper.
If the movement is installed to the case with any part deformed, the setting stem may not be
pulled out even if the unlocking lever for setting stem is pressed.
<Procedure>

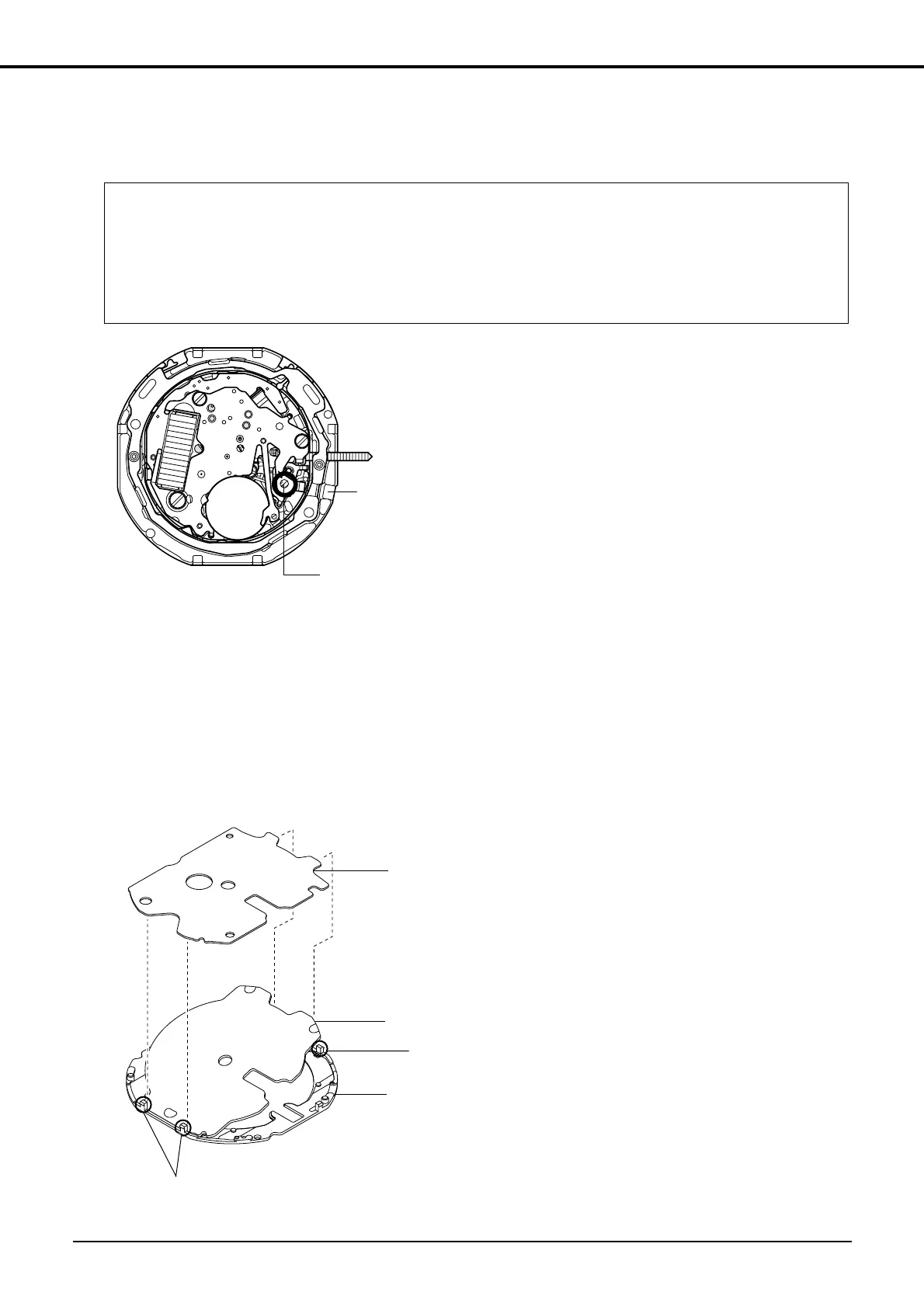

(1) Set the crown at the normal position (Push it
in).
(2) Lightly press the base of the unlocking lever
for setting stem (“PUSH
→” position) with a
screwdriver, etc. from above.
(3) With the lever pressed, pull out the setting
stem.
B. Procedure for Assembling Solar Cell
1. Precautions for handling of solar cell
• If the top of the solar cell is damaged, its charging capacity and other functions are lowered.
Accordingly, sufficiently take care not to damage the top of the solar cell when removing and
setting it.
• If the electrodes are stained or flaked off, a continuity trouble occurs. Since it is difficult to
clean the top of solar cell, do not touch them with a finger, etc.
<Procedure>
(1) Insert either side of the solar cell under the
hook of the solar cell supporter, and then
insert the opposite side under the hook simi-
larly.
(2) Similarly to the solar cell, insert either side of
the hour wheel guard under the hook, and
then insert the opposite side under the hook.
(3) After assembling the solar cell supporter,
solar cell, and hour wheel guard, install them
to the movement.
To Next Page
