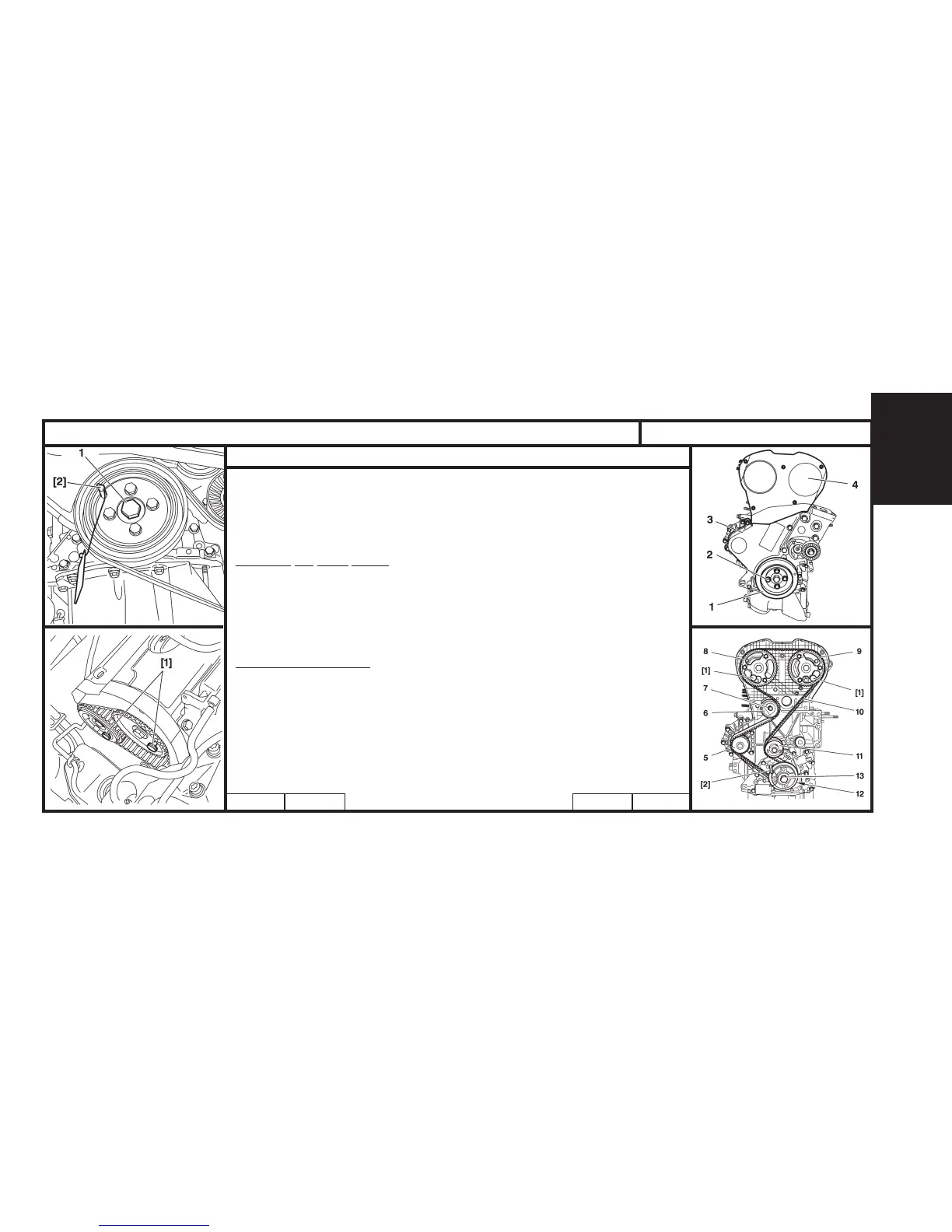

CHECKING AND SETTING THE VALVE TIMING
Engines : 6FZ - RFN # 2003
B1BP23XC
TOOLS
[1] Camshaft setting pegs : (-).0189.A
[2] Crankshaft setting peg : (-).0189.B Tool kit C.0189.
[3] Belt locking pin : (-).0189.K
[4] Angular tightening adaptor : 4069-T.
[5] Hub immobilising tool : 6310-T
Checking the valve timing
-Turn the engine by the crankshaft pinion screw (3) to bring it to pegging position.
-Peg the crankshaft, using tool [2].
-Peg the camshaft pulleys, using tools [1].
NOTE : The pegs [1] must go in without effort.
WARNING : If the pegs do not engage without effort, restart the fitting and
tensioning of the timing belt (see below).
Setting the valve timing
Remove
- Remove the screws (2), the pulley (1), upper valve cover (4), lower valve cover (3).
- Turn the engine by the screw (13) of the pinion (12) to bring it to pegging position.
- Peg the pulleys (8) and (9) using tools [1].
- Peg the pinion (12) using tool [2].
- Loosen the screw (7) of the tensioner roller (6).
- Turn the tensioner roller (6) (clockwise).
- Remove the timing belt (10).
B1BP27JC
B1BP25PC
B1EP14JD
