Citronic CDM10:4 - Mixer Layout; Microphone Section; Stereo Section

171.135UK User Manual

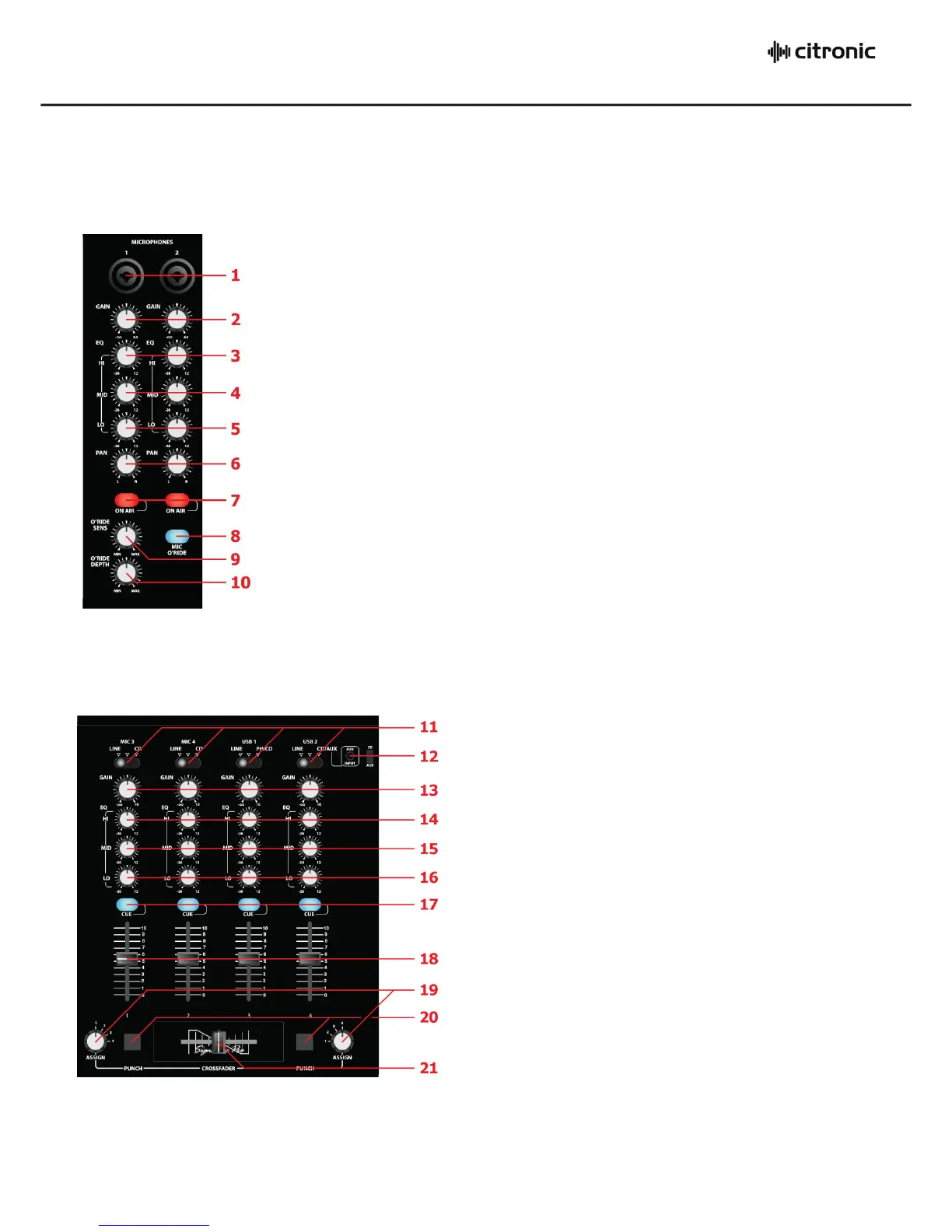

Layout
Microphone Section
Stereo Section:
1.
Combo inputs
Inputs for microphone on jack or XLR
2.
GAIN controls
Mic input sensitivity adjustment
3.
HI controls
Mic EQ high frequency adjustment
4.
MID controls
Mic EQ mid frequency adjustment
5.
LO controls
Mic EQ low frequency adjustment
6.
PAN controls
Mic left/right stereo positioning
7.
ON AIR button
Press in to activate mic channel
8.
MIC O’RIDE button
Select mics to override audio playback
9.
O’RIDE SENS control
Adjust override sensitivity to mic input
10.
O’RIDE DEPTH control
Adjust audio playback reduction amount
11.
Input selector
Select between rear inputs
12.
AUX input
3.5mm input & select switch
13.
GAIN controls
input sensitivity adjustment
14.
HI controls
EQ high freq. adjustment
15.
MID controls
EQ mid freq. adjustment
16.
LO controls
EQ low freq. adjustment
17.
CUE buttons
Select channel to monitor
18.
Channel faders
Channel level to master
19.
ASSIGN rotary
Crossfader channel select
20.
PUNCH buttons
Momentary crossfade defeat
21.
CROSSFADER
Mix between 2 channels
