CKD EVD-1500-08 Series User Manual

Setting mode Setting method
2 seconds and over

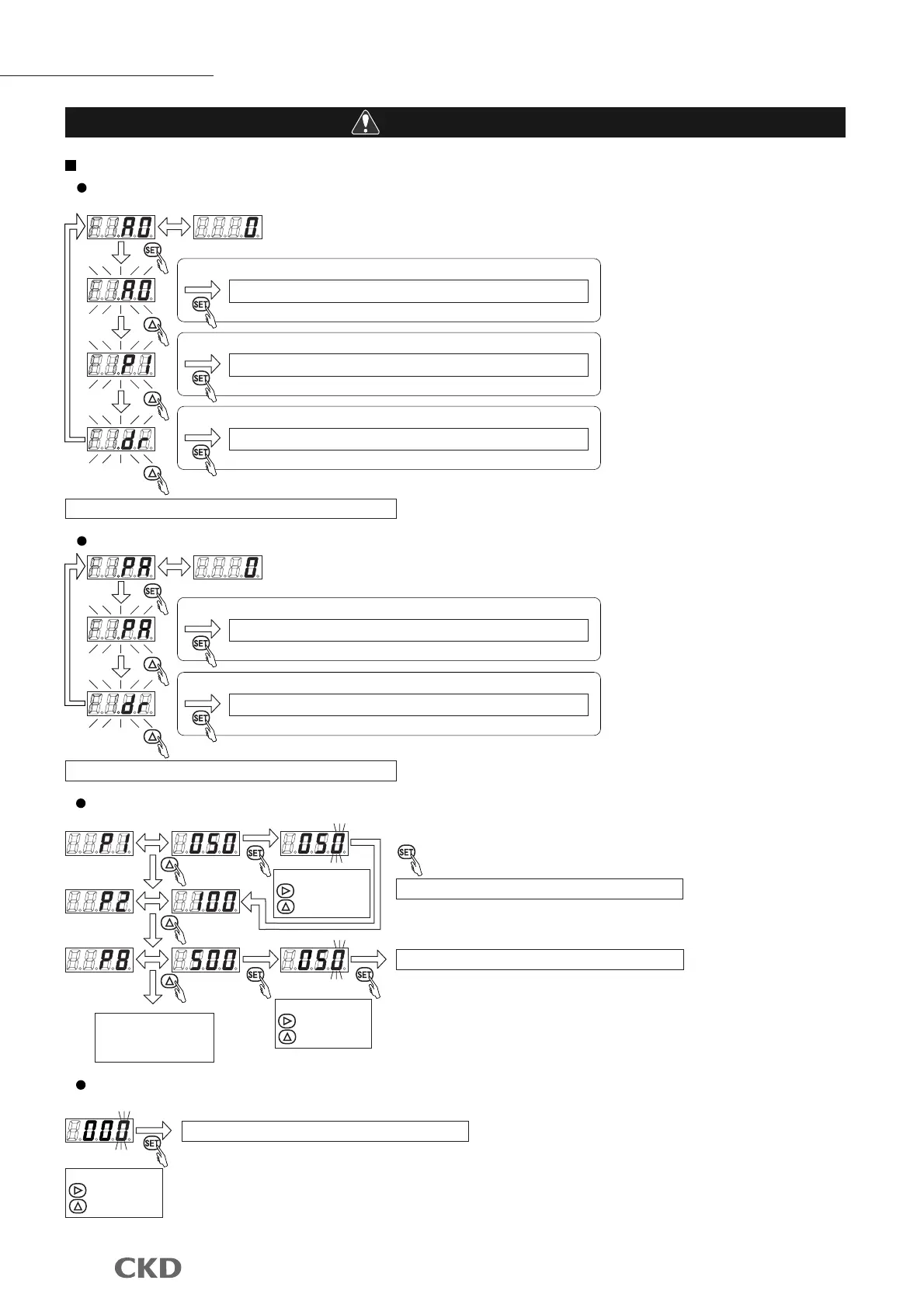

Hold down the SET key for 2 seconds or longer with the F1 (input signal selection) screen F1 displayed.The F1 setting mode is entered.
Changing analog input signal selection
Note: Analog input specifications cannot be changed.
Using preset memory input setting mode
*Hold down the SET key for 2 seconds or longer with screen F1 preset memory input displayed.
Using direct memory input setting mode
*Hold down the SET key for 2 seconds or longer with screen F1 direct memory input displayed.
2 seconds and over 2 seconds and over
Input the target.
key: Moves digit
key: Counts up value
Input the target.
key: Moves digit
key: Counts up value
2 seconds and over
After setting, moves to the next No.
2 seconds and over
After setting, exits setting mode and returns to screen F1.
After setting, exits setting mode and returns to screen F1.
After setting, exits setting mode and returns to screen F1.
*To select analog input * Default
Changing parallel input signal selection
Input the target.
key: Moves digit
key: Counts up value
2 seconds and over
Exits input signal selection setting mode, and returns to screen F1.
Exits input signal selection setting mode, and returns to screen F1.
Caution
Release the key lock before changing setting details.(Refer to page 17)
2 seconds and over
Enters preset memory input setting mode (see below)
To select preset memory input
2 seconds and over
Enters direct memory input setting mode (see below)
To select direct memory input
2 seconds and over
After setting, exits setting mode and returns to screen F1.
*To select parallel input * Default
2 seconds and over
Enters direct memory input setting mode (see below)
To select direct memory input
2 seconds and over
2 seconds and over
Exits preset memory
input setting mode, and
returns to screen F1.
15
EVD Series
