Description of the generator
8
3.3.

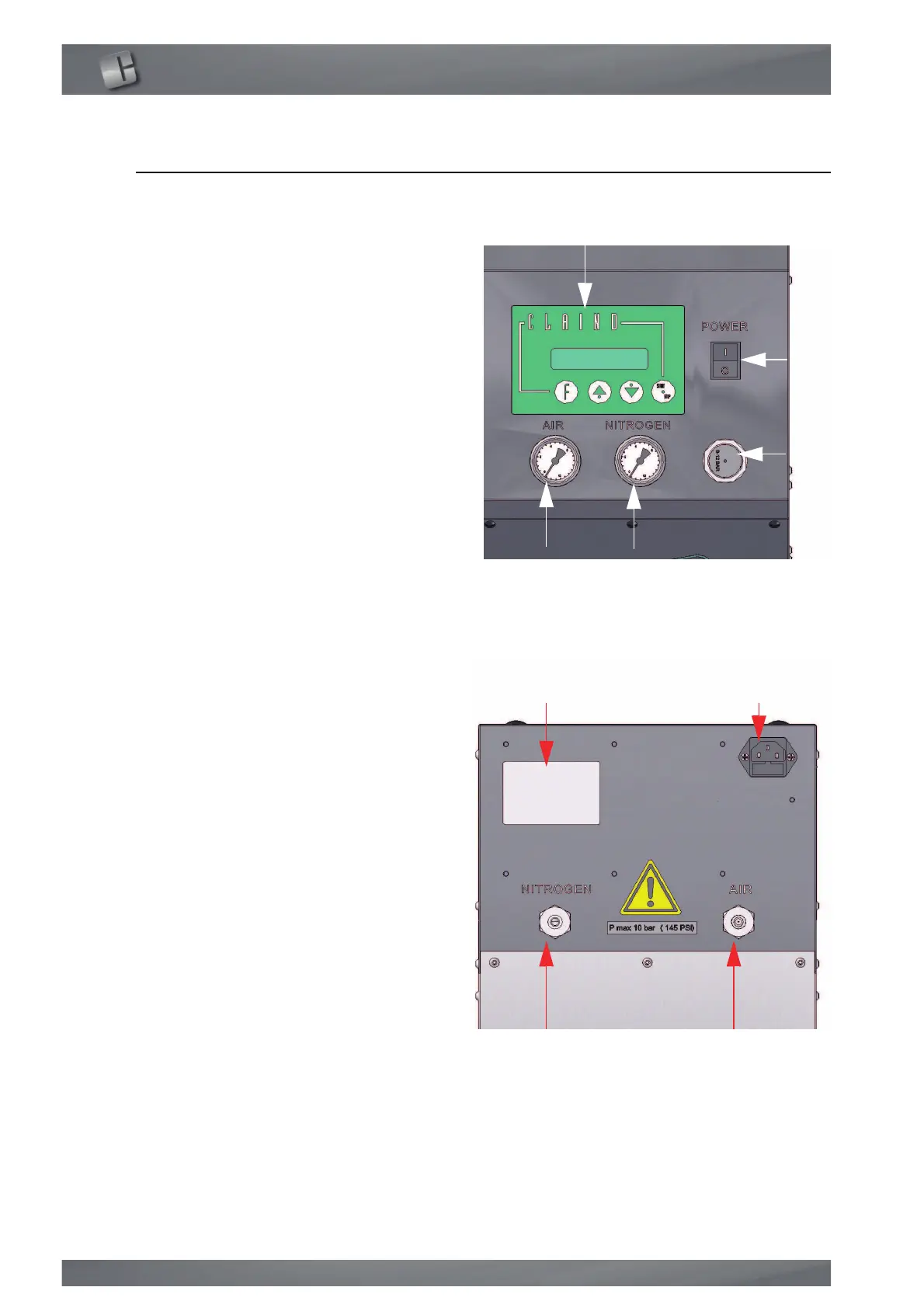

Generator components
3.3.1.
Frontal view
3.3.2.
Rear view
A. ALPHANUMERIC DISPLAY AND
KEYPAD: they indicate the alarm and
operative condition; the four keys
allow to display and set the working
parameters.
B. NITROGEN GAUGE: it indicates the
outlet Nitrogen pressure
C. “POWER” KEY: it is the power switch.
D. AIR GAUGE: it indicates the
compressed ari pressure of the intake
line of the generator
E. PRESSURE REGULATOR: it allows to
set the outlet Nitrogen pressure
A. LABEL: it shows the identificative data
of the generator and the power supply
data.
B. CONNECTORS for the power supply
cable; it includes the main FUSE
lodging, whose characteristics are
indicated in the “F” label.
C. NITROGEN: pneumatic connection
(G 1/4’’ female) for nitrogen line to be
connected to the user.
D. AIR: pneumatic connector for
compressed air line (G 1/4’’ female)
