©PE-2117B-A/PE-2117C-A/PE-2117E-A/PE-2117K-A ©PE-2118B-A/PE-2118E-A/PE-2118K-A
Main
unit
=
1
Main
unit
=
1
CD
magzine
CAA-154-101
2
CD
magzine
CAA-154-104
3
Bracket
300-9701
-00
2 Bracket
300-9702-00
2
Bracket
300-9725-00
2 Bracket
300-9725-00
2
Extension
lead
854-3227-00
1
Extension lead
854-3227-00
1
Parts
bag
_
d
Parts
bag
—-
1
Clamp
321-0774-00
1
Clamp
321-0774-00
1
Lead holder
335-0833-01
2
Lead
holder
335-0833-01
2
Machine
screw
714-5006-79
1
Machine
screw
714-5006-79
1
M6 wing
nut
722-0545-00
4
M6
wing
nut
722-0545-00
4
D-sems-hex
boit
734-5008-37
4
D-sems-hex
bolt
734-5008-37
6
Parts
bag (Cushion rubber)
921-9278-00
1
Parts
bag (Cushion
rubber)
921-9278-00
1

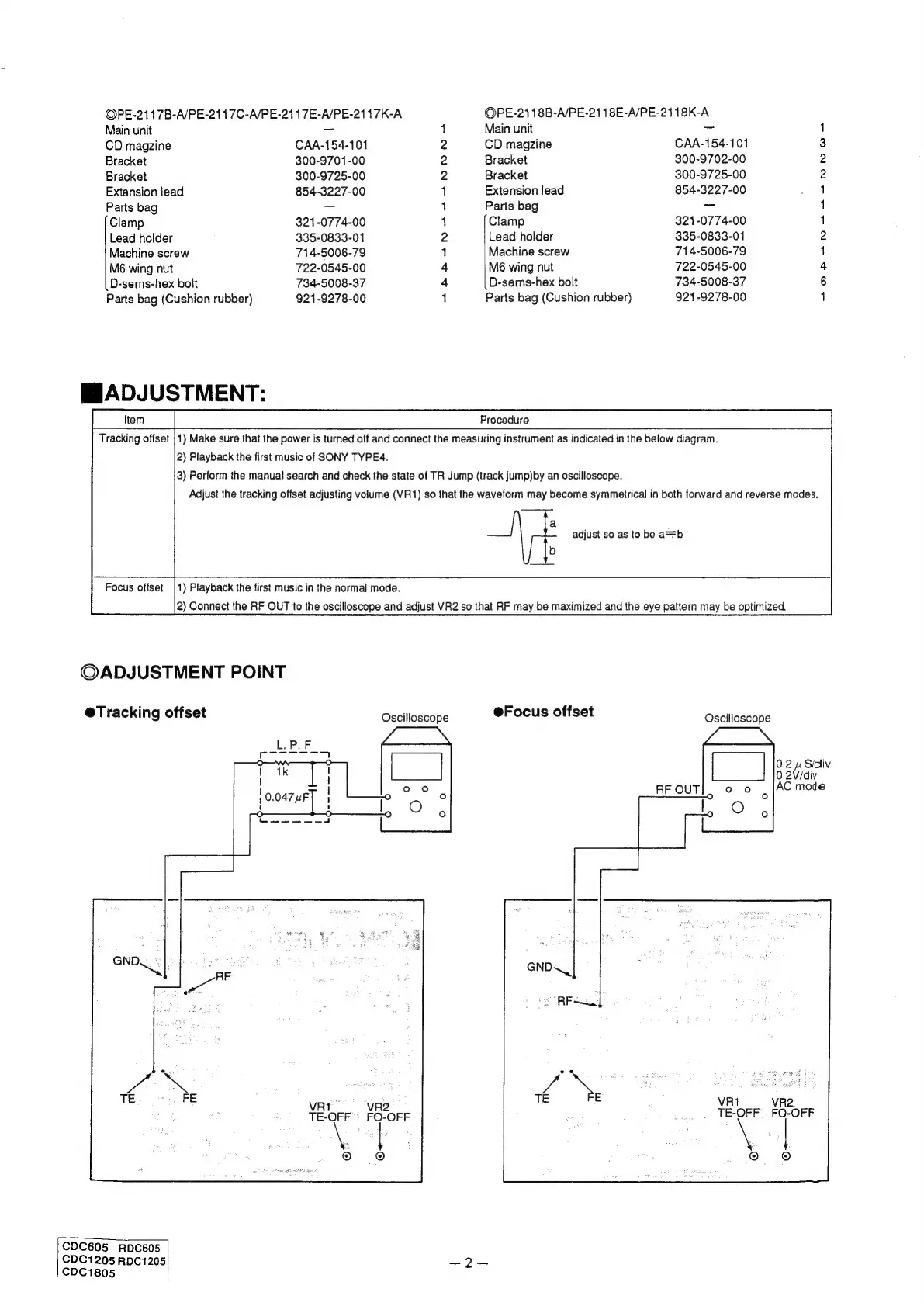

MADJUSTMENT:
Procedure
Tracking offset | 1) Make sure that the power is turned off and connect the measuring instrument as indicated in the below diagram.
2) Playback the first music of SONY TYPE4.
3) Perform the manual search and check the state of TR Jump (track jump)by an oscilloscope.
Adjust the tracking offset adjusting volume (VR1) so that the waveform may become symmetrical in both forward and reverse modes.
adjust so as to be a=b
Focus offset | 1) Playback the first music in the normal mode.
2) Connect the RF OUT to the oscilloscope and adjust VR2 so that RF may be maximized and the eye pattern may be optimized.
OADJUSTMENT POINT
e@Tracking offset e@Focus offset
Oscilloscope
Oscilloscope
0,2 u Sidiv
0.2V/div
AC mode
VR1
Pe |
VR2_
TE-OFF > FO-OFF
VR1_svR2
TE-OFF.. FO-OFF
© @® ©
CDC605 RDCENS
CDC1205 RDC1205 =
CDC1805
