Blue
Power Antenna
Purple
Black
OEM Steering Wheel
Antennal
Gray
Gray/Black
White
White/Black

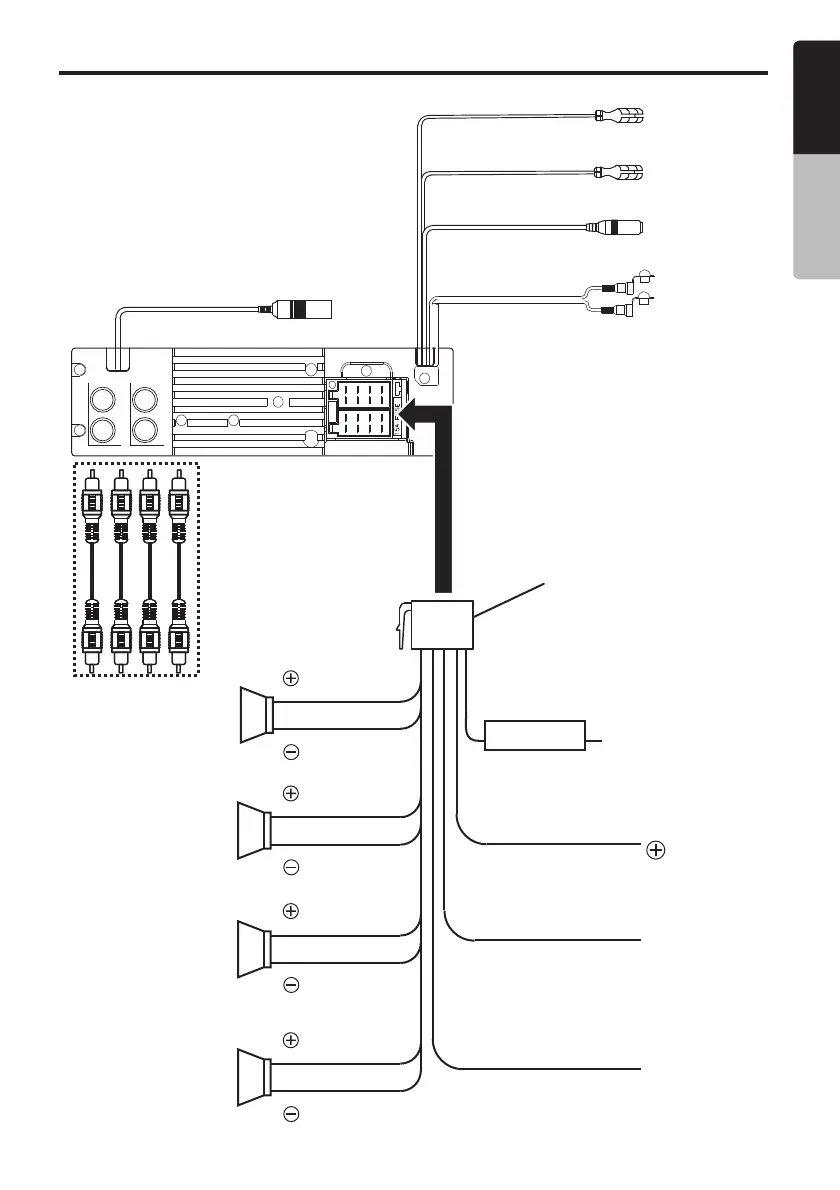

5. Wiring and Connections
Violet
Violet/Black
Green
Green/Black
White/Blue
System Remote
L L
R R
Rear Front
ISO Connector
Yellow wire
(Memory back-up lead)
Red wire
(Power lead)
Black wire (Ground lead)
Connect to vehicle chassis
ground
Connect directly
to battery
Accessory
12V
Front Right
Rear Right
Rear Left
Front Left
Fuse 15A
Orange/White wire
(Illumination lead)
Connect it to the power supply
terminal for illumination
Blue
Subwoofer Out
Blue
Blue
