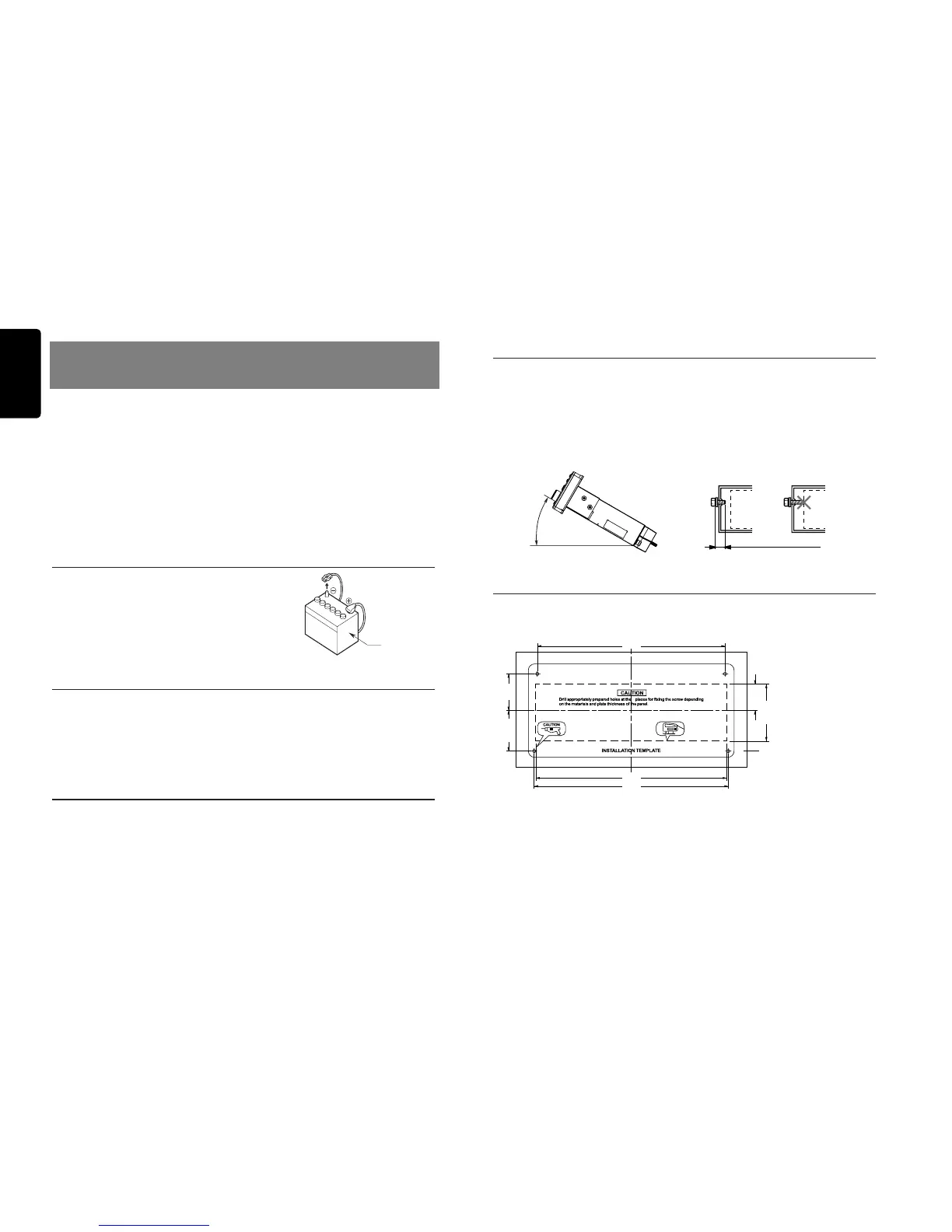

8. INSTALLATION / WIRE
CONNECTION GUIDE
1) Before Starting
1. This set is intended exclusively for use with a
negative ground 12V power supply.
2. Read these instructions carefully.
3. Be sure to disconnect the battery “terminal” before
starting. This is to prevent short circuits during
installation. (Figure 1)
2) Package Contents
3) General Precautions
1. Do not open the case. There are no
user serviceable parts inside. If you
drop anything into the unit during
installation, consult your dealer or an
authorized Clarion service center.
2. Use a soft, dry cloth to clean the case.
Never use a rough cloth, thinner,
benzine, or alcohol etc. For tough dirt,
apply a damp soft cloth and wipe dirt
off gently.
CONTENTS
Battery
Figure 1
Source unit .................................................. 1
Aux output cable...........................................1
Aux input cable.............................................1
SiriusXM / SWC cable..................................1
Wired remote cable......................................1
Hole block seal (black) ................................ 1
Support strap ............................................... 1
M4 Nut ......................................................... 1
M4 washer ................................................... 2
Screws M4 x 30 mm .................................... 4
Power supply cable ..................................... 1
Owner’s manual........................................... 1
Warranty card .............................................. 1
Trim ring ...................................................... 2
4) Cautions on Installation
1. Prepare all articles necessary for in-
stalling the source unit before starting.
2. Install the unit within 30° of the hori-
zontal plane. (Figure 2)
3. If you have to do any work on the boat
body, such as drilling holes, consult
your boat dealer beforehand.
4. Use the enclosed screws for installa-
tion.
Using other screws can cause dam-
age.
(Figure 3)
5) Installing the Source Unit
Max 30˚
Figure 2
• Marine stereo mounting dimensions
Using the supply template to cut the hole and drill the
holes. (Figure 4)
CAUTION
Drill appropriately prepared holes at the 4 places for xing the screw depending on the materials
and plate thickness of the panel.
Figure 4
1) Before Starting ...................................................................... 16
2) Package Contents ................................................................. 16
3) General Preautions ............................................................... 16
4) Cautions on Installation ......................................................... 16
5) Installing the Source Unit ...................................................... 16
6) Cautions on Wiring ............................................................... 17
7) Sample Systems .................................................................. 17
8) Wiring and Connections ........................................................ 18~20
9) Connecting the accessories .................................................. 18~20
Chassis Chassis
Damage
Max. 5/16 (8 mm)
Figure 3
4
185 mm
182 mm
179 mm
35 mm
38.50 mm
54.20 mm
25.20 mm
To Next Page
