3-Way System
12

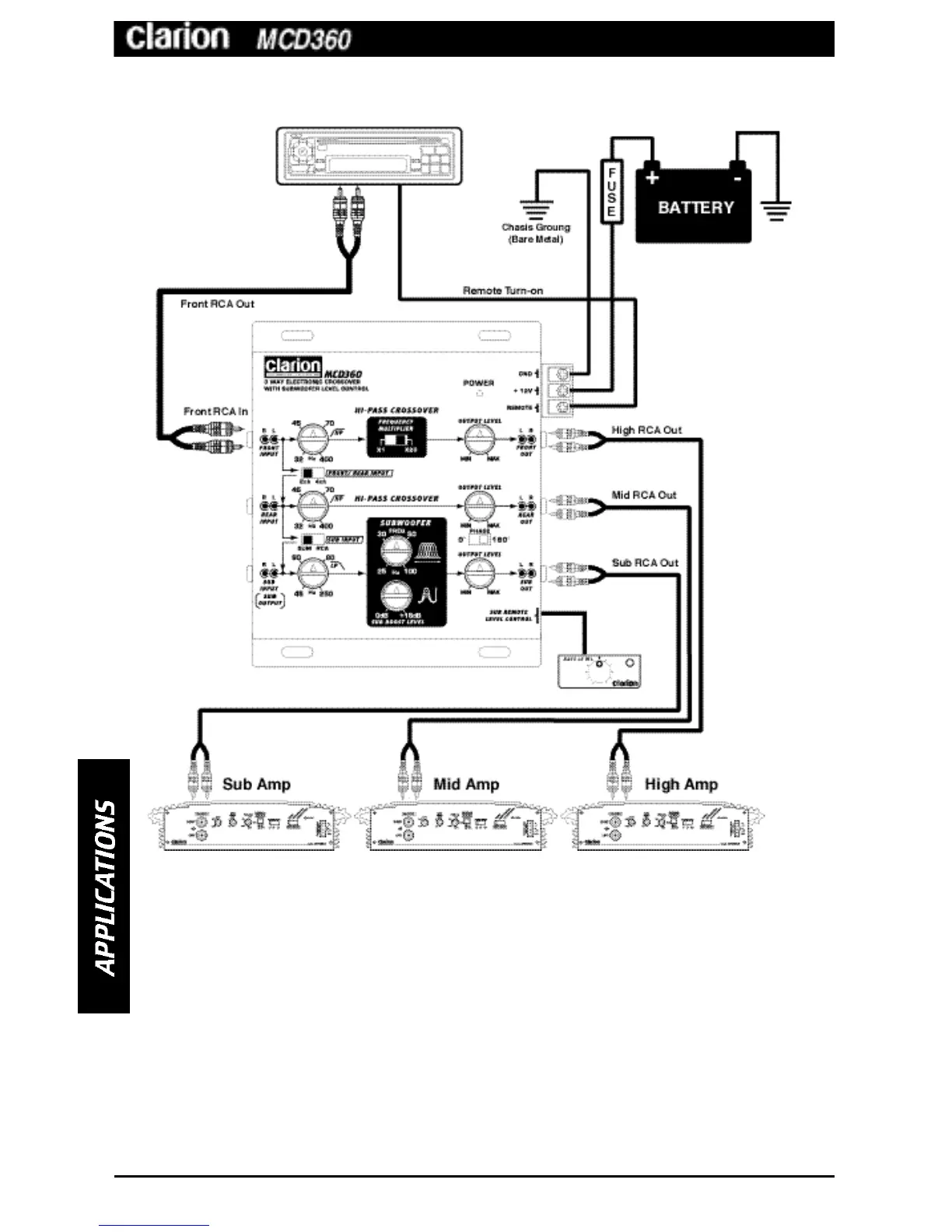

Figure 6 - In this illustration, the MCD360 is configured for single channel
input with dedicated amplifiers for tweeters, midranges and subwoofer(s).
