Clarion PP-2449V-C - CIRCUIT DIAGRAM; Switch PWB(B2) Section; PRINTED WIRING BOARD

- 11 -
PP-2449V-B
PP-2449V-C

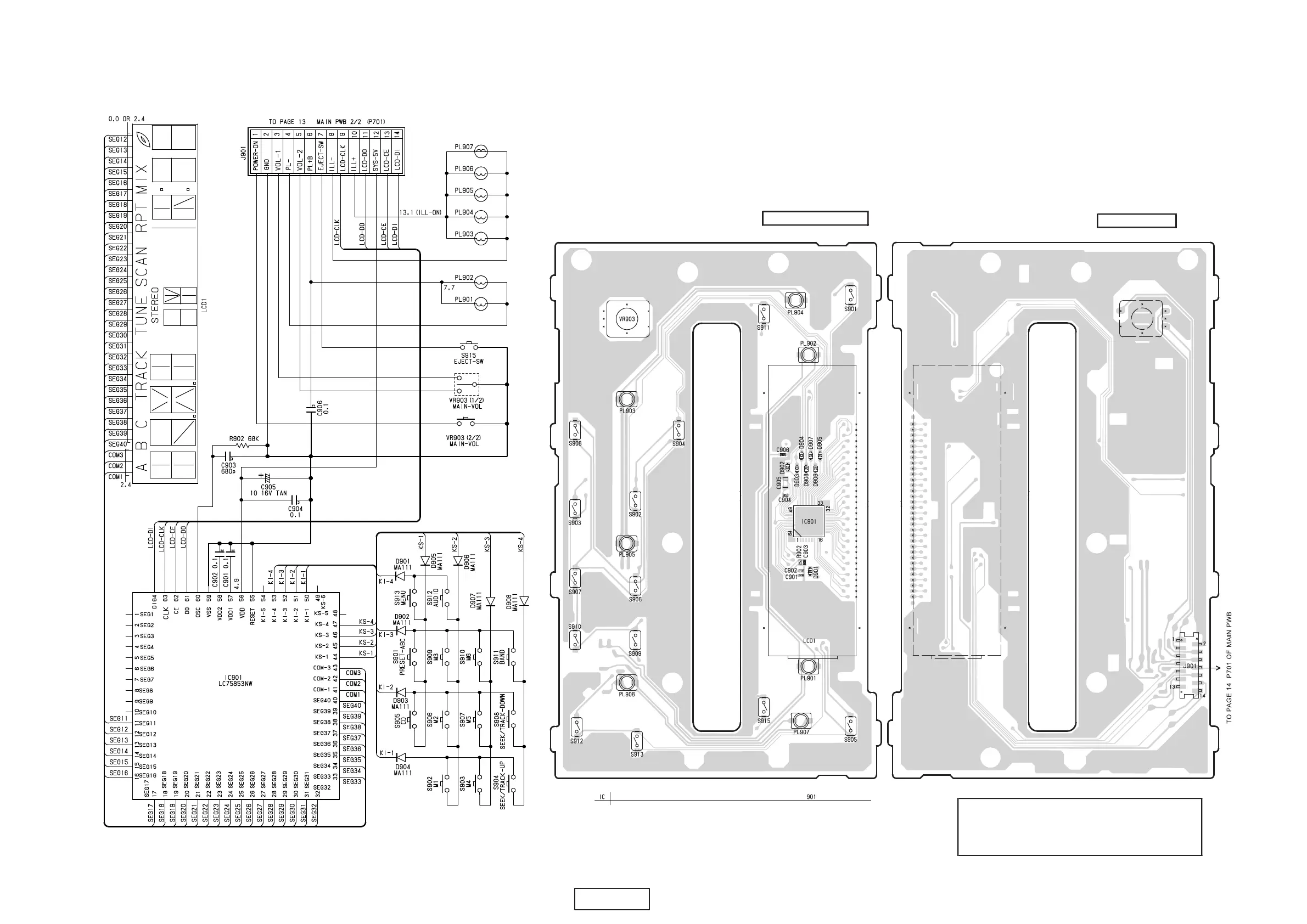

Switch PWB(B2) section
CIRCUIT DIAGRAM
Switch PWB(B2) section
PRINTED WIRING BOARD
COMPONENTSIDE
SOLDERSIDE
Caution:
COMPONENTSIDE:Partsonthecomponentsideseen
fromthecomponentsideareindicated.
SOLDERSIDE:Partsonthesoldersideseen
fromthesoldersideareindicated.
