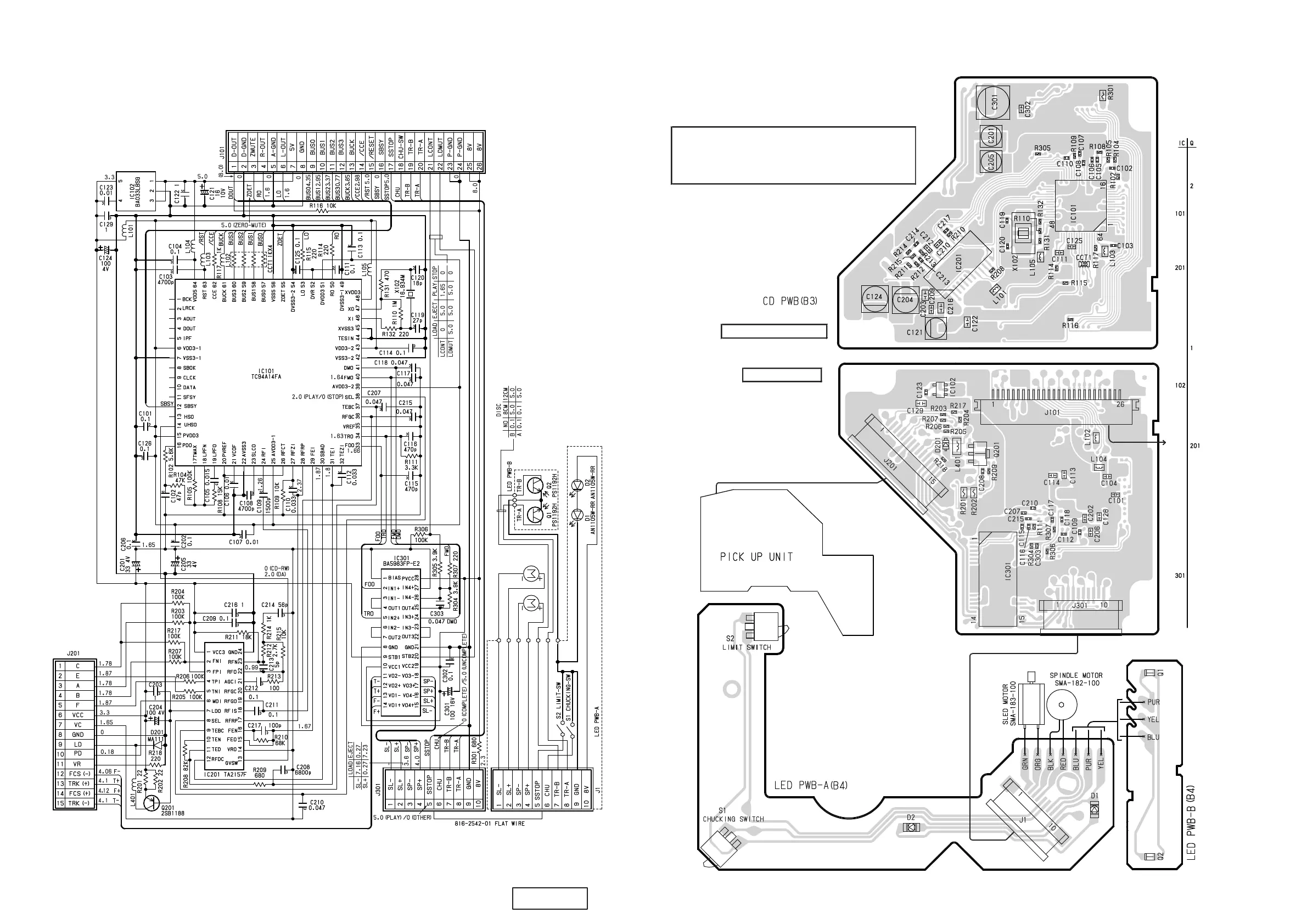

Clarion PP-2449V-C - CIRCUIT DIAGRAM; CD PWB(B3); LED PWB(B4) Section; PRINTED WIRING BOARD; CD PWB(B3); LED PWB(B5) Section

- 16 -
TO J201 OF MAIN PWB (PAGE 14)
PRINTED WIRING BOARD
CD PWB(B3) / LED PWB(B5) section
COMPONENTSIDE
SOLDERSIDE
Caution:
COMPONENTSIDE:Partsonthecomponentsideseen
fromthecomponentsideareindicated.
SOLDERSIDE:Partsonthesoldersideseen
fromthesoldersideareindicated.
TO J201 OF MAIN PWB (PAGE 12)
TO PICK UP UNIT
CD PWB(B3) / LED PWB(B4) section
CIRCUIT DIAGRAM
PP-2449V-B
PP-2449V-C
