Clarion PU-2294A - Printed Wiring Board Layouts (CD Mechanism); Switch PWB Layout; CD Mechanism PWB Layouts; Motor and PWB Identification

- 16 -
PU-2294A/B
PU-2325A

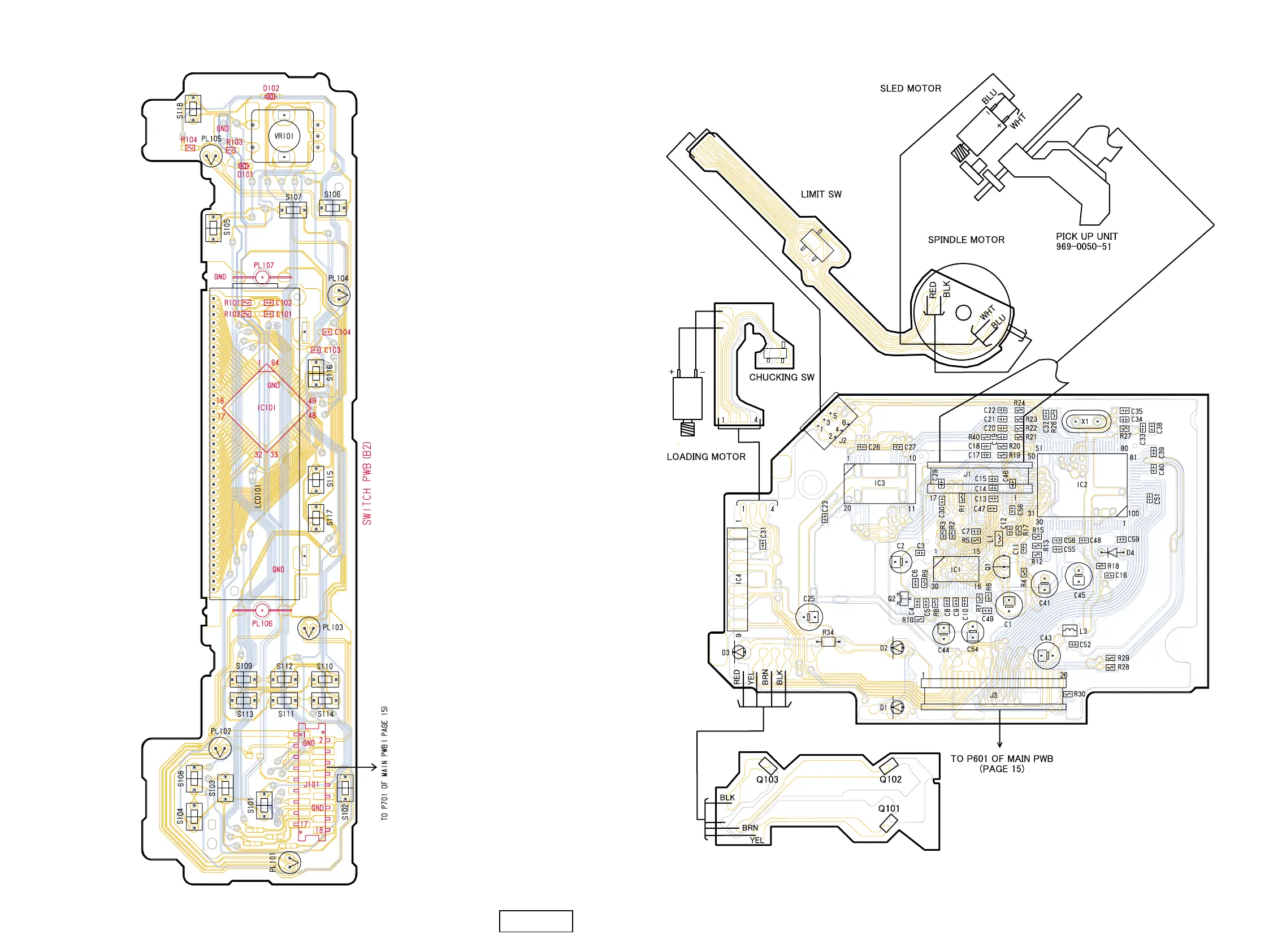

Switch PWB section(B2) CD mechanism section(B4-B7)
M3
SM A-147-100
6
1
S1
013-7100-00
M1
SM A-151-100
CD MECH PW B(B4)
SENSO R PW B(B5)
S2
013-3879-01
RED(GND)
RED
BLK
RED
BLK
M2
SM A-146-100
LIM IT SW PW B(B6)
CHUCKING SW PW B(B7)
GND
GND GND
GND
GND
GND
GND
GND
GND
GND
