Clarion PU-9836A - Page 3

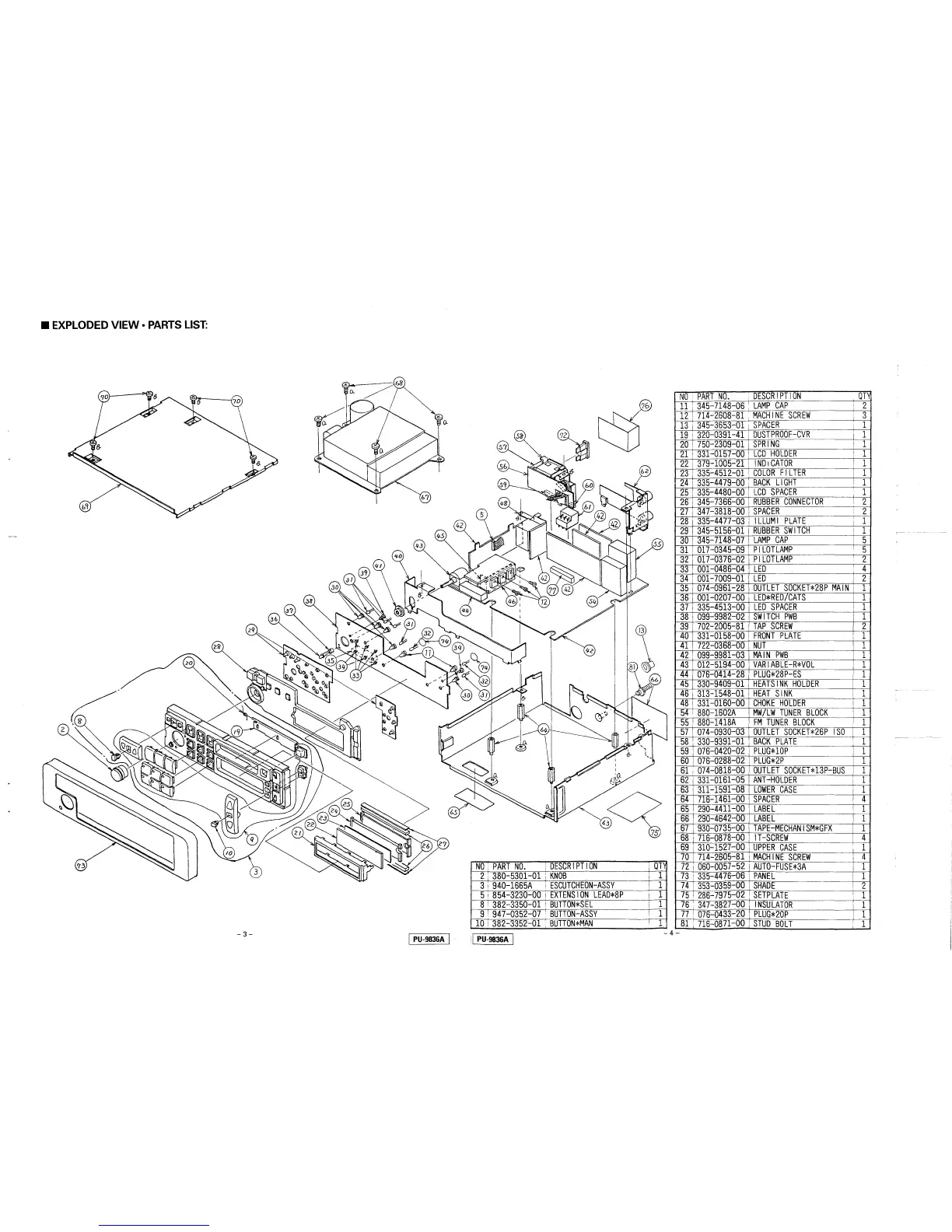

• EXPLODED VIEW • PARTS LIST:
NO
PART NO.
DESCRIPTION
OTY
76 11 ' 345-7148-06 I LAMP CAP
i
2
,
12 I 714-2608-81 , MACH I NE SCREW
-~
13 i 345-3653-01 i SPACER
i 1
19 I 320-0391-41 i DUSTPROOF-CVR
!
1
20
750-2309-01 i SPR I NG
!
1
21 ! 331-0157-00
LCD HOLDER
I
1
22
379-1005-21
INDICATOR
I
1
23
335-4512-01
COLOR FILTER
1
24
. 335-4479-00 BACK LIGHT
I 1
25
335-4480-00
LCD SPACER
1
26
345-7366-00
RUBBER CONNECTOR
j
2
27 i 347-3818-00 I SPACER
:
2
28 . 335-4477-03 I I LLUMI PLATE
J 1
29
345-5156-01 I RUBBER SW ITCH
11
30
345-7148-07
LAMP CAP
I
5
31
017-0345-09
PI LOTLAMP
I 5
32 I 017-0376-02
PI LOTLAMP
2
33
001-0486-04 LED 4
34
001-7009-01 LED 2
35
074-0961-28
OUTLET SOCKET*28P MA IN'
1
36
001-0207-00
LED*RED/CATS
1
37
335-4513-00
LED SPACER 1
38
099-9982-02 SWITCH PWB 1
39
702-2005-81 , TAP SCREW 2
40
331-0158-00 FRONT PLATE
i
1
41
722-0368-00 NUT 1
42
099-9981-03
MAIN PWB
1
43
012-5194-00 . VAR I ABLE-R*VOL
1
44
076-0414-28
PLUG*28P-ES
1
45
330-9409-01 HEATS INK HOLDER 1
46
313-1548-01 HEAT SINK
I
1
48
331-0160-00 CHOKE HOLDER
i
1
54 I 880-1602A MW/LW TUNER BLOCK 1
55 ! 880-1418A
FM TUNER BLOCK
I
1
57
074-0930-03
OUTLET SOCKET*26P
ISO
,
1
58 I 330-9391-01 i BACK PLATE 1
59 I 076-0420-02 . PLUG*10P
I
1
i
60
076-0288-02
PLUG*2P
I
1
,
61 I 074-0818-00
OUTLET SOCKET*13P-BUS
i
1
62
331-0161-05
ANT-HOLDER
I
1
63
311-1591-08 LOWER CASE
I
1
64
716-1461-00 SPACER
I
4
65
290-4411-00 LABEL
!
1
66
290-4642-00
LABEL 1
67 930-0735-00 : TAPE-MECHANISM*GFX
1
68 716-0878-00 IT-SCREW 4
691 310-1527-00
UPPER CASE
L
1
70
714-2605-81
MACHINE SCREW
i
4
NO : PART NO.
i DESCR I PT I ON
I on 72 ! 060-0057-52 I AUTO-FUSE*3A
,
1
2 :
380-5301-01 : KNOB
I
1
73 ! 335-4476-06 I PANEL
1
3
i 940-1665A
: ESCUTCHEON-ASSY
I
1
74
353-0359-00 SHADE
2
5
! 854-3230-00 ! EXTENS I ON LEAD*8P
I
1
75 i 286-7975-02 I SETPLATE
I
1
8
! 382-3350-01 I BUTTON*SEL
i
1
76 • 347-3827-00 INSULATOR
I
1
9
' 947-0352-07 ' BUTTON-ASSY
I
1
77 ! 076-0433-20
PLUG*20P
1
10 i 382-3352-01
BUTTON*MAN
1
81 • 716-0871-00
STUD BOLT
1
-3-
I PU-9836A I II PU-9836A I
