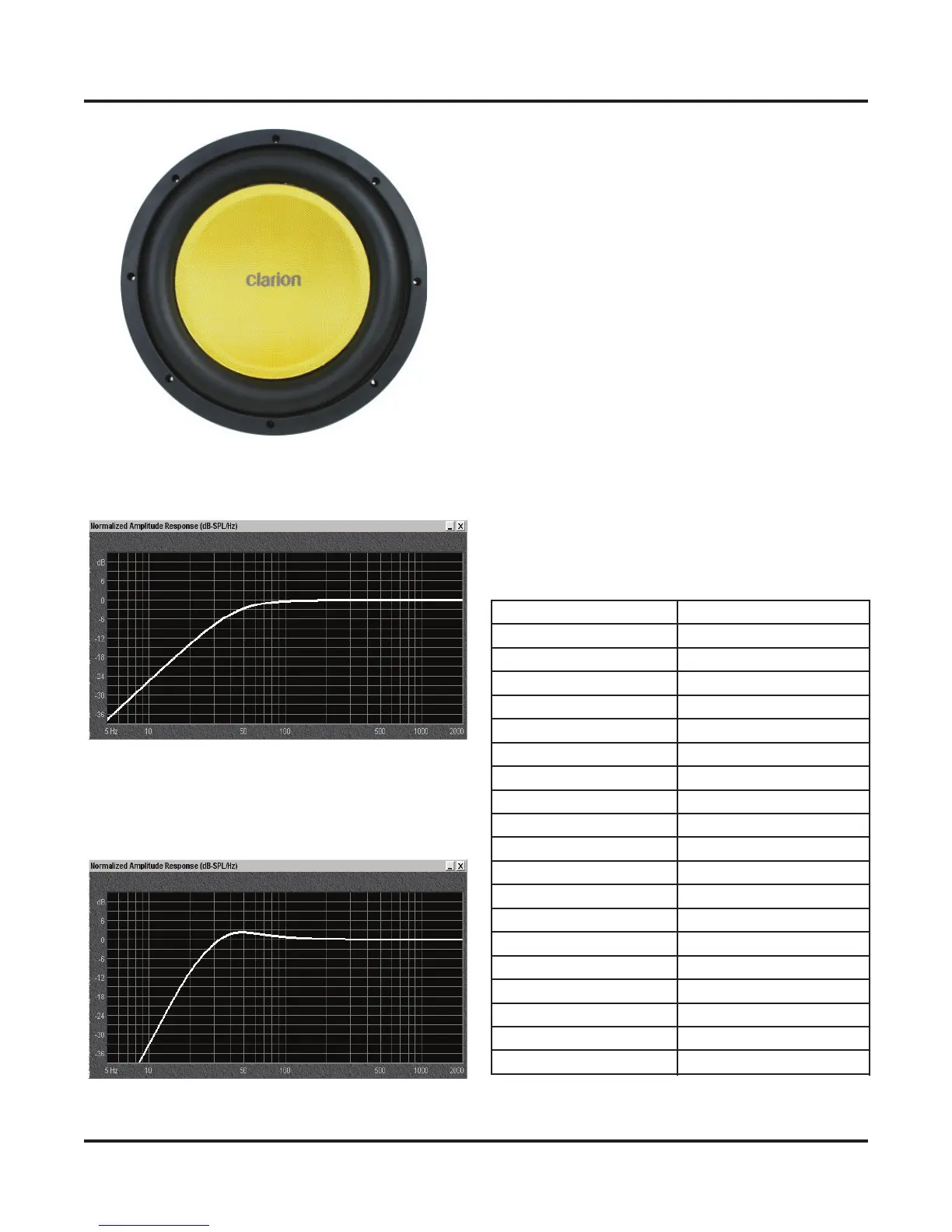

Clarion SSW1001 User Manual

6
Sealed
Enclosure Airspace = 0.7 ft
3
net
Qtc = 0.704 F3 = 44.86 Hz
Vented
Enclosure Airspace = 1.2 ft
3
net
Vent = 3” diam. x 17.7” long
Fb = 28.3Hz F3 = 27.7 Hz
Subwoofers – SSW1201 Information
• Composite Cone Design
• Powder Coated Damped Aluminum Basket
• Rubber Surround
• Dual Conex Spider
• 4-Layer CCAW Voice Coil
• 3” Black Anodized ASV coil former
• Dual 4-Ohm Voice Coils
• Dual Strontium Ferrite Magnets
• Oversized tinsel leads
• Gold-Plated Push Type Terminals
• S.E.T. (Spider Exhaust Technology) cooling
• Bumped and Vented T-Yoke
• Injection-moulded rubber mounting gasket
• Custom Tooled Magnet Boot
Maximum Power Handling . . . . . . . . . . . . . . . . . . . . 2000W
Continuous Power . . . . . . . . . . . . . . . . . . . . . . . . . . .1000 W
Frequency Response . . . . . . . . . . . . . . . . . 15 Hz to 800 Hz
Woofer Cone Material . . . . . Glass Fiber with PMI foam core
Woofer Magnet . . . . . . . . . . . . . . . . . . . . . . .Strontium Ferrite
Woofer Basket. . . . . . . . . . . . . . . . . . . . . . . . Cast Aluminum
Woofer Surround . . . . . . . . . . . . . . . . . . . . . . . . Butyl Rubber
Max Peak Music Power 2,000 W
Max Power 1,000 W
Nominal Impedance 2 or 8 Ohms
Fs (Hz) 26.82
Qms 4.681
Vas (Ft3 / Litre) 1.478 / 41.84
Mms (grams) 270
Xmax (mm) 24
Sd (Sq. M) 0.0475
Qes S/P 0.578 / 0.581
Re S/P (ohms) 1.468 / 5.892
Le S/P (mH) 1.517 / 6.067
Bl S/P (Tm) 10.75 / 21.49
Qts 0.514 / 0.517
2.8 V SPL S/P (dB) 90.86 / 84.8
no S/P (%) 0.135 / 0.134
Vd (ft3 / Liter) 0.092 / 2.6
Mounting Depth (mm) 190
Outside Diameter (mm) 320
Cutout Diameter (mm) 282

Clarion SSW1001 Specifications
