2-5
Know your Tow Tractor

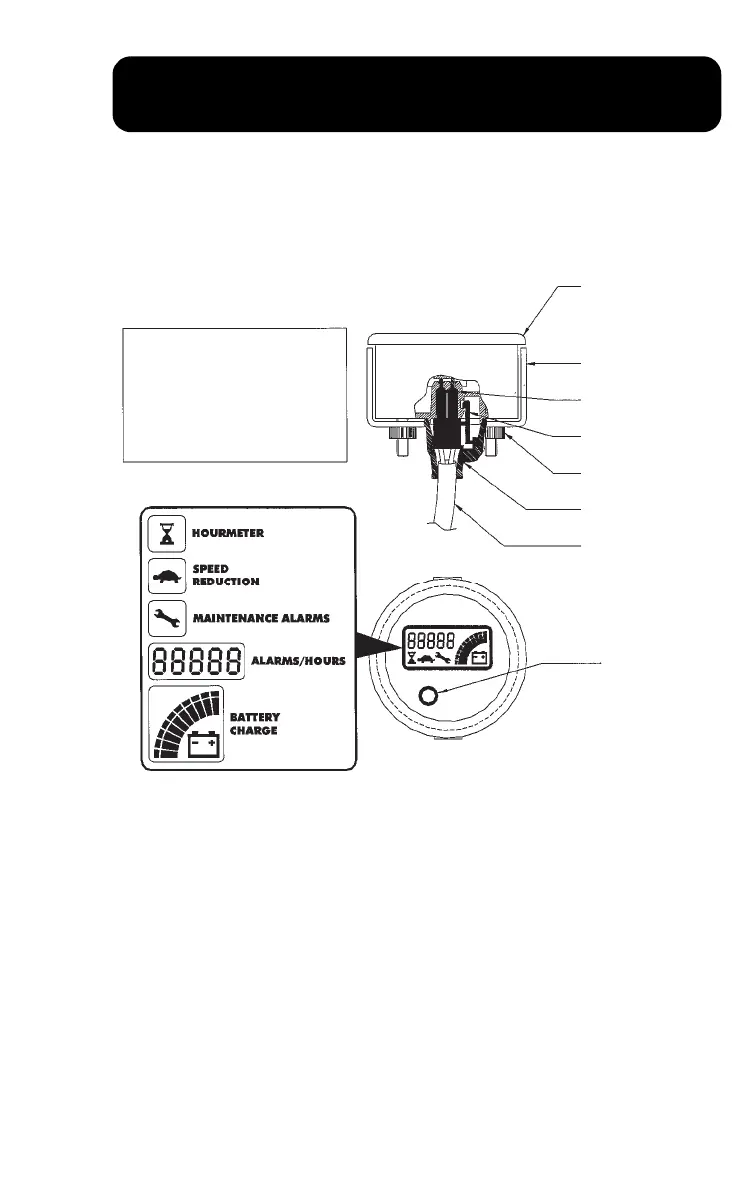

Installation
Connection scheme
DESCRIPTION 6 PIN CONNECTOR MDI CAN
(MALE CRIMP TERMALS)
POS.1 +12V
POS.2 GND
POS.3 CANL / NCLTXD
POS.4 CANH / PCLTXD
POS.5 CANT / PCLRXD
POS.6 CANHT / NCLRXD
PLASTIC CASE
FIXING BRACKET
GASKET CONNECTOR
MOLEX MINI CONNECT. 6 PIN
RECEPT. (5557), WITH FEMAL
CRIMP TERMINALS (5556).
FIXING BOLT
RUBBER CAP
MACHINE WIRING
ALARM
LED
