Page 33 of 49

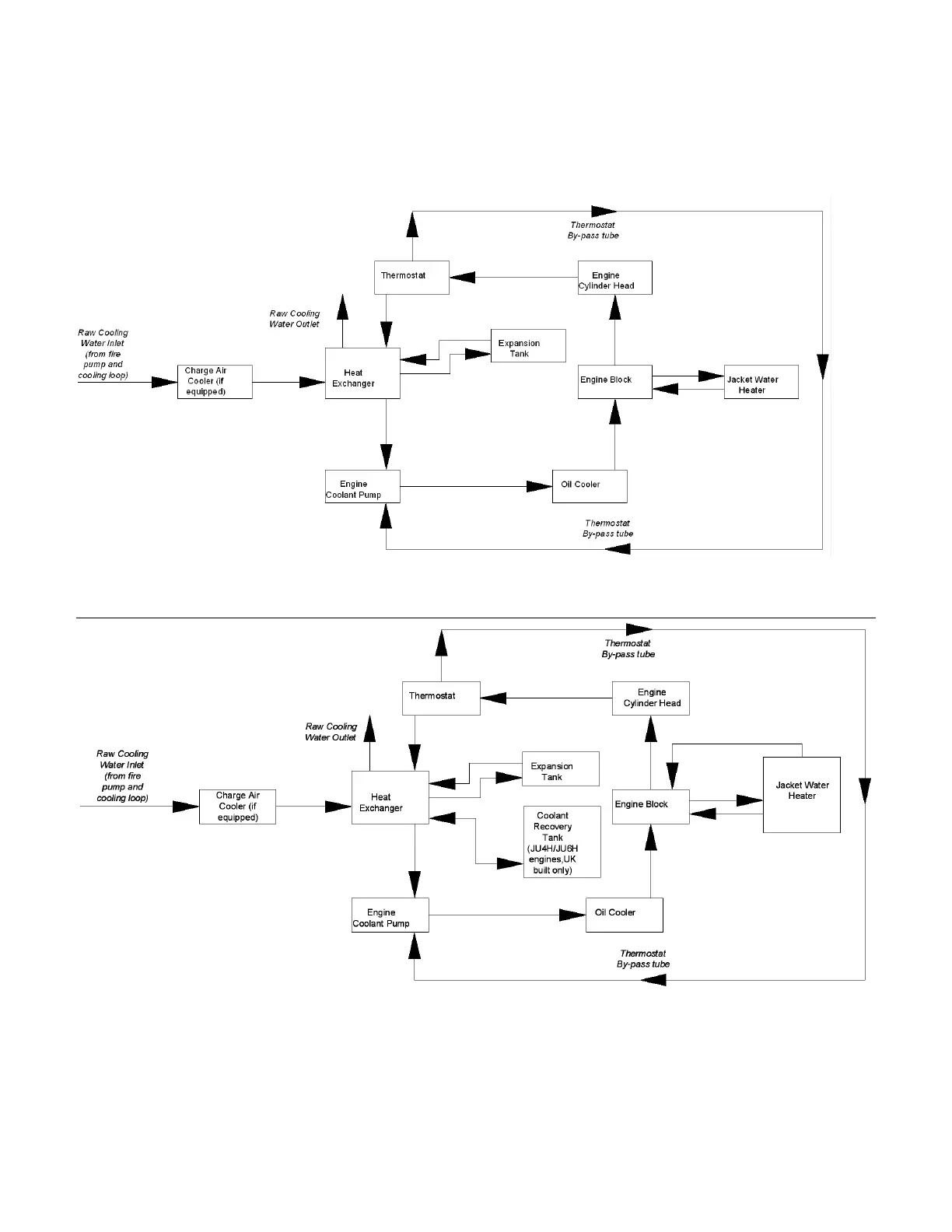

Refer to
Figures
#35E
for DP6H and DQ
6H engine
models and
#35F
fo
r DT2H engine m
odels for
cooling system
flow path diag
rams.
Figure #26A
–
DP6H &
DQ6H engine m
odels
Figure #26B
–
DR8H, DS0
H, DT2H-UFAA40, 58 en
gine models
32
34
Table of Contents
Table of Contents
2
Introduction
5
Identification/Nameplate
5
Safety/Caution/Warnings
6
Installation/Operation
10
Typical Installation
10
Engine Storage
11
Storage Less than 1 Year
11
Extended Storage Maintenance Procedure
11
Installation Instructions
11
Specific Flywheel Coupling Alignment Instructions
13
Listed Driveshaft
13
Driveshaft
13
Other Coupling Types
15
Starting/Stopping the Engine
15
To Start Engine
15
Optional Pneumatic Starting System
17
To Stop Engine
18
Emergency Stop Instructions
18
Weekly Test
18
Engine Systems
19
Fuel System
19
Diesel Fuel Specification
19
Bleeding the Fuel System
20
Changing Fuel Filter Cartridge
21
Fuel Filters
21
Fuel Tanks
22
Fuel Injection Pump Components
22
Priming Pump Strainer Cleaning
22
Air/Exhaust System
22
Ambient Conditions
22
Ventilation
22
Standard Air Cleaner
22
Crankcase Ventilation
24
Open Crankcase Ventilation
24
Crankcase Ventilation System
24
Exhaust System
25
Lubrication System
25
Checking Sump Oil
25
Changing Engine Oil
26
Changing Oil Filter Cartridge
26
Oil Specification
27
Oil Capacities
27
Cooling System
27
Intended Engine Operating Temperature
27
Engine Coolant
27
Water
28
Coolant Capacities
28
Coolant Inhibitors
28
Procedure for Filling Engine
29
Partial Fill
29
Providing Adequate Raw Water Supply to the Engine Heat Exchanger
29
Raw Water Supply
29
Cooling Loop
30
Setting Raw Water Flow Rate
31
Raw Water Outlet
31
Raw Water Quality, Strainers and Deterioration of Heat Exchanger (or CAC)
32
Backflow Preventers
32
Raw Water Outlet Temperature
32
Flow Paths of Engine Cooling System
32
Important Service Notice
34
Water Pump Cavitation
34
Electrical System
34
Wiring Diagrams
34
Checking Drive Belt Tension and Adjustment
35
Speed Switch
35
Magnetic Pick-Up
36
Mechanical Engine Control and Alarm Board (MECAB) Speed Switch Troubleshooting
36
Field Simulation of Pump Controller Alarms
38
Battery Requirements
39
Engine Speed Adjustment
39
Maintenance Schedule
40
Routine Maintenance
40
Trouble Shooting
41
Parts Information
41
Spares
41
Engine Maintenance Parts List
41
Owner Assistance
41
Warranty
41
General Warranty Statement
41
