Clarke Jumpstart 910 User Manual

- 4 -

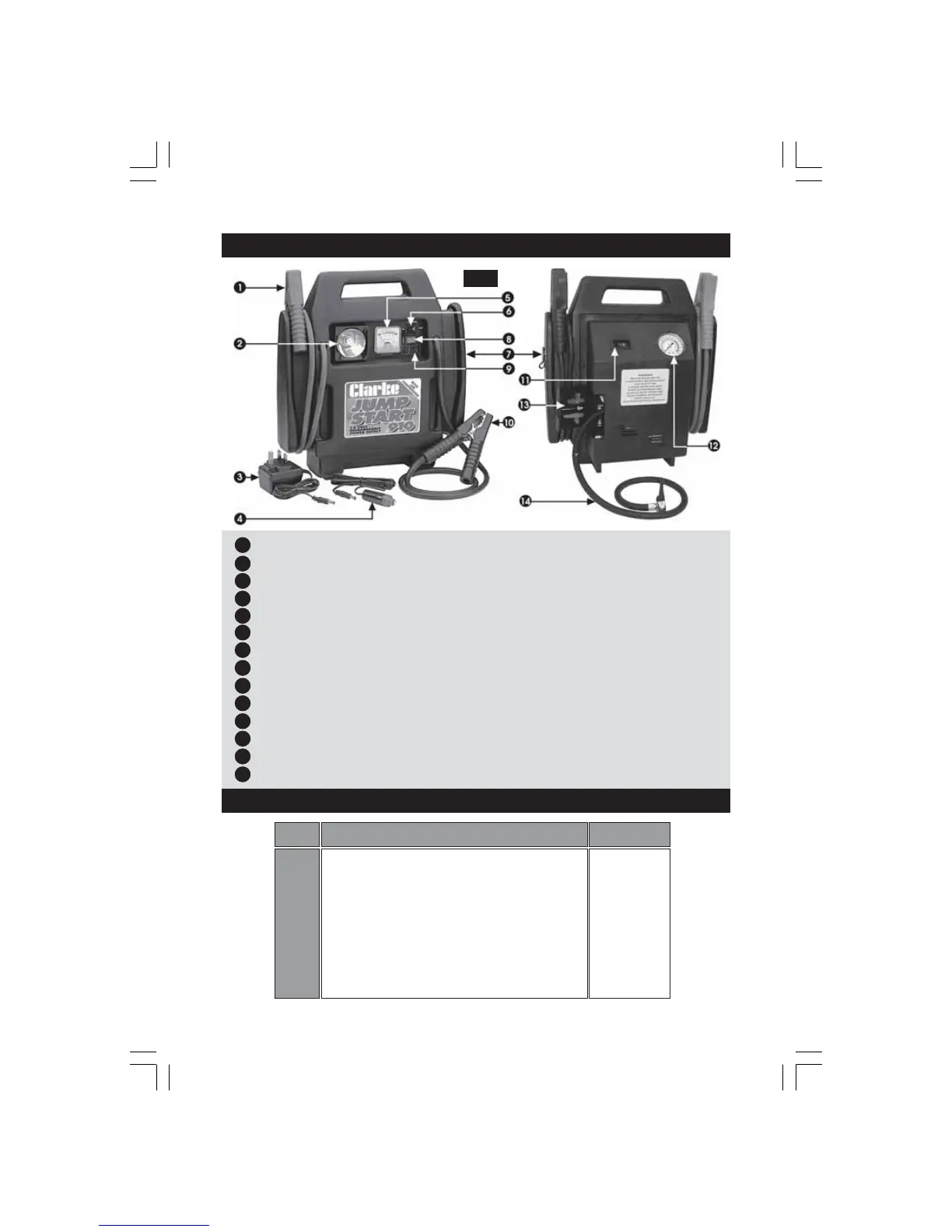

Fig. 1
1 Positive Battery Connection Lead to connect to the positive battery terminal
2 Lamp to provide light for roadside repairs or emergency situations
3 230/12V Transformer for charging internal battery pack
4 Cigarette Lighter Adaptor for charging internal battery pack
5 Volt Meter to indicate the state of charge of the internal battery
6 Lamp ON/OFF Switch switches the lamp ON or OFF
7 Cigar Lighter Socket for use with the cigar lighter adapter provided (Item 4)
8 Voltage Test Switch press to indicate the internal batteries power level
9 12 DC Socket connects the 230 Volt charger to allow mains charging
10 Negative Battery Connection Lead to connect to the negative battery terminal
11 Air Compressor ON/OFF switch
12 Air Pressure Gauge
13 Adapters
14 Air Hose
PARTS IDENTIFICATION
No. Description Part No.
1 Positive Battery Connection Lead HT90001
2 Lamp Bezel c/w lens HT90003
3 230V Battery Charger HT90006
4 Cigarette Lighter Adapter HT90007
10 Negative Battery Connection Lead HT90002
- Battery 12V 17AH HT90005
- Air Compressor c/w Air Gauge HT91001
13 Adapters (Set of three) HT91002
14 Air Hose w/connector and worm drive Clip HT91003
SPARE PARTS (Ref. Fig.1)

Clarke Jumpstart 910 Specifications

General

Brand	Clarke
Model	Jumpstart 910
Category	Remote Starter
Language	English
