Clas Ohlson MS6812 - Instructions for Use; Batteries; Finding Breaks in Robotic Lawnmower Boundary Wires

4
English
1. Sender
2. “CONT” LED indicator for continuity testing
3. “TONE” LED indicator for tone indication
4. [ CONT-OFF-TONE ] Function selection/off
5. 3.5 mm headphone socket
6. Loudspeaker
7. Receiver
8. Receiver activation button
9. On/off and sensitivity adjustment switch
10. Positive crocodileclip (red)
11. Negative crocodileclip (black)
Instructions foruse
Batteries
Sender
Open thebattery compartment on theback of thesender and insert
1×6LR61, 9 V battery.
Receiver
Unscrew theretaining screw and remove thebattery cover on theback of
thereceiver and insert 1×6LR61, 9 V battery.
Finding breaks in theboundary wires of robotic lawnmowers
Some robotic lawnmower systems have aguide wire to guide thelawnmower
to and from its charging station. Othersystems only have aboundarywire.

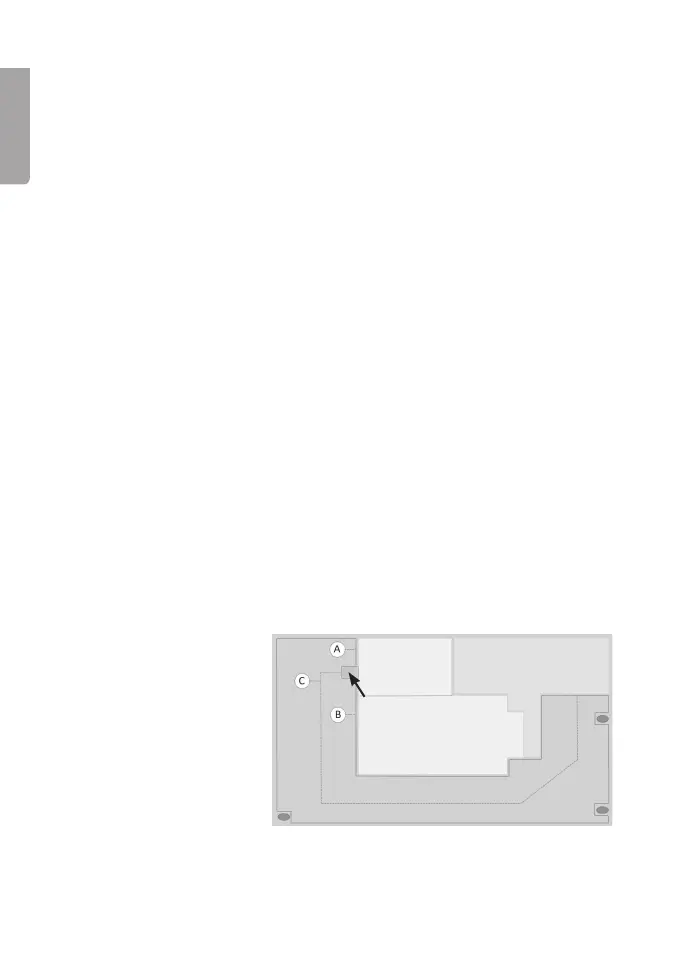

Inthis example, thesystem is equipped with aboundary wire and aguidewire.
A: boundary wire
B: boundarywire
C: guidewire
Charging station
Garage
Residence
Driveway
