Clas Ohlson MS6812 - Fault Finding on Systems with a Guide Wire

English
5

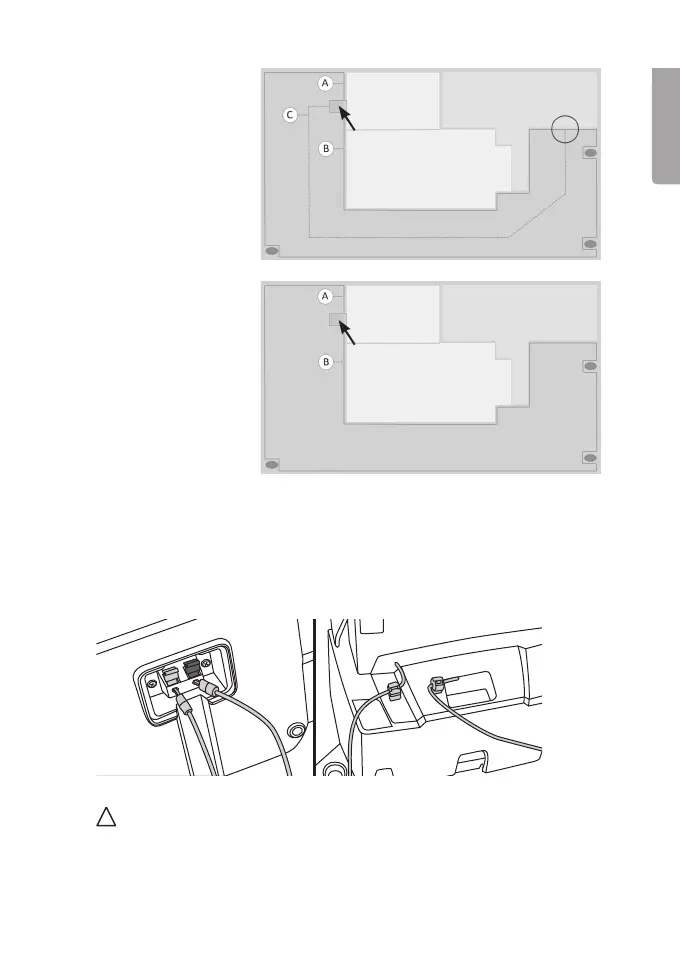

Note: Theboundary
wire is divided into
two sections (Aand
B) at thepoint where
theguide wire (C) is
connected toit.
In this example,
theboundary wire
system is not equipped
with aguidewire.
Fault finding on asystem with aguidewire
To find which section of theboundary wire/guide wire has afault in it, do as
follows:
1. First check that thecharging station is indicating anerror. Referto the
instruction manual for your robotic lawnmower system if you are unsure.
2. Disconnect thecables from theconnections on thecharging station.
Make anote of how thecables were connected. Somecharging
stations have connections where thecables are connected directly using
spring clamps. Othercharging stations use cable terminals.
Charging station
Garage
Residence
Driveway
Charging station
Garage
Residence
Driveway
