CLAS EQ 3000 - Installation and Setup; Installation Site Requirements; Machine Installation Procedure

Transportation: The load of the machine should be accordance with the indication on the outer package and x
rmly. No matter what kind of transportation, the environment temperature and humidity should comply with the
requirement of the storage requirement specied in term2.2. It is forbidden transport the machine together with the
dangerous chemicals, inammable and explosive materials or the objects easy to born the dust.
Installation

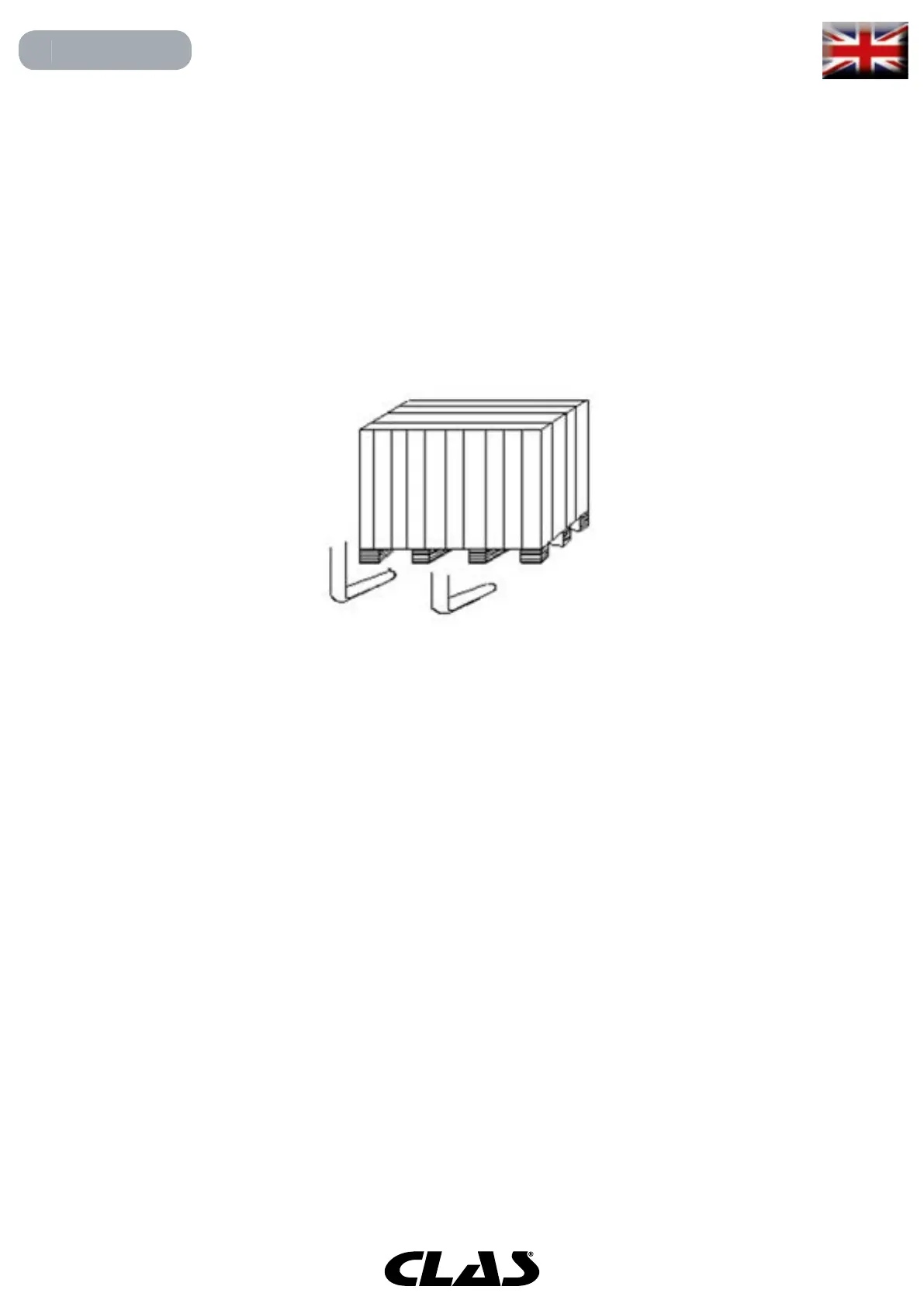

After conrming the package of the wheel balancer intact, you can carry the machine to the installation area as
shown in the Fig1
Environment requirement at the installation site: Temperature 0°-50°. RH≤85%, without water source, re source,
dust, inammable and explosive materials and the chemicals. The oor should be at and solid.
Before installation, detach the upper cover of the package box of the wheel balancer and conrm the machines,
accessories shipped together with the machine and the data you purchase according to the packing list. If you
have any question, you can contact with the dealers. The packing material such as plastic, polystyrene, nail, screw,
wood and the carton must be placed into a scrap box and handle according to the local law and regulation.
When install, detach the connect bolt between the wheel balancer and the pallet of the package box and move
the machine from the pallet to the installation position. To guarantee the safety and fast of the operation, there
should be the distance more than 300cm from the wall of the building to the right and rear of the machine. And
the distance of more than 200cm from the wall of the building to the left of the machine. After the wheel balancer
is moved to the proper position, drill 3 anchor holes on the ground according to the installation hole at the foot of
the machine and then use 3 pieces of M10X160 anchor screws to x the machine on the ground to guarantee the
stability and reliability of the machine.
If the machine is not packed, observe following precautions:
• PROTECT THE SHARP EDGES AT THE ENDS WITH SUITABLE MATERIAL (Bubble wrap or cardboard).
• DO NOT USE METAL WIRE ROPES FOR LIFTING BOARD.
• SLING WITH STRAPS OF AT LEAST 200 cm IN LENGHT AND WITH A HIGHER FLOW RATE OF 3000 kg.
• DO NOT FORCE ON SHAFT AND/OR FLANGE.
• ALWAYS UNPLUG THE POWER SUPPLY CABLE FROM THE SOCKET BEFORE MOVING THE MACHINE.
EQ 3000
AUTOMATIC WHEEL BALANCER 3D WITH LCD SCREEN
