Installing / Changing the
Carbon Filter.
Your Cooker Hood uses a
pair of CARBON FILTERS to
purify the air for the air
recirculation function.
You will find that the filters
will attach to both sides of
the fan motor (please see
figures at bottom of page).
The active carbon filters must
be replaced regularly, at least
once every three months,
to allow normal operation.
Before starting to fit the carbon
filter, turn the omni-polar
switch off at the wall.

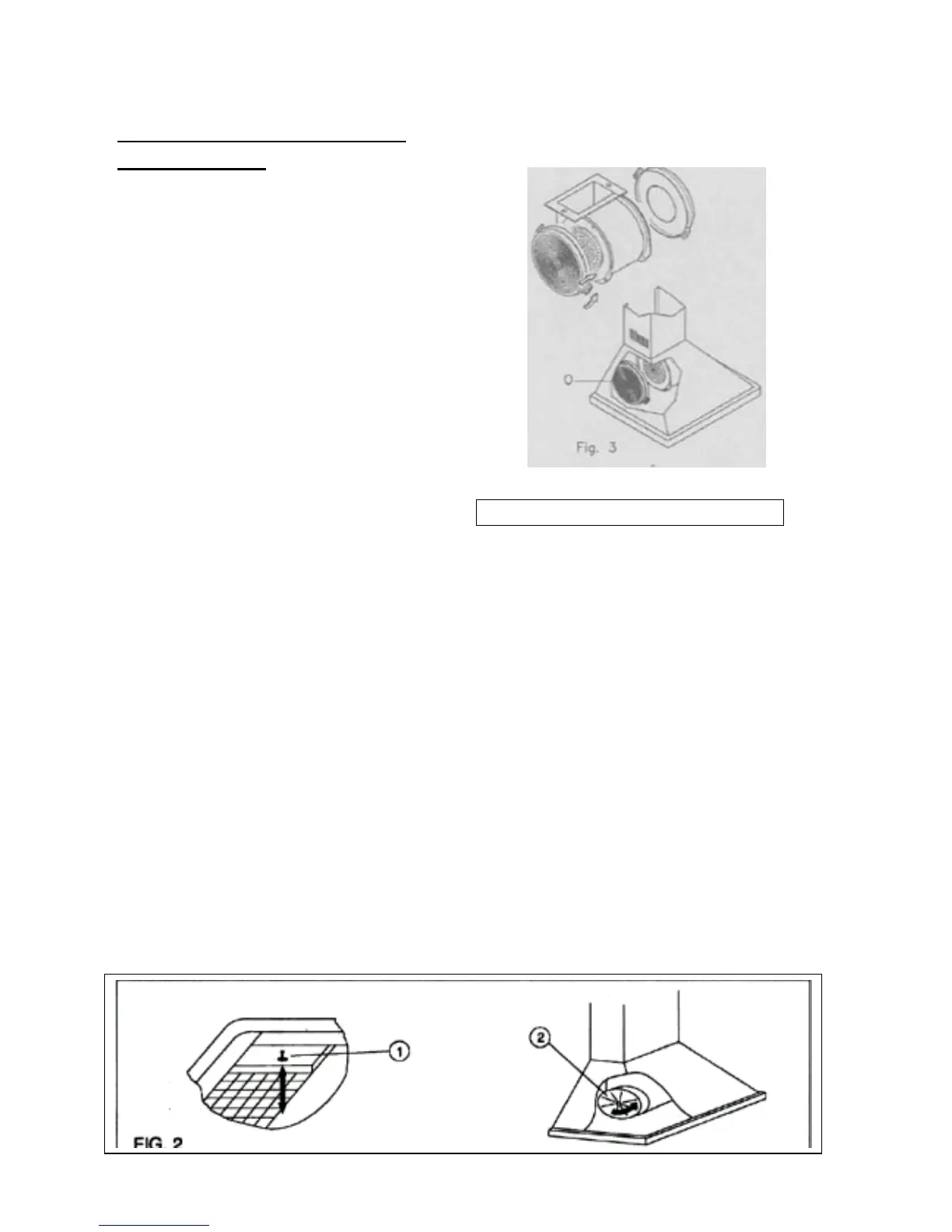

CHANGING THE CARBON FILTER
1）Press the handle of the metal grease
filter towards the rear part of the unit
until it is released from the front housing,
and remove it by pressing downwards (Fig.
2 - above).
2）Remove the old carbon filters by
twisting them anticlockwise until they
unlatch from the sides of the motor.
3）Place the new carbon filters (which
have two fixing tongues), turning
clockwise so that the tongues latch onto
the motor’s sides. (Fig. 3 - left).
4） Reposition the anti-grease metallic
filter grills.
