KITCHEN UNIT / UNDERSIDE OF CABINET INSTALLATION
NOTE: Ensure that the grease filter grill has been removed.
1) (E) – Extraction Function only If you
are using the top exhaust outlet
(meaning that you have plugged the
rear one), first cut a hole measuring
130mm in diameter in the floor of the
cupboard into which the hood will be
set (see Fig. 2, bottom centre of page)
so that the collar strip can be fastened.
2) If necessary, make a hole for the power
cable to feed th
rou
gh.
3) Hold the hood against the underside of
the hood and mark the points for the
supporting and fast
ening
holes.

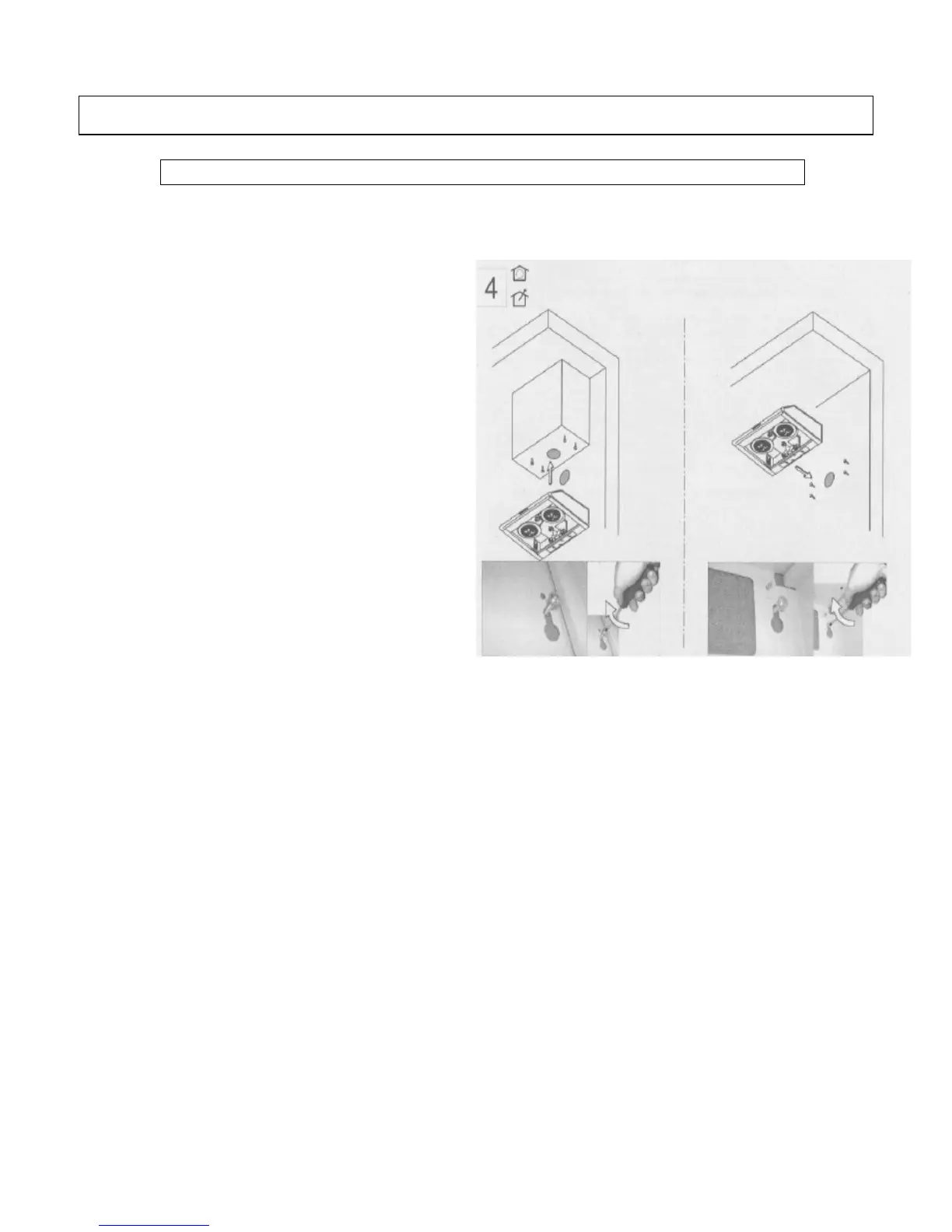

4) Screw in the four screws supplied with
the installation
acce
ssory kit.
5) Hook the hood onto the supporting
screws and tighten them completely
(Fig. 4 – on righ
t)
. Alternatively, use
the attachment holes near the previous
ones.
__________________________
6) Close the grease filter grill.
:
We recommend that at least
two people install this hood.
NOTE: Your Cooker Hood should only be fitted on a wall. Do
NOT position it any less than 750 mm (75 cm) above the hob.
7) Remove the metal anti-grease filters
(See figure at right).
INSTALLATION INSTRUCTIONS – installing your Cooker Hood
