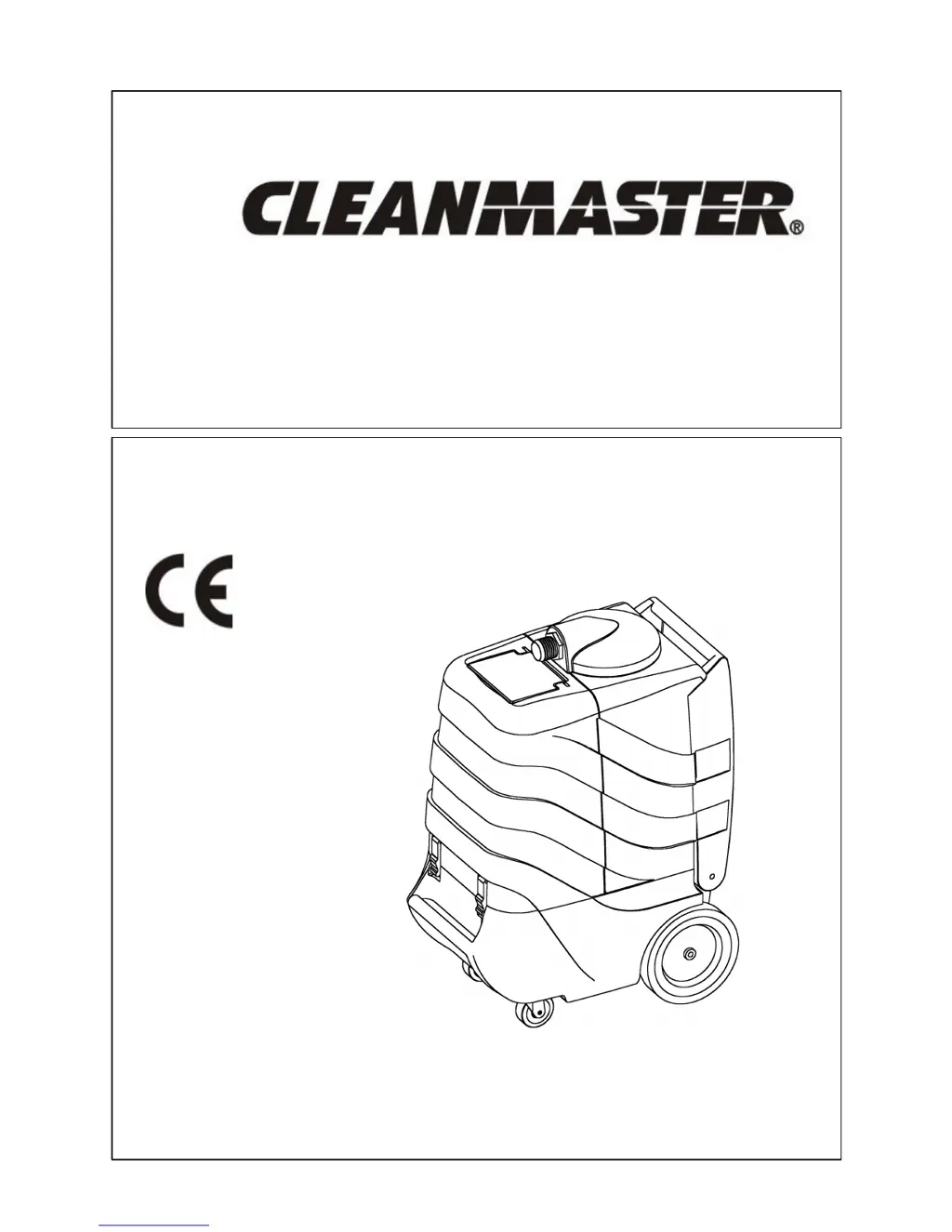

MNL36456-E3H-CE
Rev. 00 (04-01)
Raptor 230H
Carpet And Upholstery Cleaner
Model No.:
100-652-230
11 gal Extractor
CLEANMASTER
11015 47
TH
AVENUE WEST
MUKILTEO WA 98275 U.S.A.
FAX: 1-800-426-4225
WEBSITE: www.cleanmaster.com
CUSTOMER SERVICE: 1-425-775-7276
Operator and Parts Manual

Table of Contents

Questions and Answers

  • J
    johnmurrayAug 1, 2025
    What to do if Clean master Floor Machine has poor solution pick-up?
    • G
      gmeyersAug 1, 2025
      If the Clean master Floor Machine isn't picking up the solution well, make sure the recovery tank drain valve is closed. A defective recovery tank lid gasket can also cause this, so replace it if needed. Check the float shut-off screen for clogs and clean it by removing the recovery tank lid. Ensure vacuum hose connections are secure by checking the cuffs, and replace the hose if it's defective.
  • D
    David JohnsonAug 9, 2025
    Why my Clean master Floor Machine does not operate?
    • R
      Robert SmithAug 9, 2025
      If the Clean master Floor Machine does not operate, first check if the building circuit breaker has tripped and reset it if necessary. If the issue persists, it might be due to faulty switches, wiring, or a faulty power cord, in which case you should contact the Service Center.
  • S
    Sean StokesAug 17, 2025
    How to fix uneven or no spray from Clean master Floor Machine?
    • D
      David FordAug 17, 2025
      If the Clean master Floor Machine has uneven or no spray, start by cleaning or replacing the spray tips, as they might be plugged. Also, ensure that the spray tips are the correct size and angle; replace them if they are not. Check the solution tank and refill it if it's low or empty. If these steps don't resolve the issue, the solution pump may be faulty, and you should contact the Service Center.
  • T
    Tammy OconnorAug 25, 2025
    Why Solution pump does not operate on Clean master Floor Machine?
    • M
      Michael OwenAug 25, 2025
      If the solution pump on your Clean master Floor Machine isn't working, ensure the trigger on the wand is pulled and that the quick couplers are fully engaged. If the problem persists, it may be due to faulty switches or wiring, a faulty solution pump motor, or a faulty pump head. In any of these cases, contact the Service Center.

Summary

OPERATION

MACHINE DATA

Section for recording machine installation details for future reference.

SAFETY PRECAUTIONS

Essential safety guidelines and warnings for operating the machine.

GROUNDING INSTRUCTIONS

Procedures for proper electrical grounding to prevent shock hazards.

MACHINE COMPONENTS

Illustrated list identifying all parts of the machine.

MACHINE SETUP

Step-by-step guide to prepare the machine for use.

MACHINE OPERATION

Instructions for operating the machine including wand use.

PRE-OPERATION AND HEATING

Steps to perform before starting the cleaning process.

CLEANING CARPETS

Specific instructions for the carpet cleaning function.

WHILE OPERATING

Important considerations and tips during machine use.

CLEANING WITH ACCESSORY TOOLS

Guidance on connecting and using additional tools.

DRAINING TANKS

Procedures for emptying the solution and recovery tanks.

FREEZE PROTECTION

Steps to prevent damage from freezing temperatures.

MACHINE MAINTENANCE

Daily, weekly, and monthly maintenance procedures.

STORING MACHINE

Guidelines for proper long-term storage of the machine.

RECOMMENDED STOCK ITEMS

List of recommended spare parts for purchase.

TROUBLE SHOOTING

Common problems, causes, and solutions for troubleshooting.

SPECIFICATIONS

Technical specifications and performance data of the machine.

MACHINE DIMENSIONS

Physical measurements of the machine.

ELECTRICAL DIAGRAM

Wiring schematic of the machine's electrical system.

PARTS LIST

TANK GROUP

Illustrated breakdown of parts for the tank assembly.

BASE GROUP

Illustrated breakdown of parts for the machine's base.

PUMP 300 PSI BREAKDOWN

Detailed diagram and parts for the pump assembly.

OPTIONS

Floor Tool Assembly

Components and assembly of the floor cleaning tool.

Floor Tool Parts List

Detailed parts breakdown for the floor tool.

Hand Tool Assembly

Components and assembly of the hand cleaning tool.

WARRANTY POLICY

Parts Only Standard Replacement Policy

Details the warranty terms for replacement parts.

How to Obtain a Return Authorization

Steps to follow for returning parts for warranty service.

Terms and Conditions

General terms, limitations, and exclusions of the warranty.

Warranty Registration

Instructions and form for registering the warranty.

Clean master Raptor 230H Specifications

General IconGeneral
BrandClean master
ModelRaptor 230H
CategoryFloor Machine
LanguageEnglish
