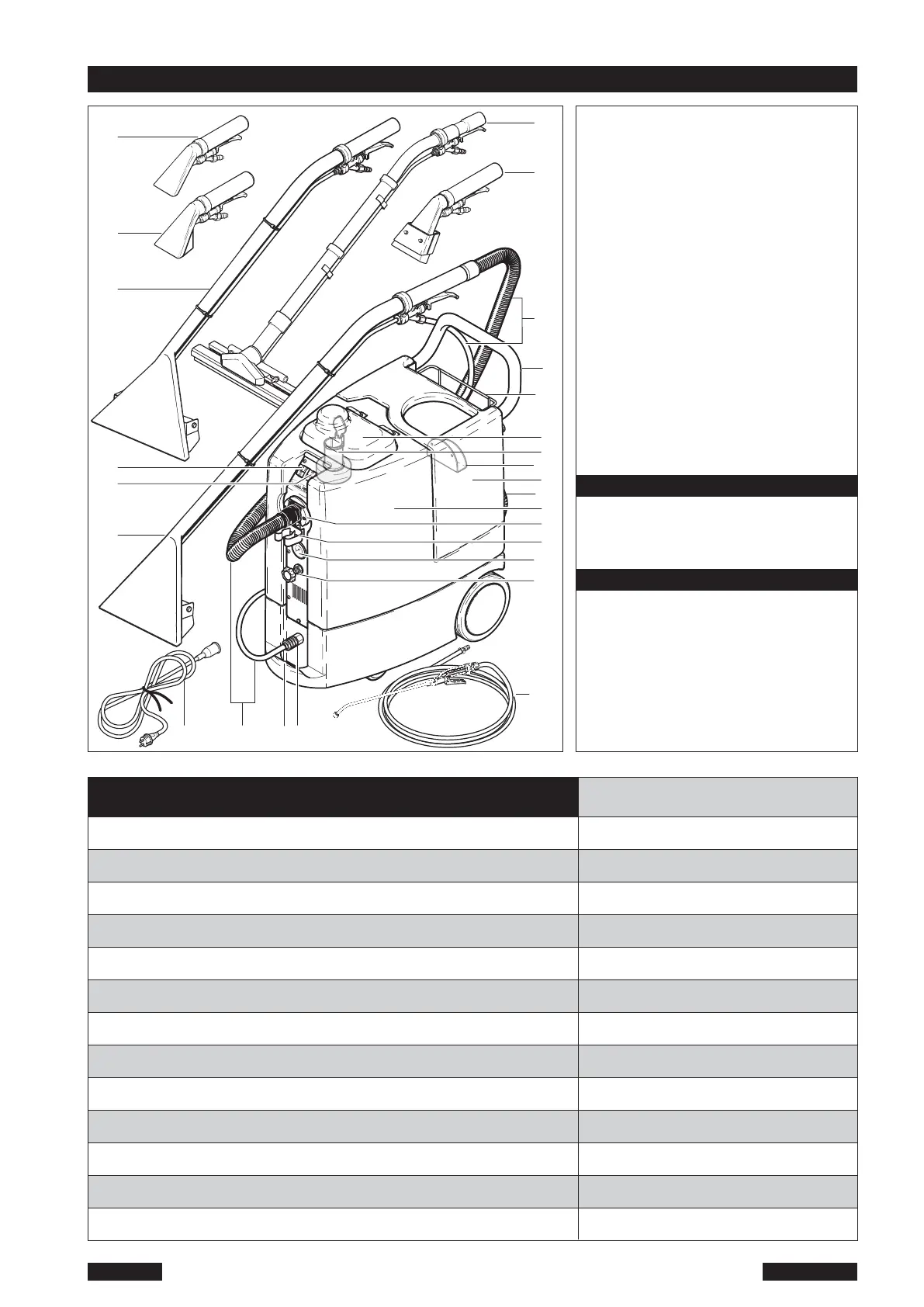

Cleanfix TW 1250 - Page 9

1 Machine body/ Clean water tank
2 Waste water tank
3 Waste water tank cover
4 Floater with lid
5 Quick connector for spraying hose
6 Connector for vacuuming hose
7 Shock yoke
8 Clip for adapter fitting
9 Transportation lever - supporting
yoke for adapter
10 Switch for vacuum motor
11 Switch for pump
12 Power cable VDE 20 m, 3 x 1 mm²
12 Power cable SEV 20 m, 3 x 1 mm²
13 Holder for cable
14 Materials basket
15 Manometer
16 Pressure control valve
17 Waster water hose
Standard Accessories
18 Vacuum and spray hose HP 4m
19 Carpet adapter, 4 jet 30 cm, alu
high pressure
Optional Accessories
20 Carpet adapter, 5 jet nozzles Alu
HD, 40 cm
21 Hard floor adapter, 37 cm
22 Upholstery tool 9 cm, PVC
23 Upholstery tool 9 cm, Alu
24 Wall and ceiling tool 10 cm
25 Spray nozzle with hose 10 m
-- Filling up hose, 2 m
11
10
19
20
22
18
7
14
1
3
17
6
25
4
2
8
15
16
518
Machine description TW 1250
Technical specifications TW 1250
Total power
Vacuum
Fresh water capacity
Dirty water capacity
Pump pressure max.
Spray rate
Number of spray nozzles
Airflow capacity
Cable length
Weight
Measurements l / w / h
Maximum temperature detergents
Sound pressure level
1700 W / 230 V
250 mbar
35 litres
40 litres
2-11 bar
bis 3,6 l/min.
4 / 5
60 l/sec
20 m
39 kg
82 x 41 x 84 cm
50° C
76 dB (A)
23
Englisch 7
TW 1250
13
9
24
21
12
