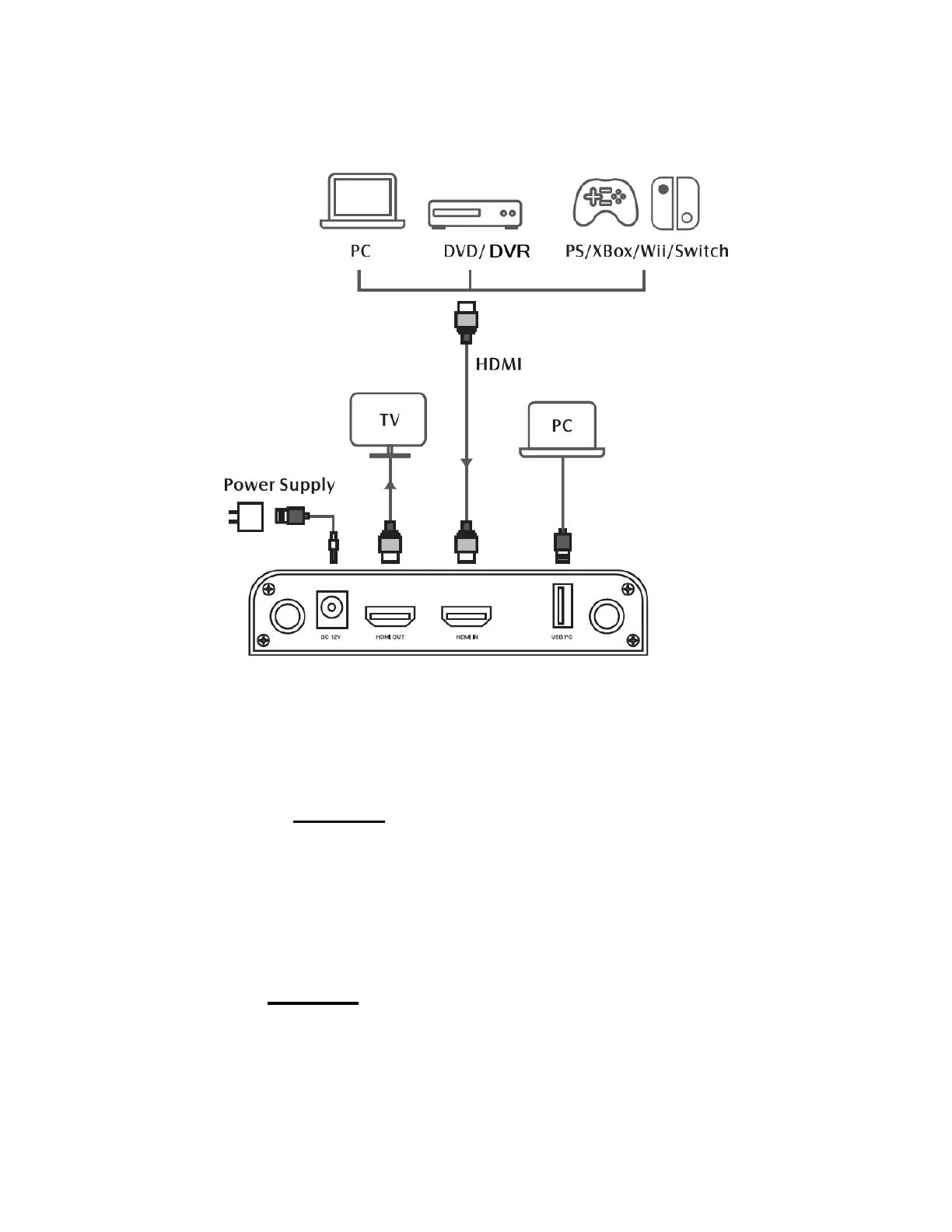

Transmitter (TX) Back Diagram
1. Antenna Sockets: Screw in & connect the included antennas.
2. DC 12V: Connect the included power adapter.
3. HDMI OUT (Optional): Your HDMI source can be passed through
to a TV or monitor via a physical HDMI wire connection.
4. HDMI IN: Using an HDMI cable, connect the video source (i.e.
DVD player, DVR, gaming system, or PC/Mac) that you would like
to start broadcasting video wirelessly from.
5. USB PC (Optional): Connect the included USB cable to your
PC/Mac. If a keyboard/mouse is connected to the receiver (RX),
this signal will be transmitted wirelessly and sent to your computer
via the “USB PC” port on the transmitter (TX).
