ClearCom FreeSpeak II - Page 2

FreeSpeak II Splitter
FreeSpeak II Wireless Solutions
Connections
Transceiver Antenna: 5 Ethercon RJ45, each with yellow LED indicators on
front and back
Matrix: 1 Ethercon RJ45, with yellow LED indicator on front and back
Fiber: 1 SFP port
Power
Splitter: Requires external power supply (included)
Transceiver Antenna: Provides power to antennas via RJ45 connections
Mounting Options
Wall Mount with 4 mounting points
Mic Stand Mount (metric and imperial threads)
Environmental
IP63 water resistance for outdoor use
+32° to +122°F
(0° to +50°C)
Dimensions
1.65 x 8.75 x 7.73in (HxWxD)
(42 x 223 x 197mm)
Weight
24.5oz (0.69kg)
Technical Specications

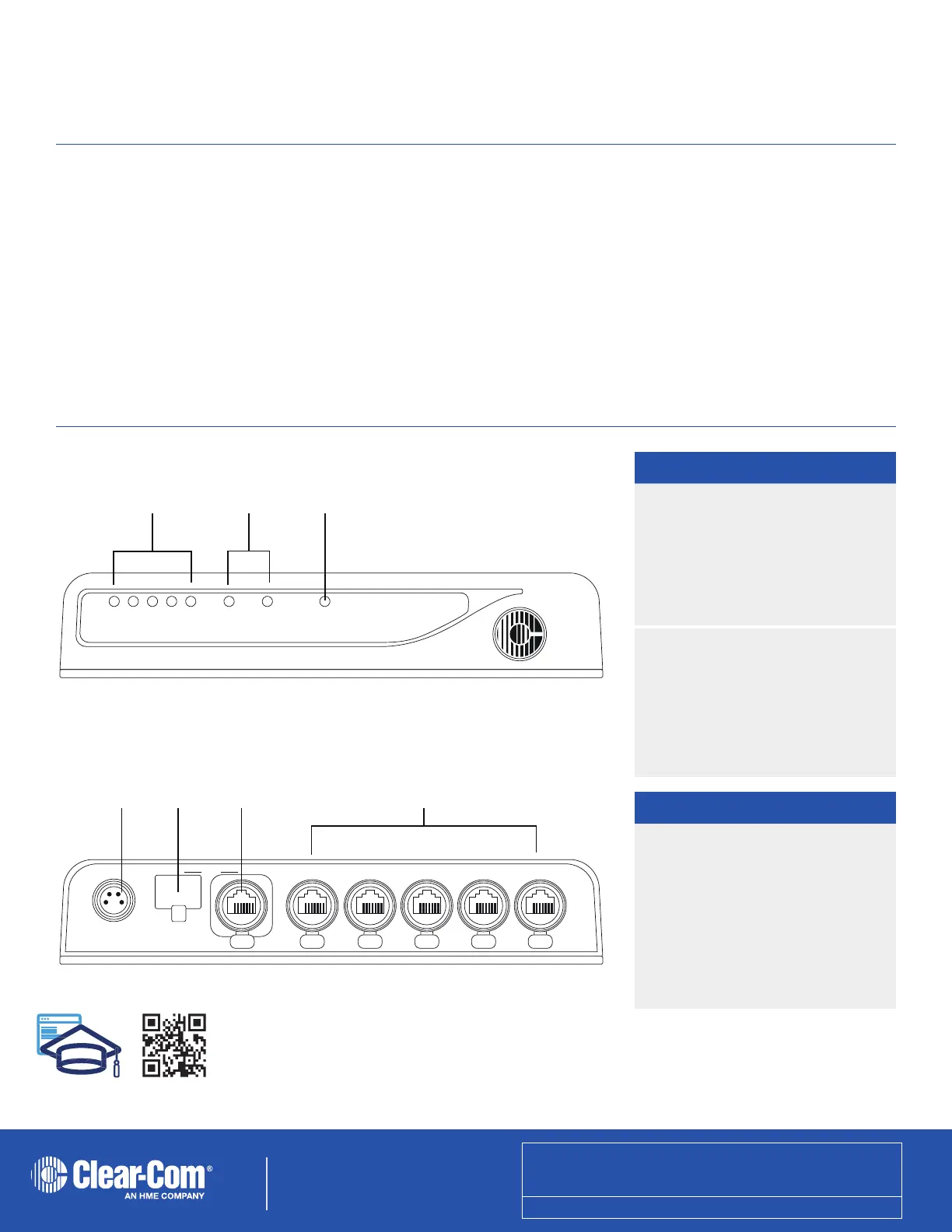

Front Panel
1
7
2 3
4 5 6
Legend
Front Panel
1. Antenna connection LED’s
2. Connection type LED’s
(RJ-45/Fiber)
3. Power LED
Back Panel
4. DC Power In
5. Fiber connector to Base/Splitter
6. RJ-45 connector to Base/Splitter
7. Antenna connectors
Back Panel
Order Codes
FSII-SPL: FreeSpeak II Splitter
Optional components for Splitter:
HLI-MMFO: Multi-mode ber SFP
transceiver
HLI-SMFO: Single-mode ber SFP
transceiver
1 2 3 4 5 Copper
Antenna Connecon Basenna Connecon
Fiber Power
FreeSpeak II
®
DC In Base 1 2
3
4 5
FreeSpeak II
®
PUSHPUSHPUSHPUSHPUSH PUSH
1 2 3 4 5 Copper
Antenna Connecon Basenna Connecon
Fiber Power
FreeSpeak II
®
DC In Base 1 2
3
4 5
FreeSpeak II
®
PUSHPUSHPUSHPUSHPUSH PUSH
Notice About Specications | While Clear-Com makes every attempt to maintain the
accuracy of the information contained in its product manuals, that information is subject to change without
notice. Performance specications included in this manual are design-center specications and are included
for customer guidance and to facilitate system installation. Actual operating performance may vary.
