KB-212 Speaker Station Clear-Com Intercom Systems
Rev. B
14
© Clear-Com Intercom Systems 2000
Button RECT. MINIATURE BUTTON, BLACK 240082 S3
Lens LENS, YELLOW, ROUND FOR T1 3/4 240099 D3
Speaker 2 1/2 IN. SPKR 8 OHM 3.5W 500103
Panel Mic ELECTRET MIC ELEMENT W/PINS 500132
Switch DPDT P.B. MINIATURE W/LONG PLUNGER 510107 S2 S3
Switch DIP SWITCH PIANO 3 POS 510114 S1
RUBBER MIC MOUNT 640027

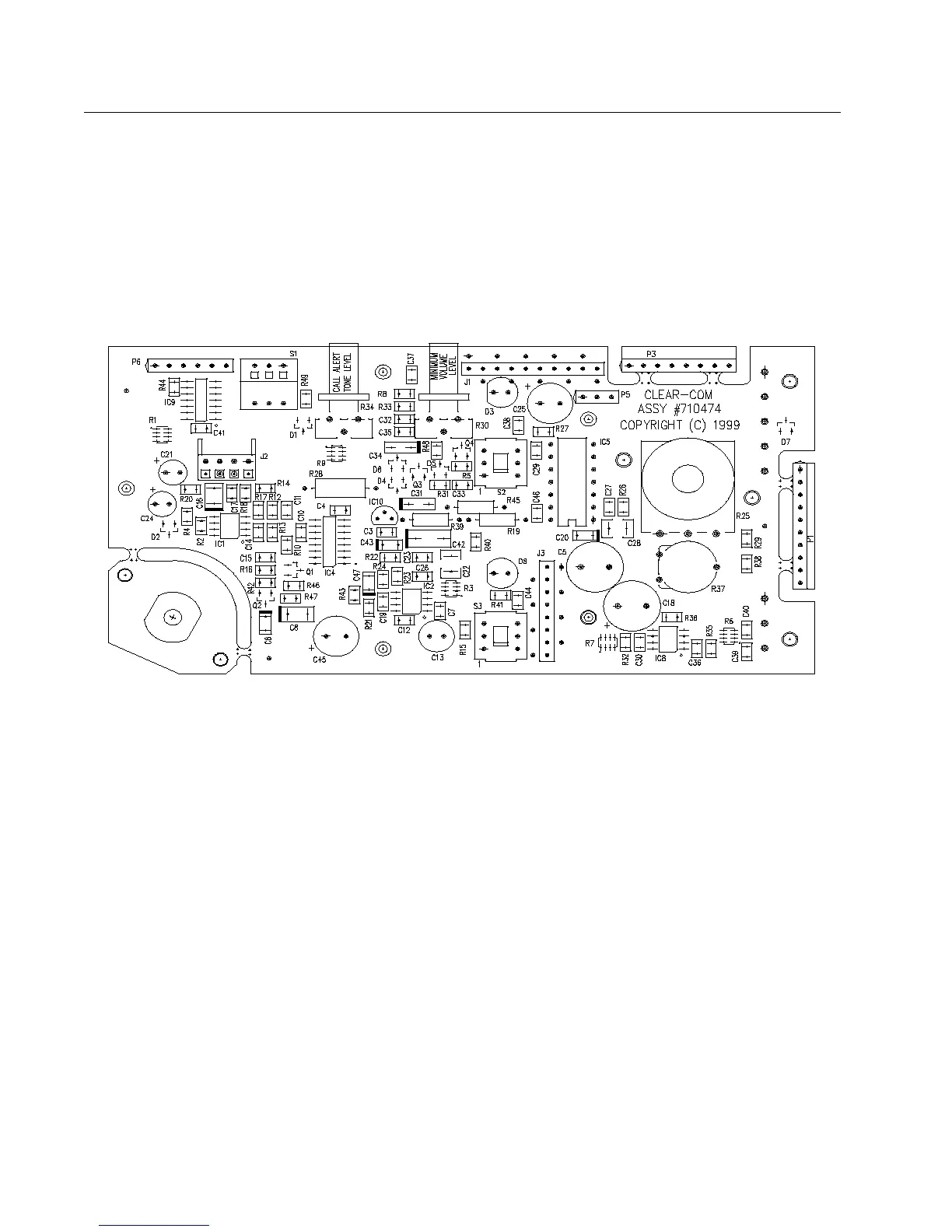

FIGURE 6: Main PCB Component Layout
