KB-212 Speaker Station Clear-Com Intercom Systems
Rev. B
8
© Clear-Com Intercom Systems 2000

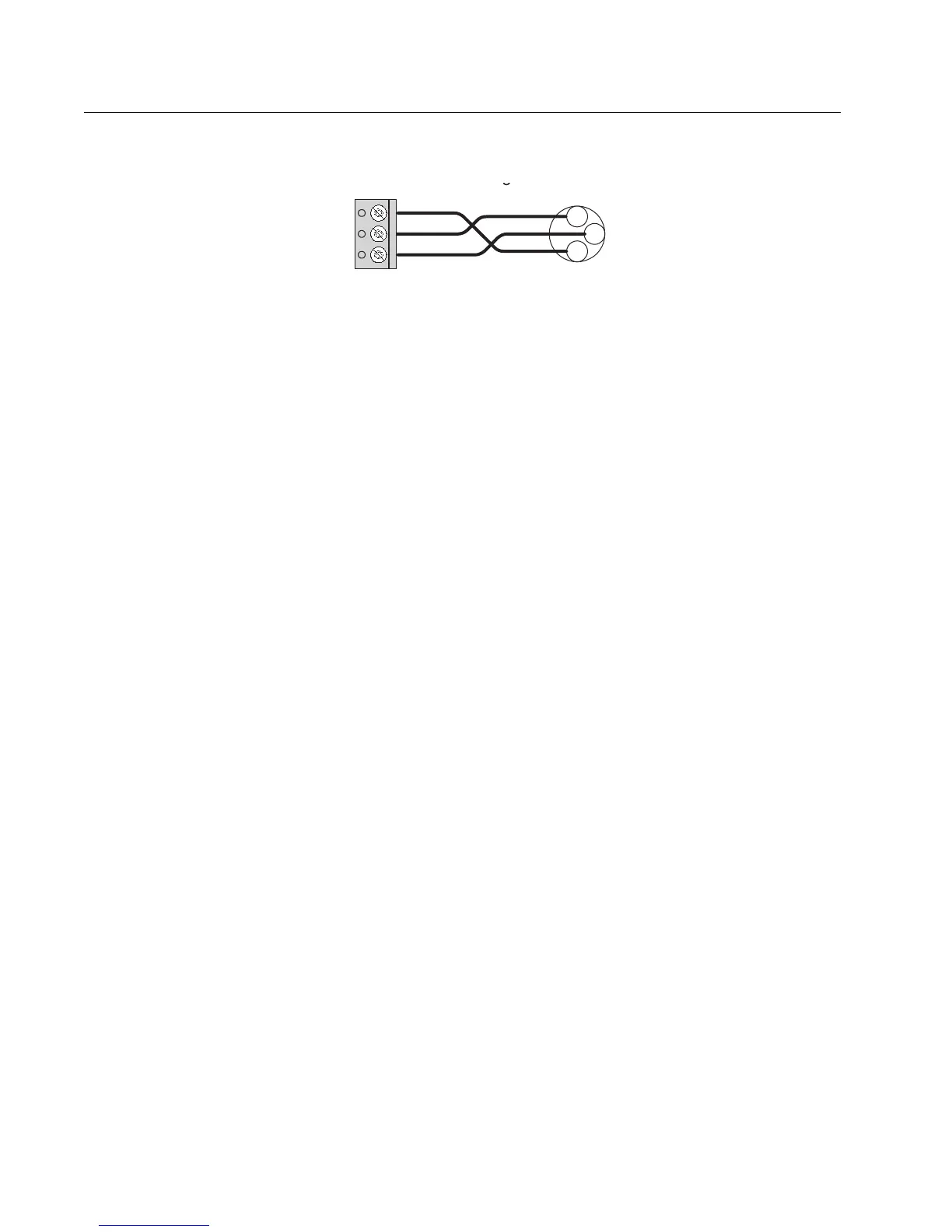

FIGURE 4: Program Input Connector Wiring
14—Option Board Jumpers
The two jumper plugs P1 and P3 must be installed when optional modules are
not used. When the optional EB-4W or EB-TW Modules are used, both P1
and P3 must be removed. Save these jumper plugs for possible future use.
Note:
The KB-212 will not operate without either the jumper plugs or the
optional modules installed.
2
3
1
g
KB-212 Program
Input Connector
XLR
Connector
Pin 1
