Assembly Instructions Cont’d

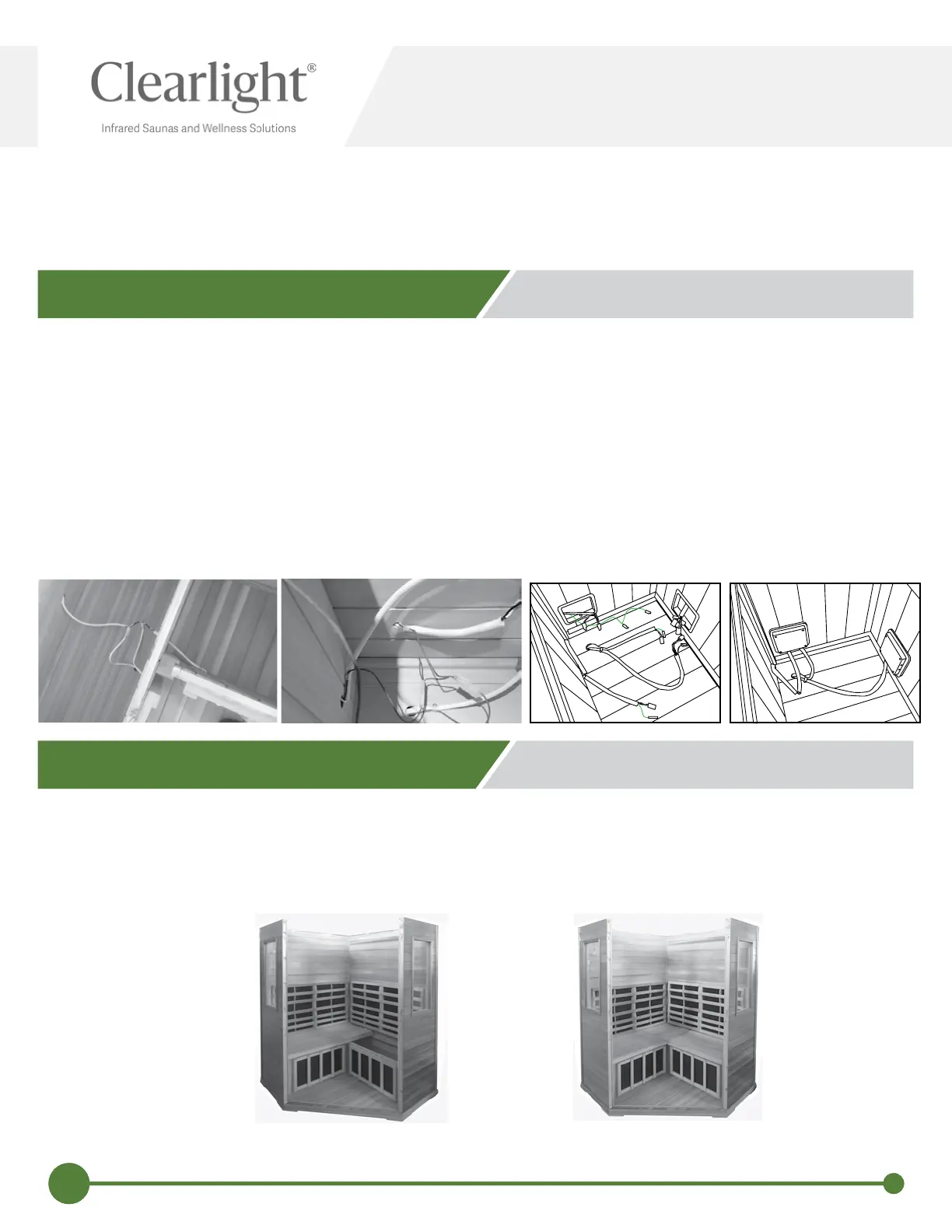

7 - CONNECT HEATER CONNECTION UNDER BENCH
8 - INSTALLING BENCH
Follow the connections as in the photo below.
1. Pass the cable from the right bench support through the hole in the le bench support.
2. Connect the cable from the right bench support to one of the connectors from the le bench support.
3. Connect the cable from the le bench support and coming out of the oor to the connector coming out
of the back wall.
4. Keep in mind, there is no incorrect way to connect these connectors as long as you connect the male
two wire connectors to the female two wire connectors and the male single green wire connectors to the
female single green single connectors.
Install the three bench pieces in the following order:
1. Install the long bench against the le side back wall by placing the bench on the Bench Support Panel and slide it
ush to the back wall.
2. Install the short bench against the right side back wall by placing the bench on the Bench Support Panel and slide
it ush to the back wall.
Left Bench Installed
Right Bench Installed
